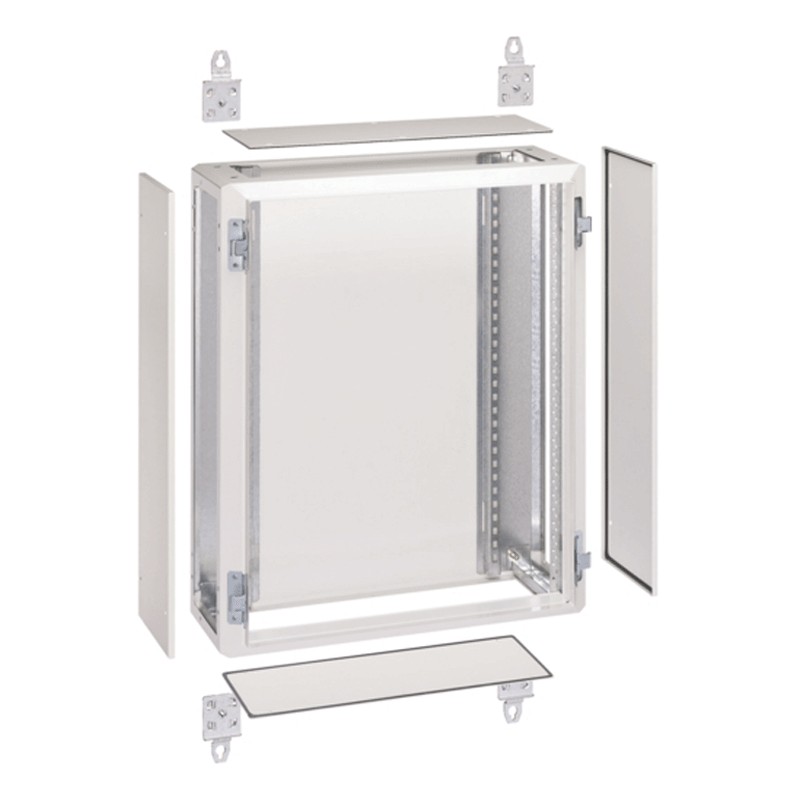

Hager Quadro 5 wall-mounted switchboard 810x685x260mm IP55 FM202
HAG FM202
3250612632022
Hager Quadro 5 switchboard, wall-mounted dimensions 810x685x260mm, IP55 degree of protection.
€238.28
Items Available: 4
: 1
Hager quadro 5 IP55 switch boards and enclosures allow the installation of modular equipment and molded case circuit breakers up to 630A in all civil and tertiary environments. The range includes one-piece, modular, side-by-side and stackable switchboards and cabinets from 72 to 432 DIN modules composed of one-piece structure with open sides , closed back, cable entry plates, plinth (cabinets) to be completed with side panels and blind or transparent doors color RAL 9010. Main advantages are complete accessibility on all 4 sides, cabinets with double depth 260 and 400mm, built-in or side-by-side cable/bar compartment, real use up to 630A thanks to 400mm deep cabinets, easy and quick assembly, single kit internal system for all series, elegant and personal design. Use is suitable for short-circuit currents up to 35kA.
Features:
- Mounting mode Pedestal (underground mounting)
- Not Suitable for lightning protection
- Rated current in A 630 A
- Material thickness cover 2mm
- Cover type Blind door
- Single door leave
- Cover type Door
- Transparent cover or door no
- Pure white color
- White color
- RAL color White RAL 9010
- Steel material
- Powder coated surface treatment
- Recessed depth 260 mm
- Installed product depth 260 mm
- Inside depth 260 mm
- Height of installed product 810 mm
- Width of installed product 700 mm
- Width in units of division 24
- Thickness of side wall material 2 mm
- Not Suitable for outdoor use
- Mounting plate not included
- With lock
- Quantity of rows in the enclosure 5
- Quantity of section in width 2
- Number of flanged sides 2
- Removable yes
- Degree of impact resistance IK10
- Degree of protection of the enclosure IP55
There are no reviews
Data sheet
- Type: Switchboards
- Degree of protection: IP55
- Model: Without door
- Installation: Wall-mounted
