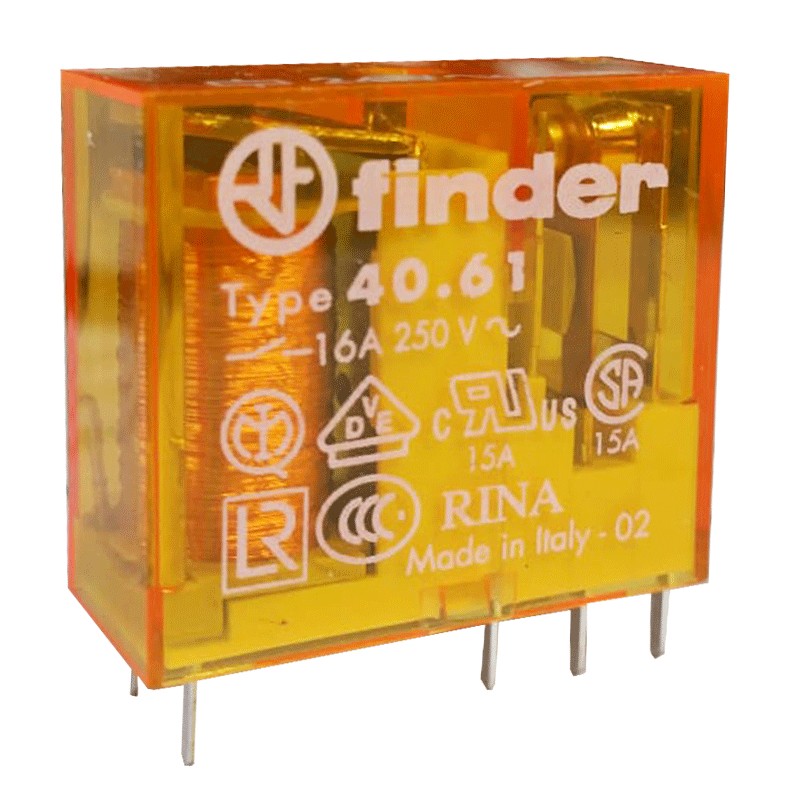

Mini Relay Finder 1 exchange 16A 24VAC alternating coil 406180240000PAC
FIN 406180240000PAC
8012823243306
Mini relay for printed circuit and plug-in Finder, with the following features:
- Coil voltage 24V AC (50/60Hz) (alternating current)
- Supply voltage 250V
- Rated current 16A
- 1 exchange
- 5 mm pitch
- Standard contact material: AgCdO
Compatible sockets: 9505SMA, 9505SPA.
€6.30
Items Available: 15
: 12
Frequently bought together
40 series Mini relay for printed circuit board and plug-in DC coils, 500, or 650 mW, and AC pin Length 5.3 mm, 8 mm, 6 kV (1.2/50 μs) insulation between coil and contacts Mini relay for printed circuit DC coils, 500, or 650 mW, pin Length 3.5 mm or 5.3 mm, 8 mm, 6 kV (1.2/50 μs) insulation between coil and contacts test of flux: RT II standard, (available version RT III)
tutto ok il prodotto e arrivato puntuale celere il servizio
Come da specifiche tecniche del produttore
perfetto tutto ok installato e funziona perfettamente
Data sheet
- Type: PCB Relays
- Installation: On sockets
Plug-in
