Vortice Ceiling fan Nordik Evolution R 120/48 61751


VOR 0000061751 8010300617510

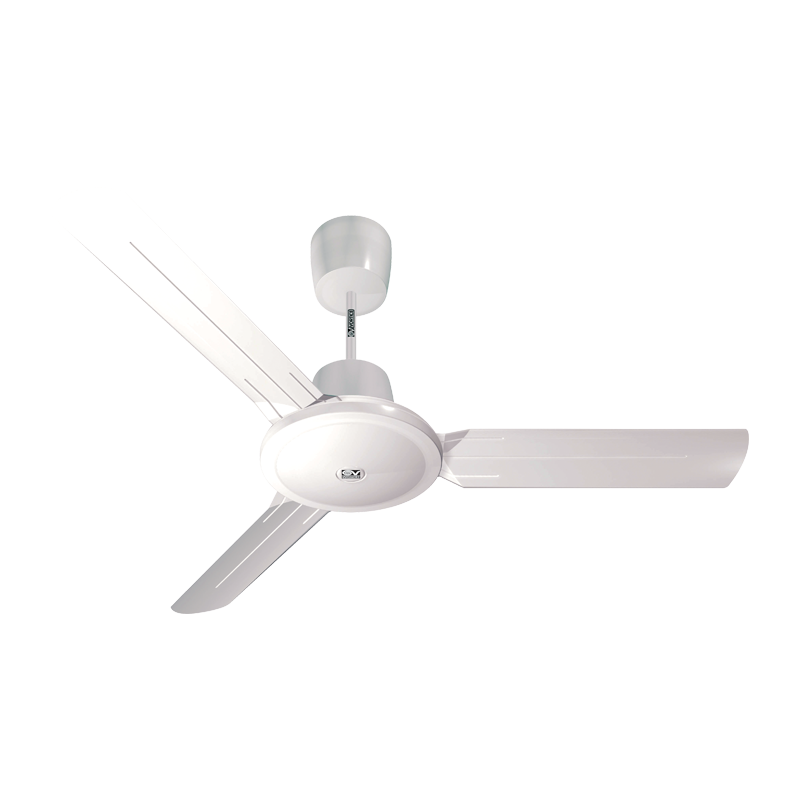

Vortice ceiling fan Nordik Evolution R 120/48, white color. Possibility to add the light KIT (accessory 0000022414).

Request info about this product

Vortice Ceiling fan Nordik Evolution R 120/48 61751

€147.04
€147.04

Vortice Ceiling fan Nordik Evolution R 120/48 61751

€147.04
Tax included
klarna Pay in installments with Klarna
qty

Vortice Ceiling fan Nordik Evolution R 120/48 61751

€147.04

Buy it within and receive it from Thursday, 20 June
Two-year warranty
Secure Payment
Easy return within 14 days

Advantages:

  • Nominal blade diameter of 1200 mm
  • Upper and lower motor covers in white, heat-resistant and UV-resistant thermoplastic resin (ABS)
  • Shock and UV resistant thermoplastic resin (PP) electrical connection cover caps on the shaft end
  • Single-phase external rotor motor with shaft mounted on ball bearings with reversible rotation function, equipped with starting capacitor
  • Maximum flow rate 13.810 m3/h
  • 3 electro-galvanised sheet steel blades, painted with scratch-resistant polyester paint in white
  • 375 mm long steel support rod painted with white anti-scratch polyester paint
  • Accessory bag containing the nuts and bolts necessary for the assembly of the blades, the hook and the anti-vibration rubber for the ceiling fixing
  • Adjustable speed by means of control units or Telenordik 5TR remote control (optional)



Prepared to accept 2 specific optional light kits:

  • with a maximum power lamp of 105 W E27 connection
  • with energy saving lamps 2x15 W max. E27 base (compulsory in EU)



Technical characteristics:

  • Max absorbed current (A) 0,34
  • Diameter blades 1284
  • Frequency (Hz) 50
  • Insulation class I
  • Weight (Kg) 7,1
  • Max power consumption (W) 70
  • Voltage (V) 220-240
  • Max flow rate (m³/h) 13810
  • Max flow rate (m³/min) 230,17
  • Sound power level Lw [dB(A)] 49,1
  • RPM 198
  • Operating values (m³/min)/W 3,288
  • Air speed at max speed (m/s) 2,36

Data sheet

Type:
Agitators
