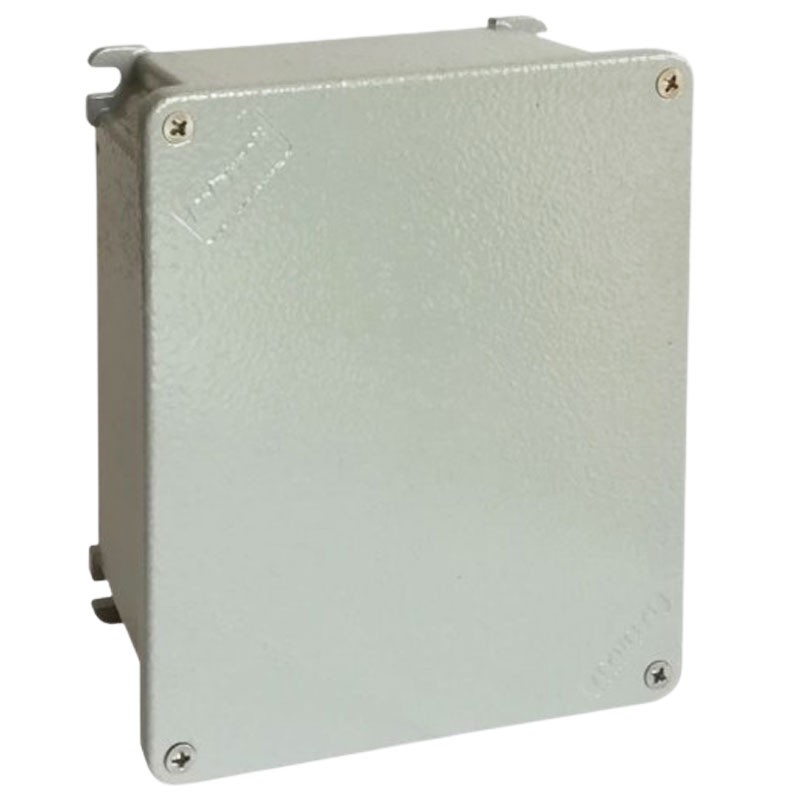

Palazzoli junction box 141x166x64 mm aluminum 520012
PAL 520012
8014950049851
Palazzoli UNIBOX series junction box with the following features:
- Installation: Wall-mounted
- Cover type: Blind
- Material: Aluminum
- Degree of protection: IP66/IP67
- Dimensions: 141x166x64 mm
€16.25
Items Available: 320
: 51
Features:
- Insulation class: I
- Power dissipation: 17W
- Body material: Aluminum alloy
- Finish: Painted gray
- Color: Gray
- Design: Wall-mounted
- Cover type: Blind
- Degree of protection: IP66/IP67
- Impact Resistance: IK08
- Operating Environment Temperature: -40/+90 degrees
- Storage Environment Temperature: -50/+90 degrees

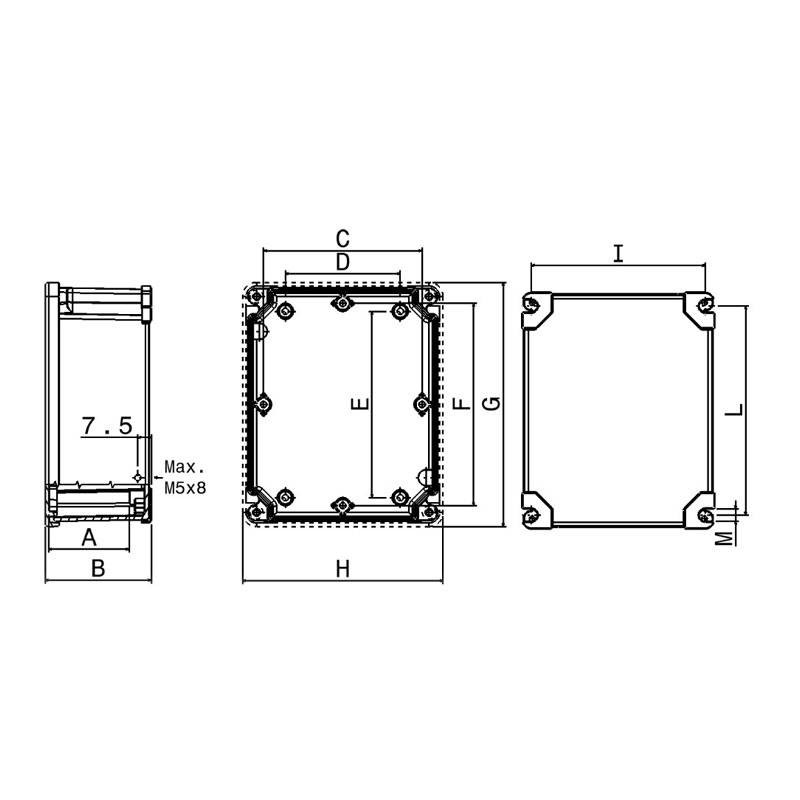

- Dimensions: 50x65x115x99x121x140x166x141x125x144x7.5mm (A-B-C-D-E-F-G-H-I-L-M)
- Weight: 530 grams
There are no reviews
Data sheet
- Type: Wall
- Shape: Square
- Version: Standard
- Degree of protection: IP67
- Model: Aluminum
