Obo junction box set T60 with terminal strip and resin 2010007
OBO 2010007
4012196286539

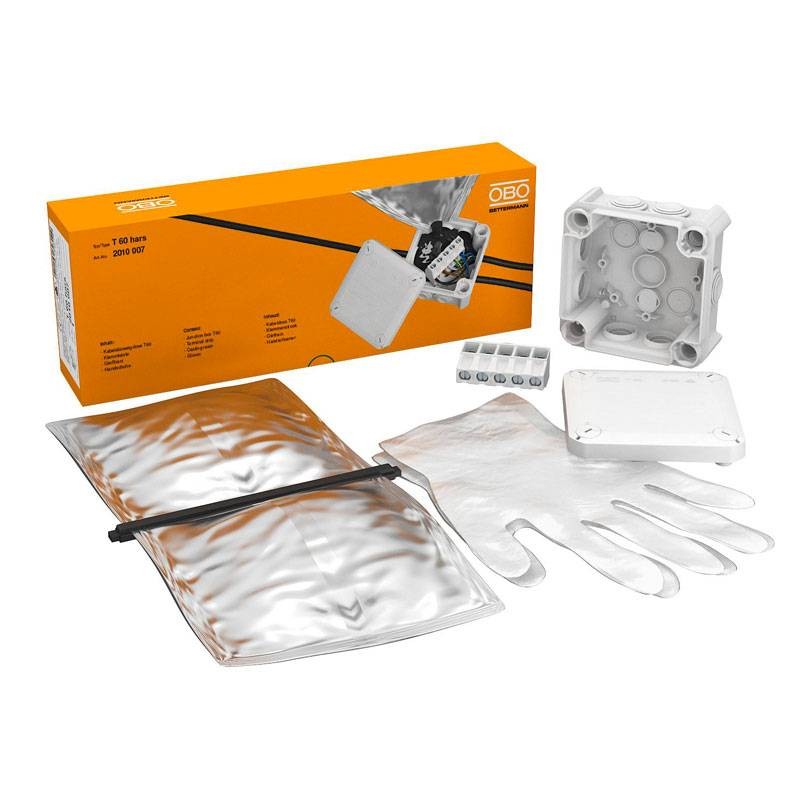

Obo set consisting of:
- T 60 junction box with terminal block
- Cast resin
- Disposable gloves
With the following features:
- With cover
- Entry from the rear side
- Cable entries: 7 x M25
- Degree of protection: IP68
- Material: Polypropylene
- Colour: Grey
€25.06
Items Available: 10
: 2
Two-component casting resin in a mixing bag for protecting electrical installations against moisture according to IP68 protection class and against mechanical stress.
The processing time of cast resin is 40 minutes at 5 degrees, but drops to 20 minutes, for example, at 35 degrees.
When stored in aluminum bag at an ambient temperature between 15 and 30 degrees, the cast resin has a shelf life of 24 months.
Features:
- With lid
- Entry from the back side
- Cable entries: 7 x M25
- Degree of protection: IP68
- Material: Polypropylene
- Degree of protection IK-Code: IK08
- Mounting Mode: Ceiling/Wall
- Number of cable entries: 7
- Sealable
- Halogen-free
- Weatherproof
- Operating temperature: -5/+60 degrees
- Rated voltage: 500 V
- Rated insulation voltage Ui: 500 V
- Colour: Grey

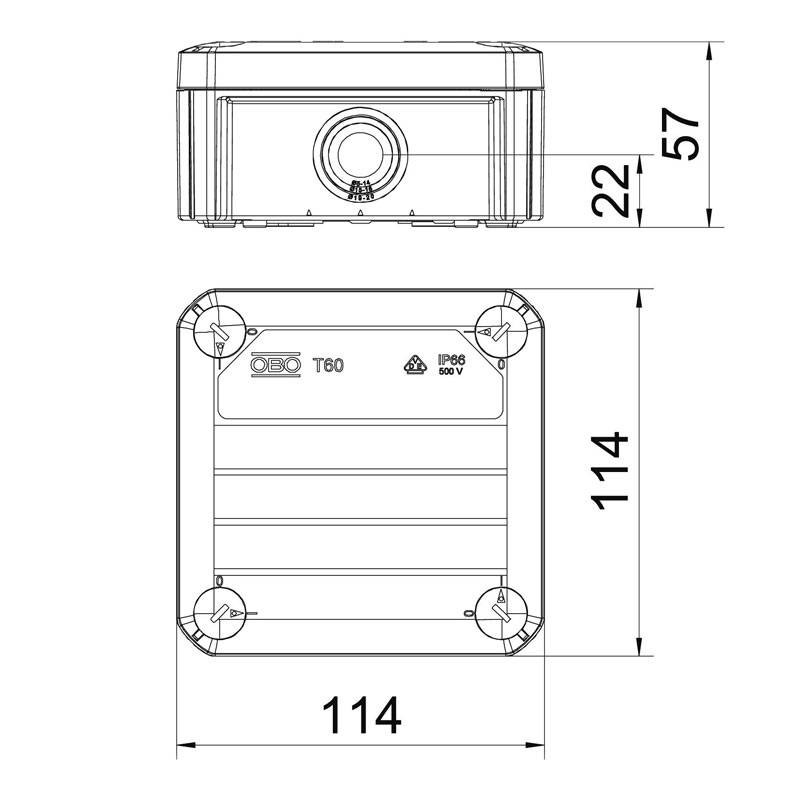

- Dimensions: 114x114x57 mm
There are no reviews
Data sheet
- Type: Wall
- Shape: Square
- Version: Standard
- Degree of protection: IP68
