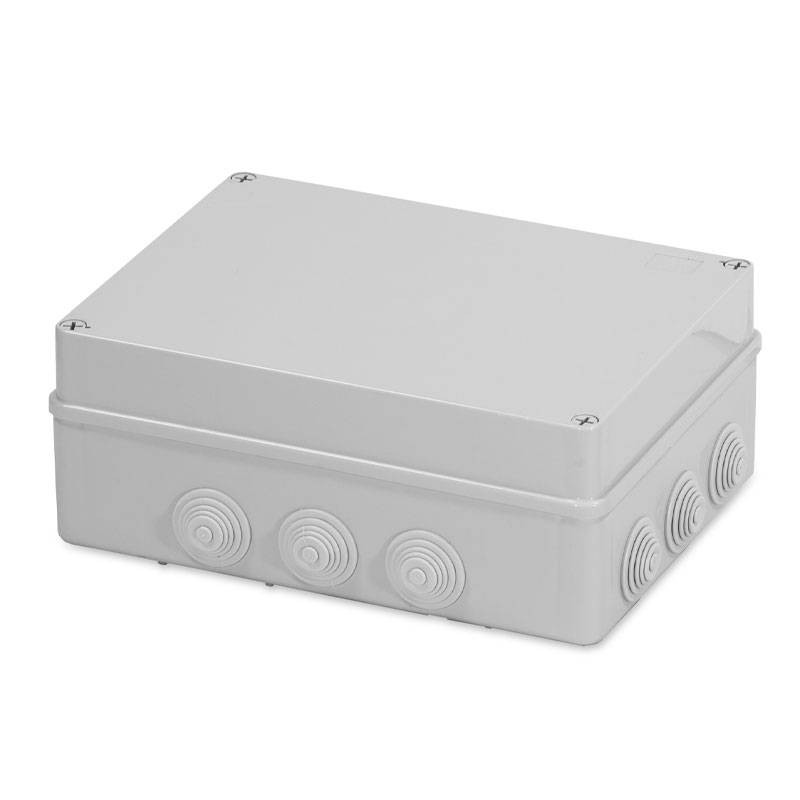

Master external junction box IP55 300x220x120 mm M03105
MST M03105
8015919009183
Master external junction box with 1/4 turn screws and grommets with the following features:
- Insulation voltage: 1000V
- Installation location: indoor/outdoor
- Degree of protection: IP55

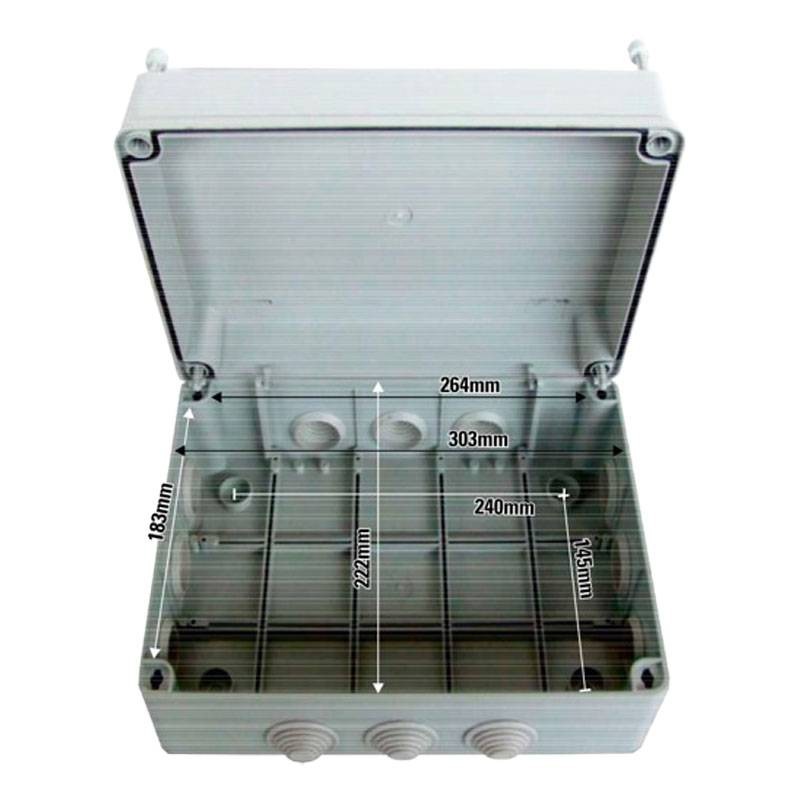

- Dimensions: 300x220x120mm
- Colour: Grey
€19.34
Items Available: 32
: 4
Features:
- Material type: ABS, insulating
- PVC grommet
- Fixing method: Ceiling/wall
- Impact resistance: IK07
- Dielectric strength: 2.5kV
- Glow wire: 650 °C
- Insulation temperature index: 90 °C (Thermal class 90, Y)
- Temperature -5 °C / +60 °C
- Relative humidity: 100% HR
- 12 grommets Ø 32 mm
- Halogen-free (except cable grommets)
- Cover fixing with captive iron screws with anti-rust treatment
There are no reviews
Data sheet
- Type: Wall
- Shape: Rectangular
- Version: Standard
- Degree of protection: IP55
- Model: Waterproof with grommets
