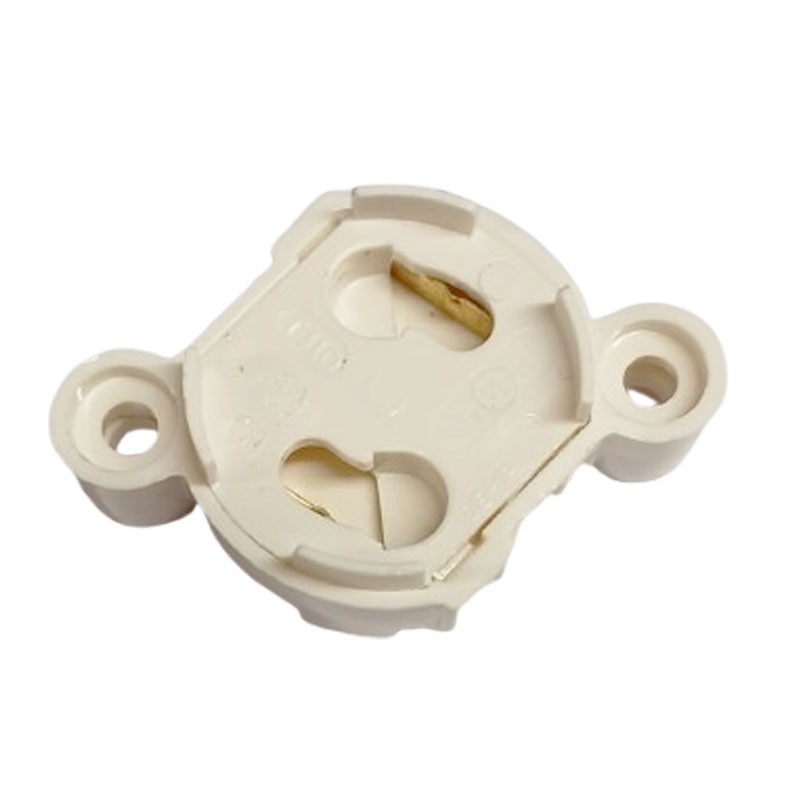

Universal Master Starter Holder 00563
MST 00563
8015919811144
The Master universal starter holder is a reliable device for indoor applications, designed for maximum efficiency and safety. Made of white PC material, it complies with European regulations and is ideal for professional electrical installations:
-
Regulatory compliance: Compliant with LVD 2014/35/EU and RoHS 2 2011/65/EC
-
International standards: Designed in accordance with EN 60400:2018-01
-
Electrical performance: Supports a current rating of 2 amps and a voltage rating of 500 V
-
Sturdy material: Made of white polycarbonate (PC), durable and long-lasting
-
Easy installation: Push-in terminals compatible with cables from 0.5 to 1 mm²
-
Secure fastening: Features holes compatible with M3 screws for stable installation
€0.44
€0.44
Tax included
Tax included
Items Available: 770
: 347
Safety and regulatory compliance
The Starter holder Master complies with the strictest safety regulations. The Low Voltage Directive (LVD) 2014/35/EU ensures protection against electrical hazards, while compliance with RoHS Directive 2 - 2011/65/EC ensures the absence of hazardous substances, making it a safe and sustainable product. It also complies with EN 60400:2018-01, synonymous with quality and reliability in fluorescent lamp fixtures and starters.
Efficiency and ease of installation
The Master starter holder is designed to be practical and quick to install. Push-in terminals allow quick and secure connection with cables between 0.5 and 1 mm², while M3 screw holes ensure stable fixation. These features make it ideal for both new installations and maintenance work.
Strength and internal applications
Constructed from high-quality white PC material, the Master starter holder provides long life and wear resistance. It is designed specifically for indoor environments, such as residential and industrial switchboards, where a reliable, standards-compliant device is needed.
Technical Specifications
| Specifications | Details |
|---|---|
| Current Rating | 2 amps |
| Nominal Voltage | 500V |
| Low Voltage Directive | (LVD) 2014/35/UE |
| RoHS Directive | 2 - 2011/65/EC |
| Material Type | PC |
| Color | White |
| Installation Location | Indoor |
| Terminals | Push-in: 0.5-1 mm² |
| Fastening Holes for Screws | M3 |
| Standards Applied | EN 60400:2018-01 |
The Universal Master Starter Holder was of the expected high quality!
9/10 points. Good service and fast delivery.Thanks.
Esperienza più che positiva, al cento per cento
materiale di buona qualità e coerente con la descrizione a catalogo
Data sheet
- Type: Accessories
