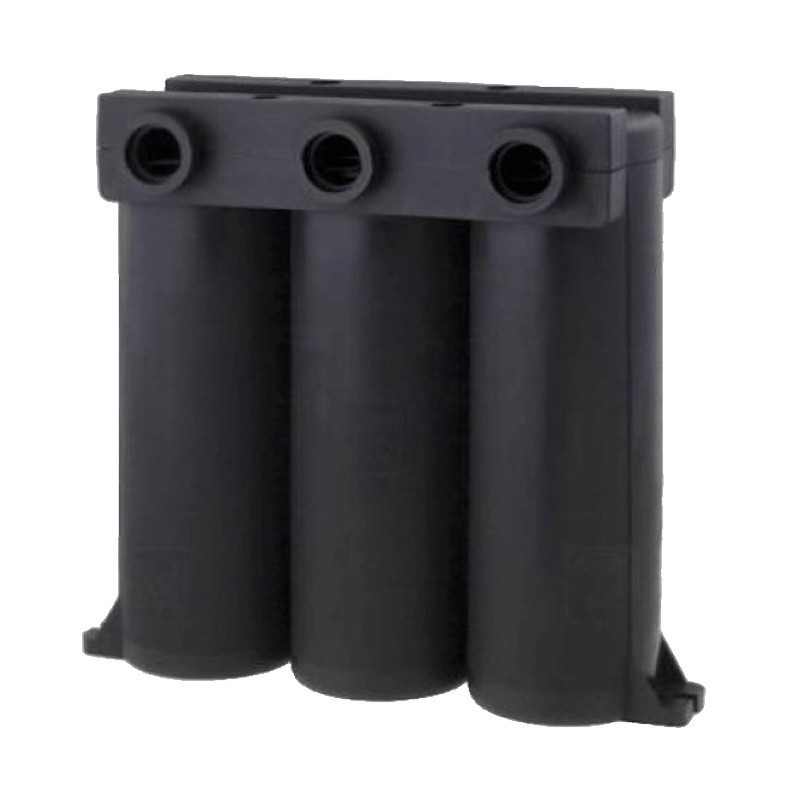

Ducati Three-phase capacitor F60 10kVAR 415V IP40 415047710
DUC 415047710
Ducati F60 three-phase capacitor, ideal for fixed and local power factor correction of motors and transformers. With self-extinguishing enclosure and built-in discharge resistors, with the following characteristics:
-
Reactive power: 10 kVAR
-
Rated voltage: 415V AC
-
Working current: 13.9 A
-
Technology: Polypropylene film capacitor
-
Mounting: Vertical with integrated feet
-
Screw Outputs: 3 x M8 terminals
-
Protection class: IP40
€76.54
Items Available: 14
Frequently bought together
Ducati capacitor safe and high performance
The Ducati F60 10kVAR three-phase capacitor is designed for fixed power factor correction of transformers and local power factor correction of electric motors. It is distinguished by its operational reliability under severe conditions and long life due to the use of metallized polypropylene film and IP40 protection.
The outer casing is made of self-extinguishing Class V2 UL 94 insulation material, which eliminates the need for a direct ground connection, making installation easier and safer.
Quick installation and versatility of use
With the included mounting feet, vertical attachment is immediate and stable. M8 threaded stud terminals ensure a strong and durable connection. Compatible with automatic and manual power factor correction systems, the Ducati capacitor can also be used on 60 Hz networks, offering application flexibility.
Protection and reliability over time
The capacitor has internal discharge resistors, ensuring residual voltage dissipation and increasing safety during maintenance. Capacitance has a standard tolerance of -5% / +10%, and dielectric losses are less than 0.2 W/kVAR, ensuring high energy efficiency.
Technical Characteristics Ducati Three-phase Capacitor
| Parameter | Value |
|---|---|
| Type | Three-phase, polypropylene |
| Power | 10 kVAR |
| Rated voltage | 415 V AC |
| Rated current | 13,9 A |
| Rated frequency | 50 Hz (60 Hz compatible) |
| Terminal test voltage | 2.15 x Un x 2 |
| Terminal-casing test voltage | 3 kV |
| Maximum overload | 4 x In |
| Allowable peak current | ≤ 200 In |
| Degree of protection | IP40 |
| Temperature class | -25/D |
| Maximum altitude | ≤ 2000 m a.s.l. |
| Dielectric losses | ≤ 0.2 W/kVAR |
| Fixing | Vertical with feet |
| Terminals | 3 x M8 |
| Dimensions | 230 x 218 x 79 mm |
| Enclosure | Self-extinguishing V2 UL 94 |
| Connection | Triangle |
