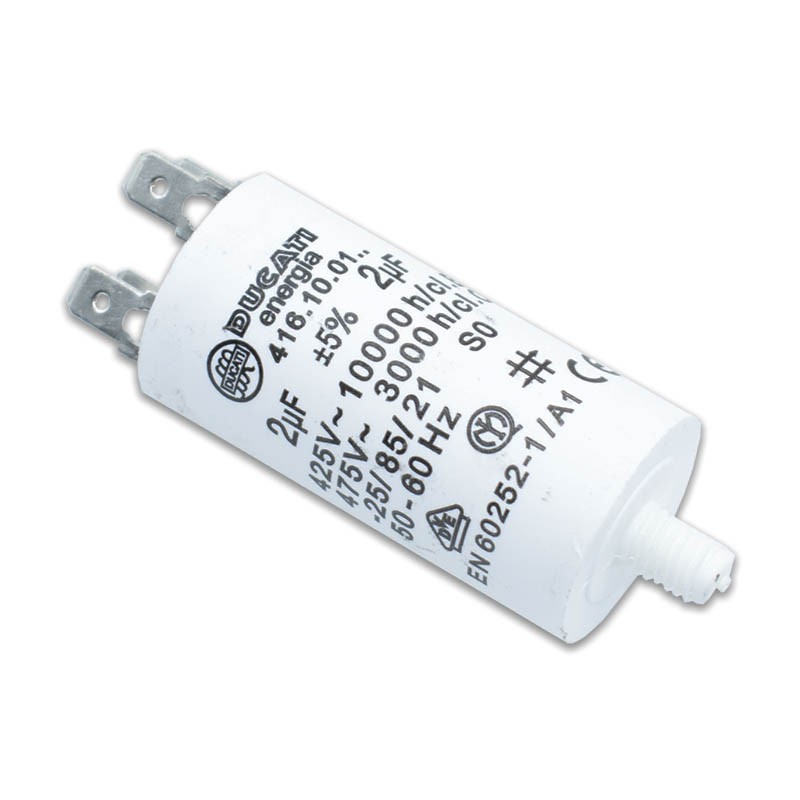

The dielectric is polypropylene film, Ie the reinforcements are formed by a thin metallic deposit obtained by evaporation under vacuum. Housing and cover are made of self-extinguishing plastic material: The element capacitive-sealed with polyurethane resin. The main characteristics of this capacitor series are:

• Winding antinduttivo low-loss
• Property autorigeneranti that prevent the short circuit
• Small size and low weight
• The capacitor is absolutely free from the risk of leakage
• safety class: P0.

Features:

• Tolerance of capacity : ± 5%
• Working frequency : 50 ÷ 60 Hz
• Test voltage of the individual : Between the armor: 2,15 Vn for 2 sec to ground 3KV for 2 sec.
• Loss angle tan ? : <20 104 @ 20°C V=Vn, 50Hz
• Coating : Case and cover in self-extinguishing plastic material, grade V2 according to UL 94
• Terminals : Terminal "Faston" 6,3 mm single, double, plug, 2.8 mm, two-wire cable, cable single core
• Degree of protection : For version with terminals: IP00, for versions with screened cable: IP55
• Cover port-to-terminal : Test of the sphere (IEC 309-1): 125°C Test of the glow wire (IEC 695-2-1): 850°C Resistance to surface currents (IEC 309-1):250V
• Shank threaded fixing : maximum tightening Torque: 5 N m.
