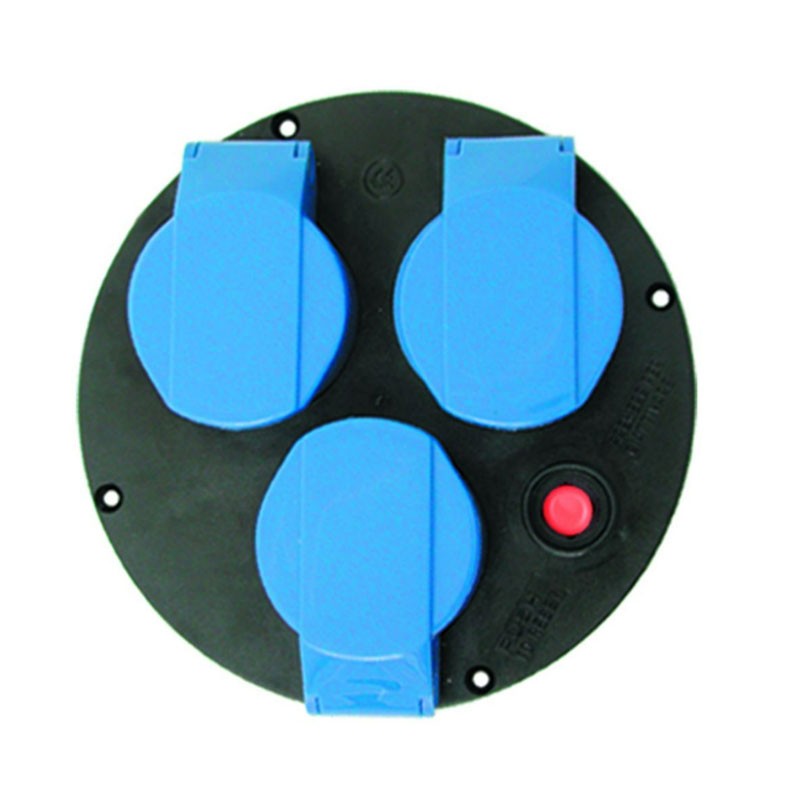

Fanton replacement disc Ø 145 mm for cable reel with 3 sockets 2P+T 01911
FME 01911
8015450019115
Fanton wired replacement disc with the following features:
- Disc for Ø145mm drums
- With disc adapter flange for Ø205mm
- 3 sockets 2P+E 16A 230V~ 6h CEE IP44
- Rated voltage: 200-250V
- Frequency: 50/60 Hz
- Degree of protection: IP44
- With thermal protection
- Wiring via terminal block
- Constructed of thermoplastic materials that pass tests for resistance to shock and temperature fluctuations
- Complete with fixing screws
- Weight: 442 grams
Thermal circuit breaker that automatically disconnects power from the socket block in the event of overheating both when the cable is coiled and unwound; manual reset is by pressing the red button after the temperature has returned to normal levels.
€50.43
Items Available: 3
: 1
There are no reviews
Data sheet
- Type: Cable reels
- Model: Spare parts
