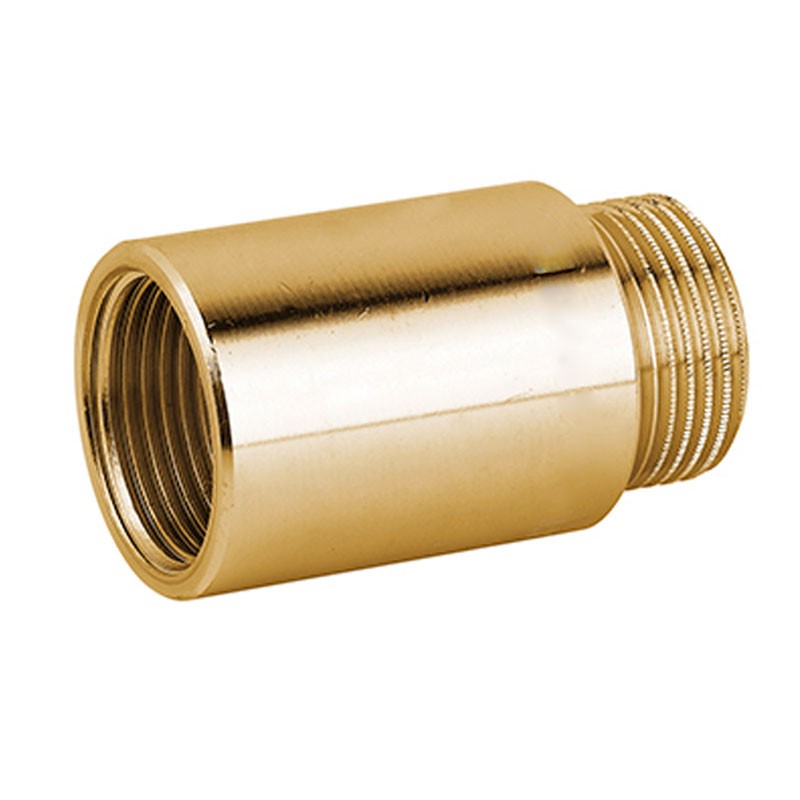

IBP Pipe Extender M/F 3/4 x 20 mm Brass 8540 M06020000
IBP 8540 M06020000
5052740146628
IBP Banninger Series 8000 M pipe extender with the following features:
- Connection: Male/Female
- Diameter: 3/4 x 20 mm
- Material: Brass
The 8000 M Series is a brass pipe fitting system with a cylindrical thread.
IBP Pipe Extender M/F 3/4 x 20 mm Brass 8540 M06020000
€2.04
€2.04
Tax included
Tax included
Pay in installments with Klarna
Items Available: 106
Main advantages:
- Brass screw-on fittings
- Cylindrical threads
- Use of anaerobic sealants or Teflon is recommended
- Avoid applying excessive torque during installation
Applications: Sanitary Water, Drinking Water, Heating, Cooling, Compressed Air (oil-free), Solar.
Operating parameters:
- Sanitary Water, Drinking Water, Heating: -20 / +110 °C at 25 bar 3/4, 16 bar 2 bar, 10 bar 4
- Cooling: 0/ +30°C at 25 bar ? 3/4, 16 bar 2 bar, 10 bar 4
- Compressed air (oil-free): 0 / +30 °C at 10 bar
- Solar: -20 / +110 °C at 6 bar
Data sheet
- Diameter:
- 20mm
- Type:
- Extension pipes
- Connection:
- M/F
- Connections:
- 3/4 inches
- Material:
- Brass
