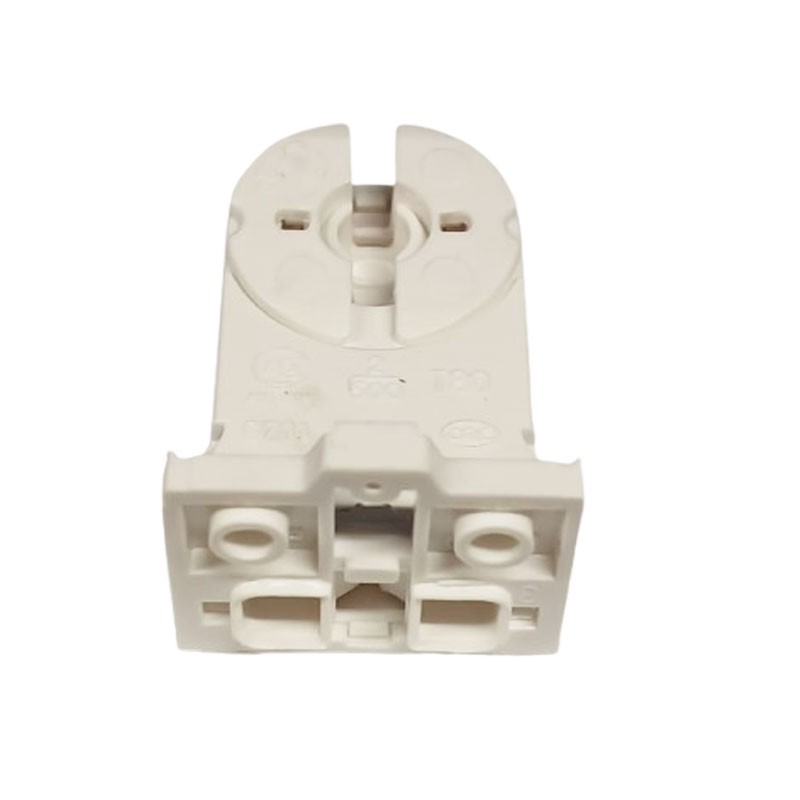

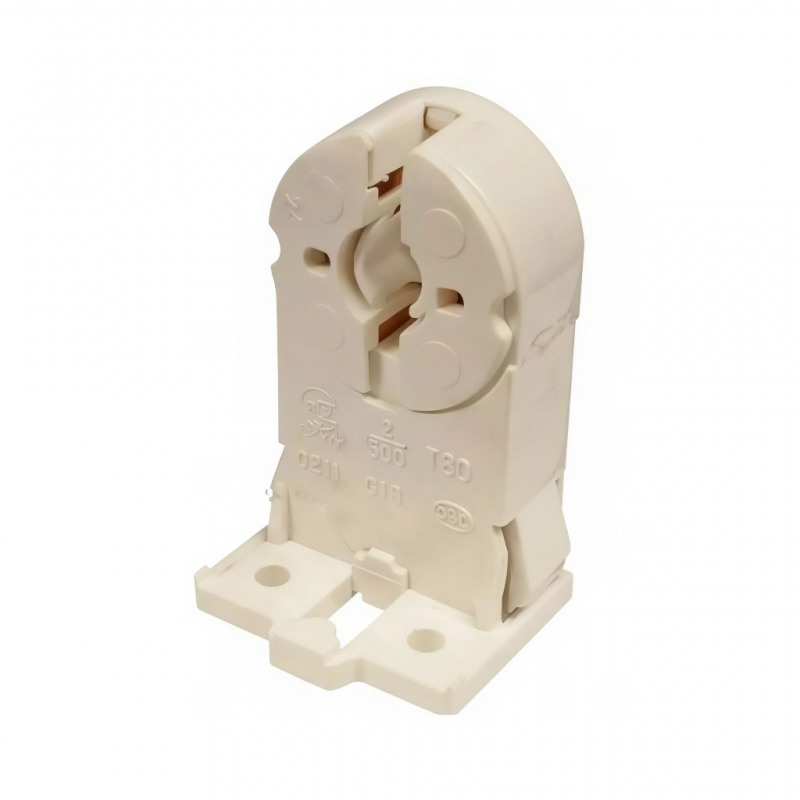

Master G13 Lamp Holder for T8 and T12 type neon 00561
MST 00561
8015919811120
Master G13 Lamp Holder with insertion for T8 and T12 fluorescent lamps, with push-in terminals for lamp and starter circuit. PC body, PBT rotor, LVD and RoHS compliant:
-
Mounting: insertion for linear fluorescent lamps
-
G13 socket for T8 and T12 tubes
-
Double push-in terminal system
-
Separate connection for lamp circuit and starter circuit
-
Polycarbonate (PC) housing and PBT rotor
-
Side fixing clips for quick installation
-
Compliant with European LVD and RoHS directives
€0.51
Items Available: 1755
: 793
Master G13 Lamp Holder, professional solution for fluorescent systems
The Master G13 lamp holder is designed to ensure a safe and reliable electrical connection in applications with linear fluorescent lamps T8 and T12. The insertion system allows for quick mounting inside lighting fixtures, reducing installation time and facilitating maintenance operations.
The presence of two push-in terminals dedicated to the lamp circuit, alongside push-in terminals for the start circuit, allows for neat, precise wiring in compliance with traditional fluorescent fixture specifications.
Technical materials and electrical safety
The polycarbonate (PC) housing ensures high mechanical and thermal resistance, while the PBT rotor ensures long life and stable tube rotation during installation. The lamp holder is designed to withstand a maximum temperature on the rear side of the lamp of 110 °C, making it suitable for continuous use in professional fixtures.

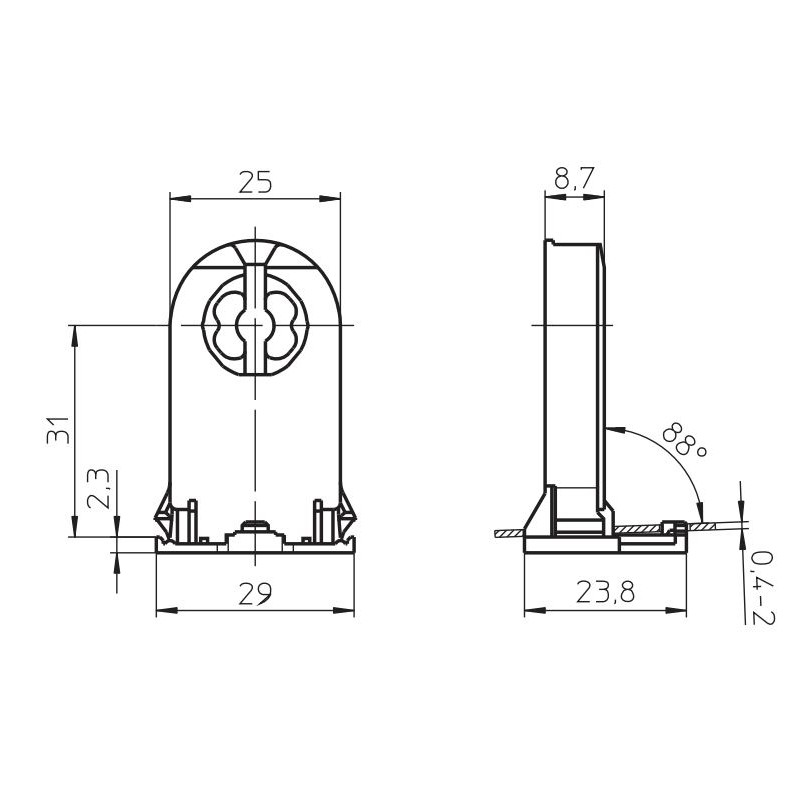

Thanks to the side fixing clips, the lamp holder can be quickly installed on supports with a thickness between 0.4 and 2 mm, without the need for additional accessories. The compact dimensions (29 × 46 × 24 mm) and the lamp focus height of 31 mm ensure perfect compatibility with numerous indoor lighting fixtures. It is an ideal solution for ceiling lights, industrial fixtures, offices, and technical environments using fluorescent technology.
| GENERAL DATA | |
|---|---|
| Socket | G13 |
| Lamp compatibility | T8 / T12 |
| Mounting system | Insertion |
| Installation location | Indoor |
| ELECTRICAL CHARACTERISTICS | |
| Rated current | 2 Amperes |
| Rated voltage | 500 V |
| Terminals | Push-in for lamp circuit / Push-in for starter circuit |
| CONSTRUCTION CHARACTERISTICS | |
| Housing material | Polycarbonate (PC) |
| Rotor material | PBT |
| Colour | White |
| Lamp focus height | 31 mm |
| Maximum temperature on rear side of lamp | 110 °C |
| Dimensions | 29 × 46 × 24 mm |
| Fixing | Side clips for thicknesses 0.4–2 mm |
| STANDARDS AND COMPLIANCE | |
| Compliance | LVD 2014/35/EU, RoHS 2 2011/65/EU |
| Applied standards | EN 60400:2018-01 |
articolo conforme alla descrizione. Buon prodotto
Questi portalampada corrispondono a quelli che vanno a sostituire,perfetti.
Data sheet
- Type: Lamp holder
