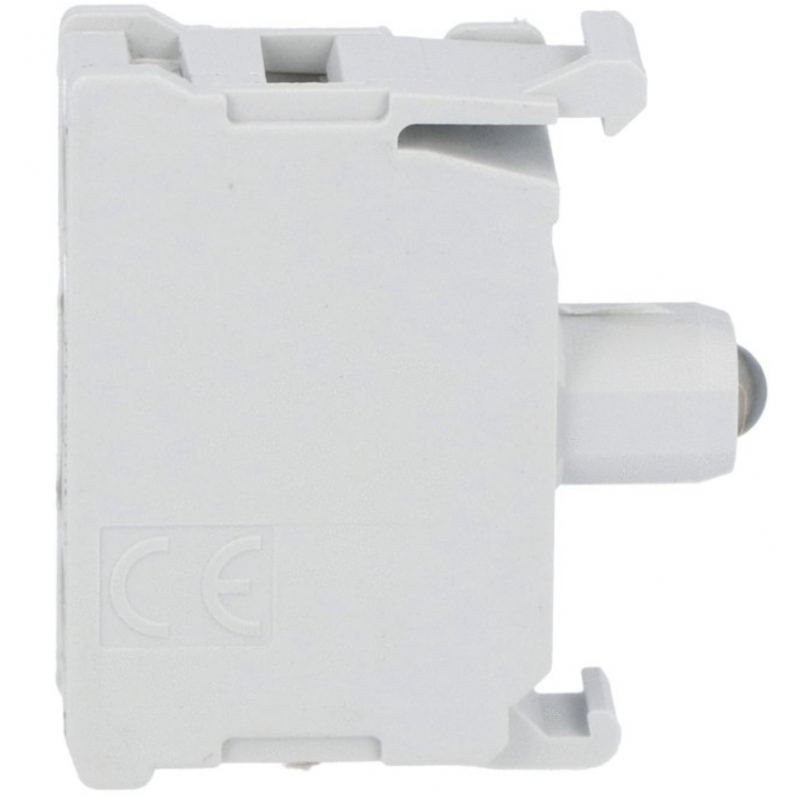

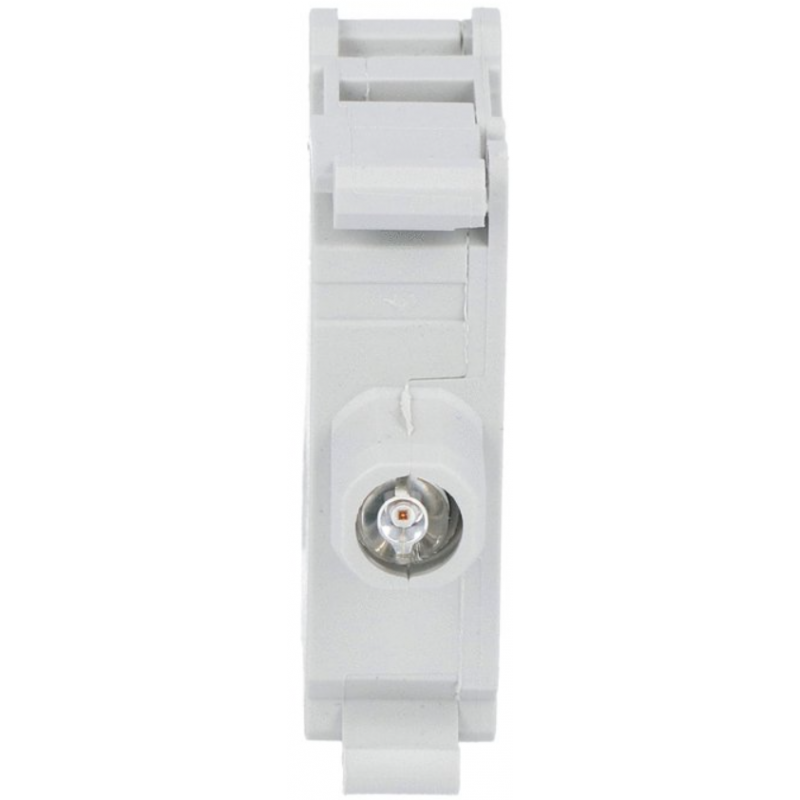

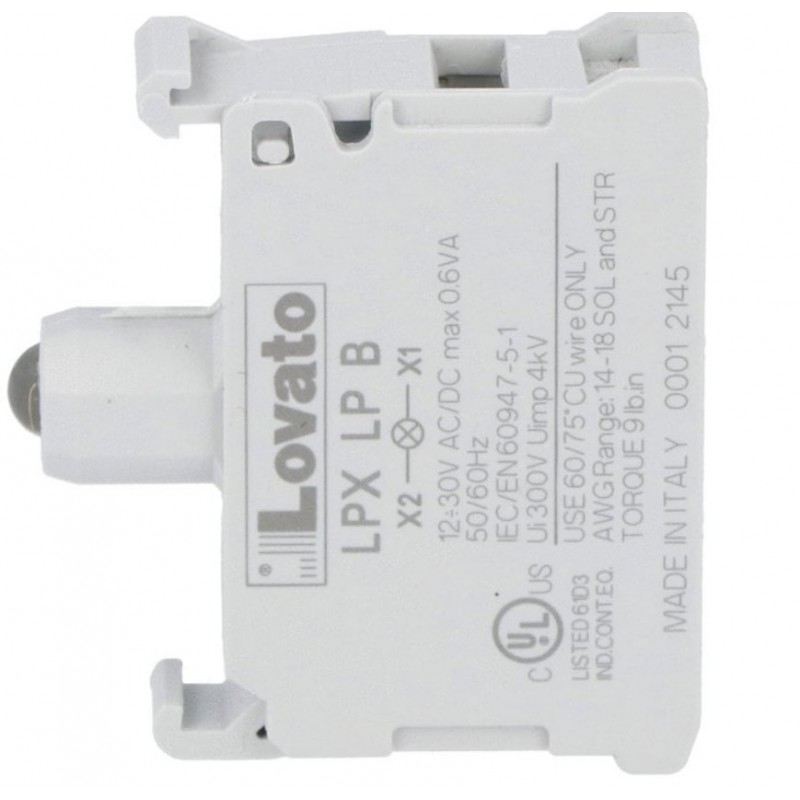

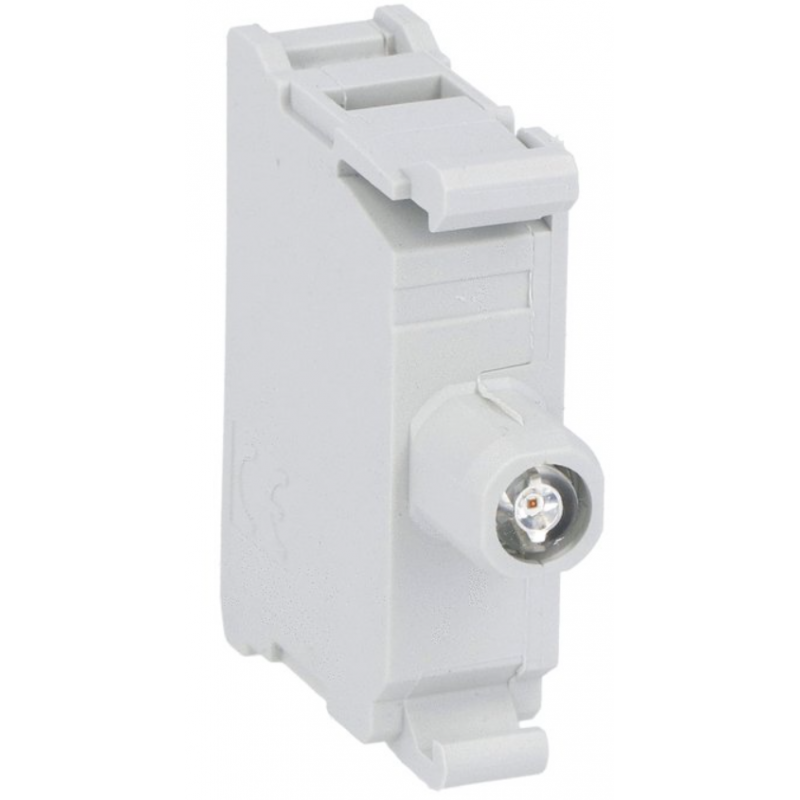

Lovato Platinum LED lampholder White 18/30V screw connection LPXLPB8
LOV LPXLPB8
8013975189979
Lovato Platinum LED lampholder with fixed light:
- LED White
- Supply voltage 12...30VAC/DC

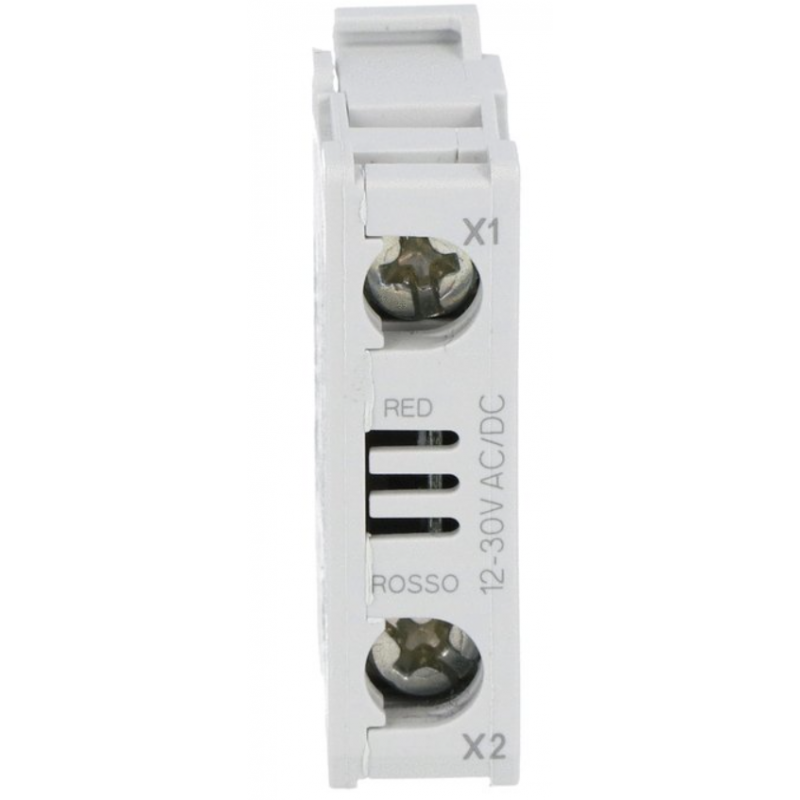

- Screw connection
- Diameter 22 mm.
To add fixing base code LPXAU120.
€7.60
Items Available: 57
Frequently bought together
Total protection against overvoltage, reduction of flickering and unintentional switching on due to induced currents.
Features:
- Supply voltage (AC)(DC) V 1230
- Electrical life hours 100000
- Terminal tightening torque max Nm 1
- Conductor cross section AWG/kcmil max 12
- IEC max mm² 1 or 2 / 2.5
- Product weight 16gr
- Operating temperature min °C -25 - max °C +70
- Storage temperature min °C -40 - max °C +85
- Classification ETIM 8.0 EC000204 - Lampholder for signalling.
There are no reviews
Data sheet
- Type: Lamp holder
- Degree of protection: IP20
