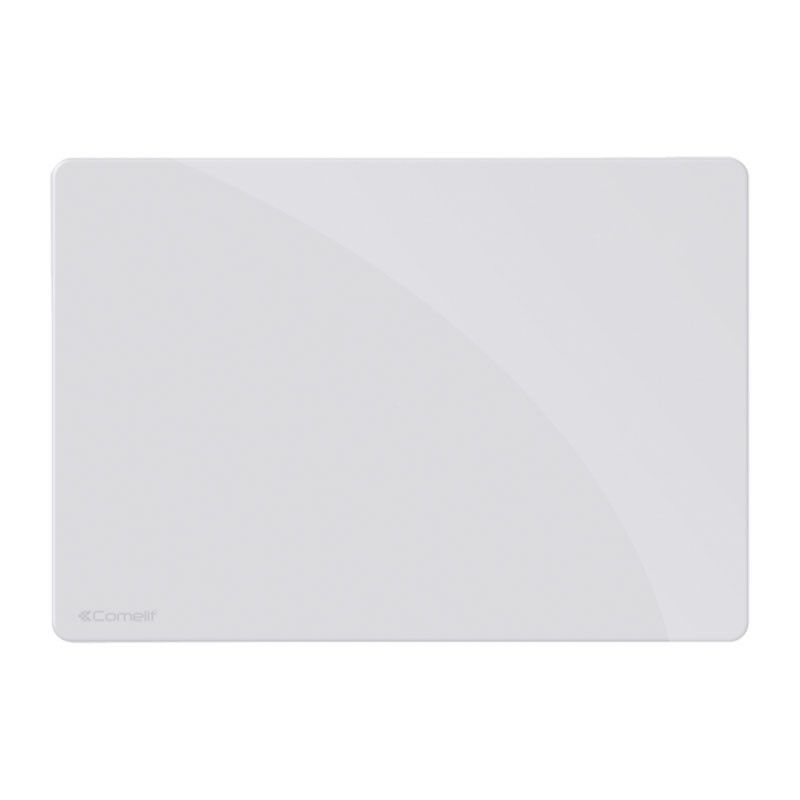

Comelit Multifunction Touch Button with Climate Management ONE/H
COE ONE/H
8023903382723
Comelit Multifunction Touch button with Climate management, BUS control device for SimpleHome Multi-power system dedicated to home automation systems.
To be purchased separately cover codes: ONE/CW - ONE/CB - ONE/CG - ONE/CP.
Mounting on 3-module box for switch ranges, on round box with fixing clips or on 60mm interaxis box (vertical), not included in the package.
€236.61
Items Available: 8
: 4
Frequently bought together
Advantages:
- Functionality can be set during programming
- Touch-sensitive controls, scrolling through 3 pages, short press or long press
- Possibility to control up to 27 dimmer lights, RGB, ON/OFF
- Possibility of sending scenarios, controlling automated openings, adjusting the brightness of a dimmer or the colour and brightness of an RGB light
- Integrated temperature and humidity sensor with the possibility of adjusting the temperature zone within a range of +/-3°C relative to the temperature set by the supervisor
- Brightness sensor for automatic variation of LED brightness
- Colour of each individual LED can be customised during programming
- To be purchased separately cover codes: ONE/CW - ONE/CB - ONE/CG - ONE/CP
- Mounting on 3-module box for switch ranges, on round box with fixing clips or on 60mm interaxis box (vertical), not included in the package
Characteristics:
- Maximum number of buttons per page (n°) 9
- Number of pages (n°) 3
- Dimensions: Height (mm) 78 - Width (mm) 113 - Depth (mm) 36
- Maximum current absorption (mA) 75
- Simplehome bus connection Yes
- Button colour customisation Yes
- BUS address programming via dip-switch Yes
- Integrated probe temperature setting range (°C) 5 ÷ 30
- Built-in probe temperature resolution (°C) 0,1
- Integrated probe temperature setting resolution (°C) 0,1
- Integrated temperature sensor Yes
Functions:
- Multi-speed control (fan coil)
- Integrated probe temperature Yes
- Freeze function for cleaning Yes
- Other temperature probe management Yes
- Heating/cooling management integrated probe Yes
- Special dimmer management page Yes
- Special page rgb management Yes
- Special page climate zone management Yes
- Special page scenarios Yes
- Automatic led brightness adjustment Yes
- Yes Local temperature adjustment integrated probe
- Recognition of prolonged pressure for dimmer control Yes
- Yes Recognition of prolonged pressure for blinds control
- Stand-by for energy saving Yes
- Integrated probe status display Yes
There are no reviews
Data sheet
- Type: Accessories
