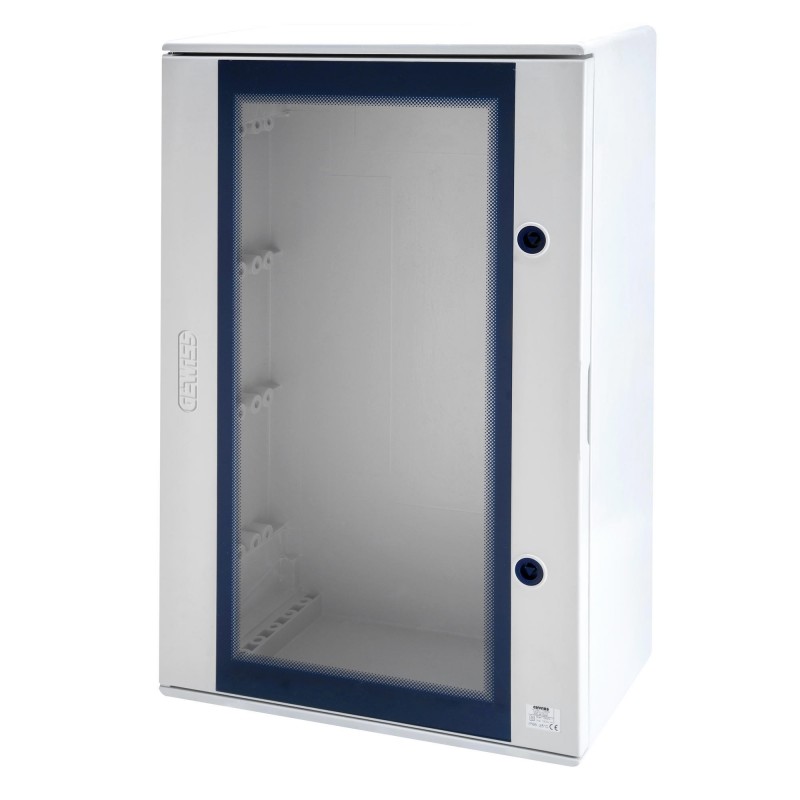

Gewiss transparent polyester panel with lock IP65 GW46204F
GEW GW46204F
8011564854819
Gewiss electrical panel, with the following characteristics:
- Insulation voltage: 1000 V according to EN 62208 both in AC and DC
- Insulation voltage: 1000 V
- Maximum rated voltage (Ue) 690 V
- Power dissipation A 118W
- Power dissipation B 81W
Double insulation recovery kit GW46526.
Wall-mounting brackets GW46446,GW46451.
€304.17
Items Available: 11
: 1
Frequently bought together
Features:
- Transparent door with lock

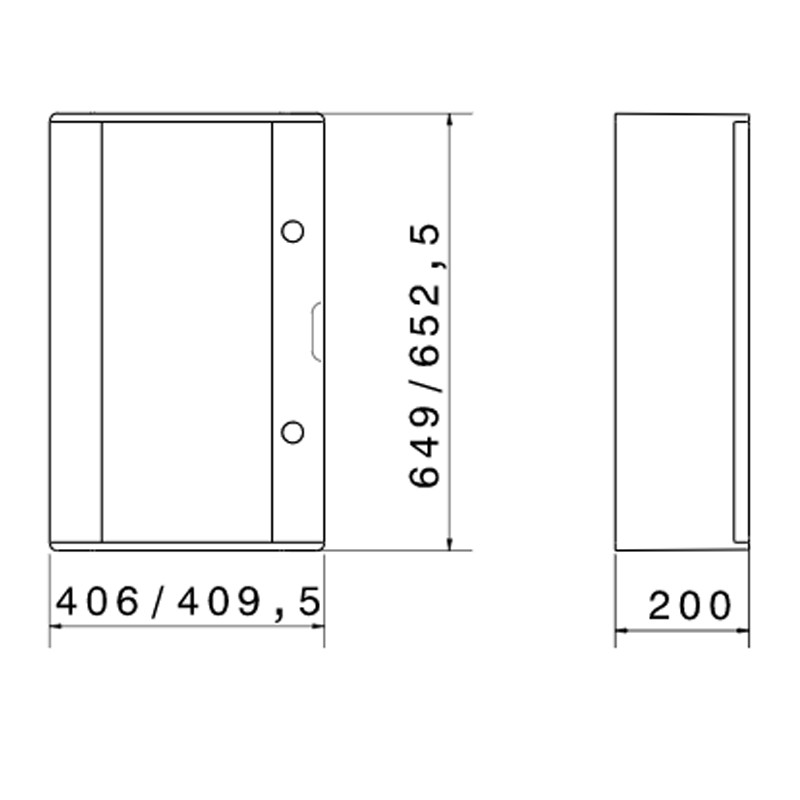

- Nominal dimensions BxHxP 405x650x200 mm
- Functional dimensions BxHxD 409,5x652,5x200 mm
- Number of modules: 72 (on four rows) (EN 50022)
- Insulation class: II
- Material: polyester reinforced with glass fibre
- Material type: Halogen free according to EN 60754-2 standard
- Colour: grey RAL 7035
- Impact resistance: case IK10
- Degree of protection IP66
- Electrocod code 0321
- Number of locks: 2
- Standards: EN 61439-1, EN 61439-2, EN62208, EN 60670-1, IEC 60670-24
- Family 46 QP
- Characteristics: UV resistance (EN 62208)
- Operating temperature -25 +60 °C
- Thermopressure with ball 200 °C
- Glow wire resistance 650 °C
There are no reviews
Data sheet
- Type: Switchboards
- Degree of protection: IP66
- Model: Glass Door
