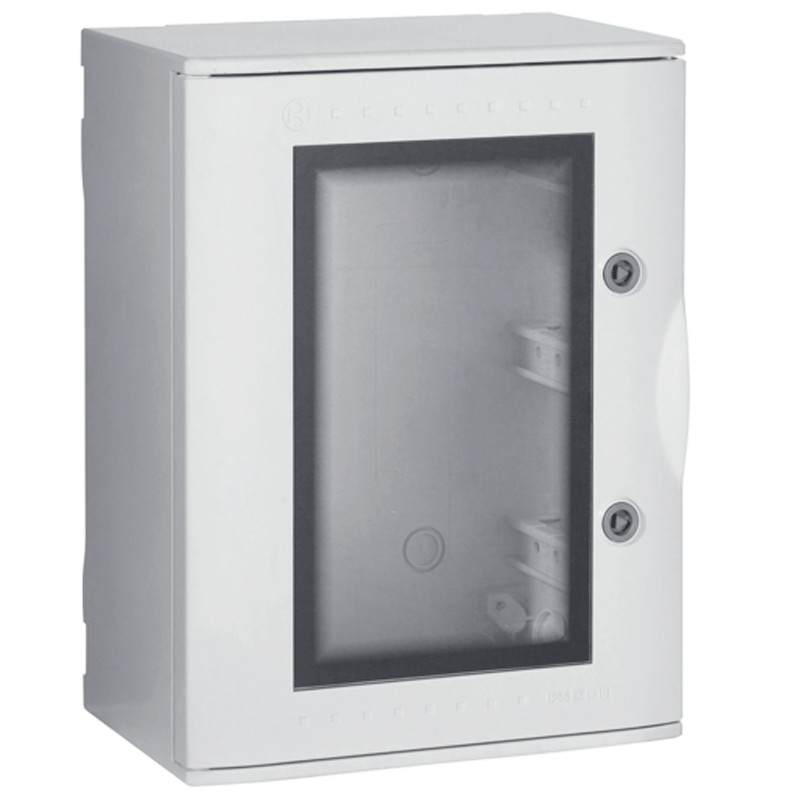

Bocchiotti porthole cabinet in fiberglass 36 modules IP66 grey B04622
IBO B04622
8015892533798
Bocchiotti fibreglass VTR 02 porthole panel with the following characteristics
- 36 modules (on three rows)
- Degree of protection of the enclosure IP66
- Colour: grey RAL 7035
€152.11
Items Available: 25
: 4
Features:
- Bocchiotti Series
- Protruding fixing mode
- Compatible with DIN rail mounting
- Type of door lock with male triangular key
- Interlockable no
- Door Lock Number 2
- Blind door cover type
- Keyed lock
- Single door leave
- Type of door cover
- Transparent cover or door yes
- Grey color
- Material glass-fibre reinforced polyester
- Surface treatment untreated
- Depth 178 mm
- Inside depth 148 mm
- Height 428.2 mm
- Width 325 mm
- Width in units of division 12
- Thickness of side wall material 2 mm
- Suitable for outdoor use yes
- Mounting plate included no
- Lockable yes
- Number of keys 2
- Number of profiles 3
- Can be upgraded yes
- Reference standards EN 60670-24
- European WEEE Directive not concerned
- Degree of resistance to impact 10
- Degree of protection of the enclosure IP66
- Insulation protection class II
- Degree of resistance to incandescent wire according to EN 60695-2-11: 960°C
- Halogen-free yes
- Ultraviolet resistant yes
- Operating temperature -25...60 °C
There are no reviews
Data sheet
- Type: Switchboards
- Degree of protection: IP66
- Model: Glass Door
