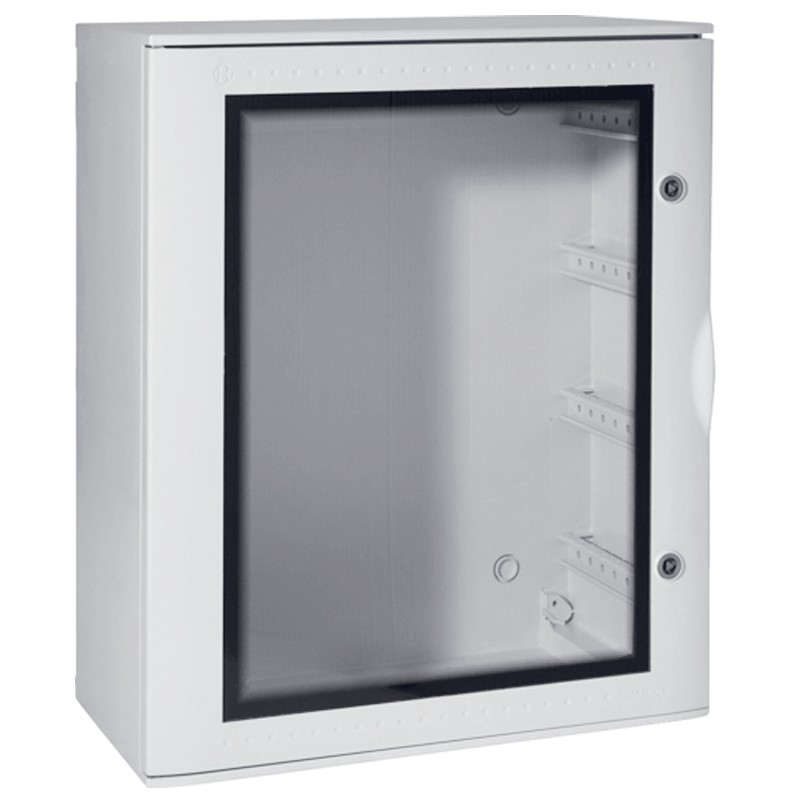

Bocchiotti Pedro porthole panel in fiberglass 96 modules IP66 B04625
IBO B04625
8015892533828
Bocchiotti VTR 05 fiberglass porthole panel, Pedro line, with the following characteristics
- 96 modules (on four rows)
- Degree of protection of the enclosure IP66
- Impact resistance degree IK10
- Colour: grey RAL 7035
€332.40
Items Available: 68
: 33
Frequently bought together
Features:
- Bocchiotti series (Pedro line)
- Protruding fixing mode
- Compatible with DIN rail mounting
- Type of door lock with triangular male key
- Interlockable no
- Door Lock Number 2
- Cover type Blind door
- Keyed lock
- Single door leave
- Type of cover Door
- Transparent cover or door yes
- Colour grey RAL 7035
- Material Glass-fibre reinforced polyester
- Surface treatment untreated
- Depth 264,5 mm
- Inside depth 234,5 mm
- Height 654.6 mm
- Width 542.4 mm
- Width in units of division 24
- Thickness of side wall material 2 mm
- Suitable for outdoor use yes
- Mounting plate included no
- Lockable yes
- Number of keys 2
- Number of profiles 4
- Can be upgraded yes
- Reference standards EN 60670-24
- European WEEE Directive not affected
- Impact resistance grade IK10
- Degree of protection of the enclosure IP66
- Insulation protection class II
- Degree of resistance to incandescent wire according to EN 60695-2-11: 960°C
- Halogen-free yes
- Ultraviolet resistant yes
- Operating temperature -25...60 °C
There are no reviews
Data sheet
- Type: Switchboards
- Degree of protection: IP66
- Model: Glass Door
