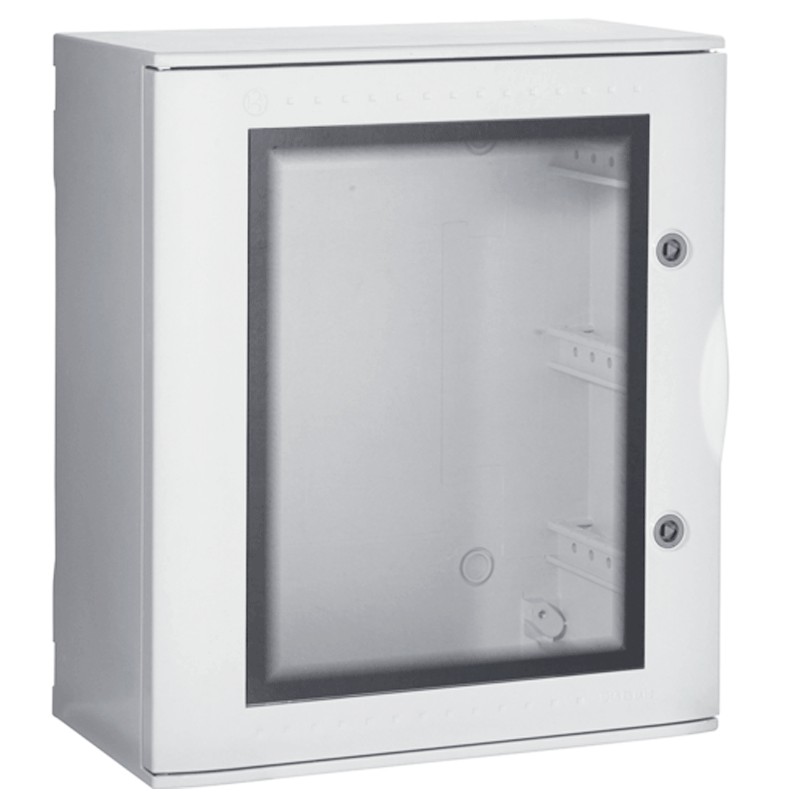

Bocchiotti Pedro porthole switchboard in fiberglass 54 modules IP66 B04623
IBO B04623
8015892533804
Bocchiotti VTR 03 fiberglass switchboard with portholes, Pedro line, with the following characteristics
- 54 modules (on three rows)
- Degree of protection of the enclosure IP66
- Impact resistance degree IK10
- Colour: grey RAL 7035
Attached PDF with list of accessories to be purchased separately.
€213.74
Items Available: 32
: 3
Frequently bought together
Features:
- Bocchiotti series (Pedro line)
- Protruding fixing mode
- Compatible with DIN rail mounting
- Type of door lock with triangular male key
- Interlockable no
- Door Lock Number 2
- Cover type Blind door
- Keyed lock
- Single door leave
- Type of cover Door
- Transparent cover or door yes
- Colour grey RAL 7035
- Material Glass-fibre reinforced polyester
- Surface treatment untreated
- Depth 210 mm
- Inside depth 180 mm
- Height 503,7 mm
- Width 433.5 mm
- Width in units of division 18
- Thickness of side wall material 2 mm
- Suitable for outdoor use yes
- Mounting plate included no
- Lockable yes
- Number of keys 2
- Number of profiles 3
- Can be upgraded yes
- Reference standards EN 60670-24
- European WEEE Directive not affected
- Impact resistance grade IK10
- Degree of protection of the enclosure IP66
- Insulation protection class II
- Degree of resistance to incandescent wire according to EN 60695-2-11: 960°C
- Halogen-free yes
- Ultraviolet resistant yes
- Operating temperature -25...60 °C
There are no reviews
Data sheet
- Type: Switchboards
- Degree of protection: IP66
- Model: Glass Door
