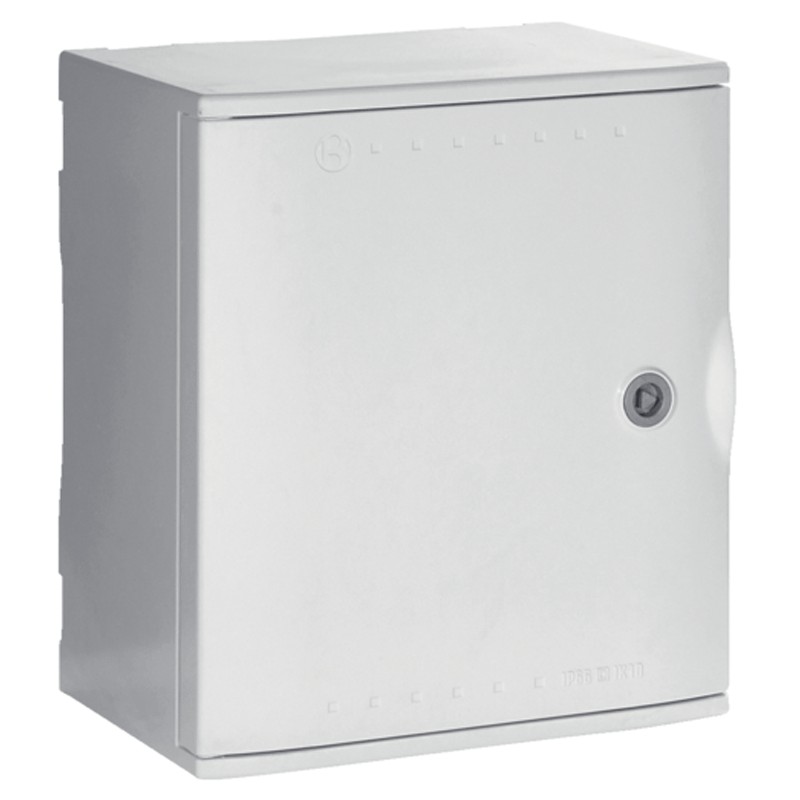

Bocchiotti Pedro blind box in fiberglass 300X265X165 IP66 B04601
IBO B04601
8015892533712
Bocchiotti VTR 01 blind panel in fiberglass, Pedro line, with the following characteristics:
- Degree of protection of the enclosure IP66
- Colour: grey RAL 7035
- Impact resistance degree IK10
Compatible accessories: B04670, B04680.
€99.66
Items Available: 112
: 54
Frequently bought together
Features:
- Bocchiotti series (Pedro line)
- Protruding fixing mode
- Compatible with DIN rail mounting
- Type of door lock with triangular male key
- Interlockable no
- Door lock number 1
- Cover type Blind door
- Keyed lock
- Single door leave
- Cover type Door
- Transparent cover or no door
- Colour grey RAL 7035
- Material Glass-fibre reinforced polyester
- Surface treatment untreated
- Depth 167 mm
- Inside depth 137 mm
- Height 302.8 mm
- Width 264,7 mm
- Thickness of side wall material 2 mm
- Suitable for outdoor use yes
- Mounting plate included no
- Lockable yes
- Number of keys 2
- Can be upgraded yes
- Reference standards EN 60670-24
- European WEEE Directive not affected
- Impact resistance grade IK10
- Degree of protection of the casing IP66
- Insulation protection class II
- Degree of resistance to incandescent wire according to EN 60695-2-11: 960°C
- Halogen-free yes
- Ultraviolet resistant yes
- Operating temperature -25...60 °C
There are no reviews
Data sheet
- Type: Switchboards
- Degree of protection: IP66
- Model: Blind Door
