How does a heat pump work?

The operation is characterized by a closed-loop system with a refrigerant fluid inside (for issues of eco-sustainability today, R-32 refrigerant, also known as difluoromethane or Freon 32, is almost always used) subject to a cyclic change of state, moving from the liquid phase to vapor and back; this obviously occurs with an expenditure of electricity, as the heat pump extracts and transfers thermal energy by employing electrical energy. According to the laws of technical physics and psychrometry, there will be variations in pressure and temperature, and the heat pump takes advantage of these variations occurring at the evaporator and compressor, resulting in a very advantageous overall efficiency or coefficient of performance (COP), even exceeding 4-5. It means that for every electric kW spent, as a result you have 4-5 kW of heat output generated by the system.



Low Temperature Air-to-Water Heat Pumps ideal for new buildings, environmentally sustainable standards with installation of underfloor systems, suitable for heating, domestic hot water and cooling; possible integration with solar thermal.

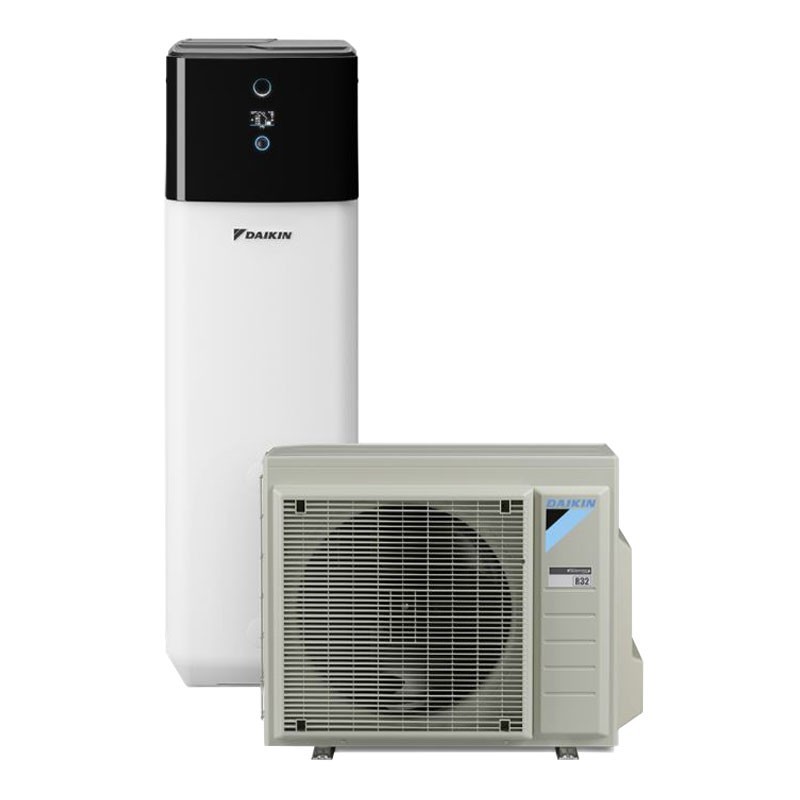

The Daikin Altherma Compact indoor unit, now equipped with R32 refrigerant gas, is known for its ability to maximize the use of renewable energy sources to offer maximum performance in heating, cooling and domestic hot water production.



Smart storage management:

• 'Smart Grid' unit that enables efficient storage of thermal energy for space heating and domestic hot water production when there is a surplus of photovoltaic production or particularly low tariffs
• Continuous heating in defrost mode and use of stored heat for space heating
• Electronic management of the heat pump and thermoaccumulator maximizes energy efficiency, both in heating and domestic hot water production
• Top in water hygiene Maximizing the use of renewable sources by preparing for a drain-back or pressurized solar system.



Innovative and high-quality storage tank:

• Lightweight, highly insulated technopolymer storage tank
• Absence of corrosion, scaling or scale deposits
• Shockproof polypropylene inner and outer walls filled with high-quality insulation foam to minimize heat loss
• Legionella proliferation in domestic water is prevented by technical water storage and instant domestic hot water production



Technical water storage and instant domestic hot water production for maximum comfort!

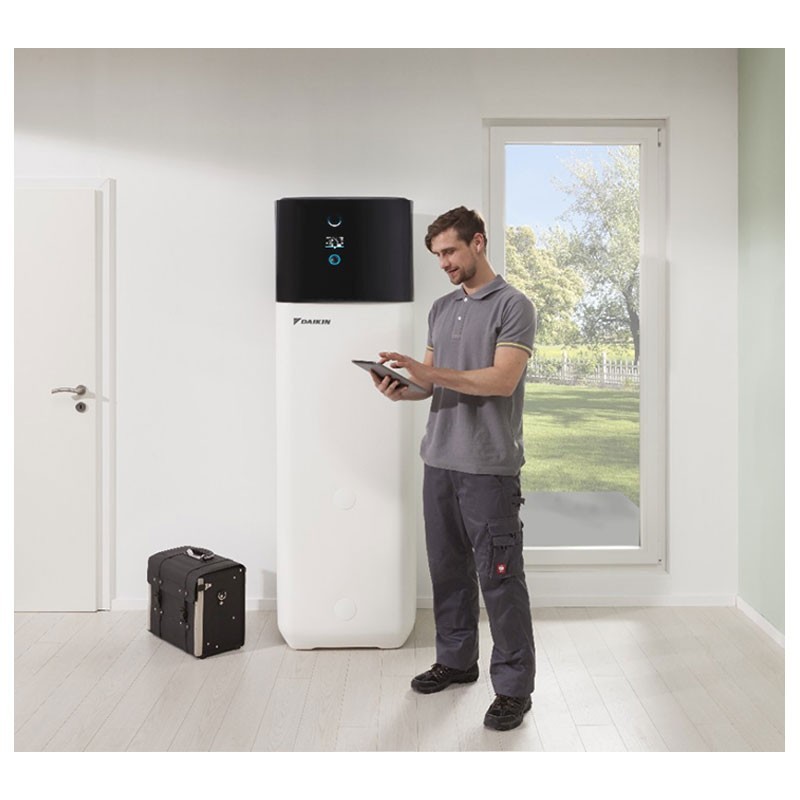

• The indoor unit connected to a thermal storage tank enables unprecedented levels of comfort to be achieved in a domestic environment
• Instantaneous hot water production due to technical water storage, delivery of domestic hot water on demand avoiding the risk of contamination and sedimentation
• Optimal performance in domestic hot water production: highly insulated technopolymer storage tank allows perfect temperature stratification in the storage tank and offers highly efficient delivery
• Future-ready: possibility of integration with renewable solar energy and other heat sources, such as a stove or fireplace.



Component specifications:



Efficiency data Kit EHSX+EGA:

• Nominal heating capacity kW 6
• Nominal Heating Capacity kW 1.24
• Nominal Cooling Capacity kW 5.96
• Absorbed capacity Nominal cooling kW 1.06
• COP 4.85
• EER 5.61
• Space heating: SCOP 3.28
• Seasonal efficiency for space heating 128%.
• Seasonal efficiency class for space heating A++
• Water output SCOP 4.52
• Seasonal efficiency for space heating 178%.
• Seasonal efficiency class for space heating A+++.

Domestic hot water heating:

• Declared load profile L
• Average climate water heating efficiency 115% - Water heating energy class A+.

Specifications Indoor unit EHSX08P30E:

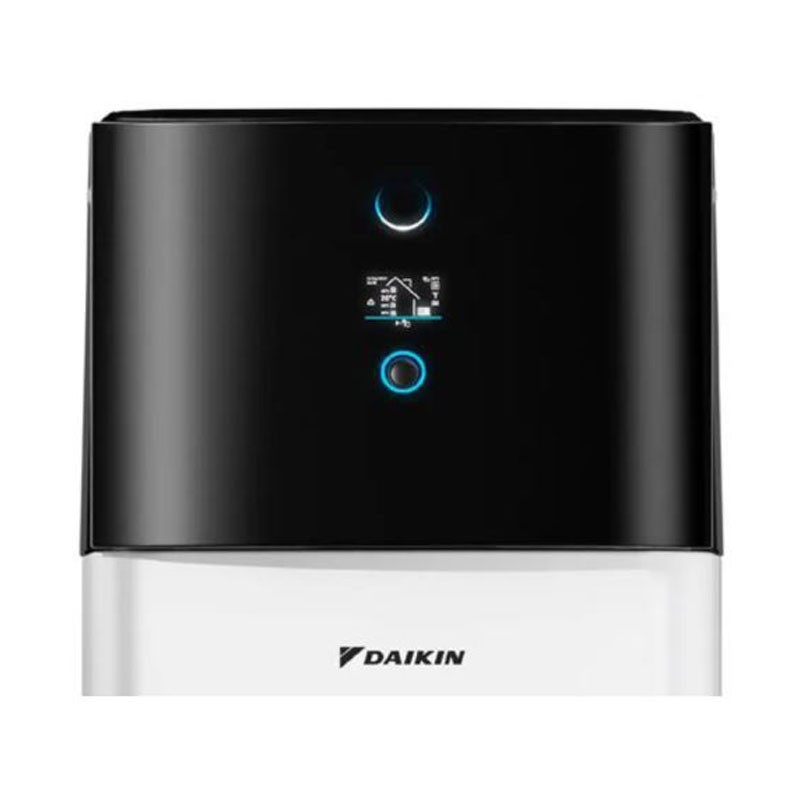

Indoor unit for heating and cooling with built-in 300-liter energy storage tank for instant domestic hot water production. Hydraulic system equipped with high-efficiency pump, diverter valves for hot water/heating and heating/cooling, with integrated return temperature limitation for use with solar system, safety module with electronic pressure gauge and safety valve, flow sensor and fill/drain taps. Electrical system with overload relay and Plug and Play arrangement for electric auxiliary heater (backup-heater) to be ordered separately. New elegant and intuitive MMI control unit. Dimensions (H x W x D) 1892 x 615 x 590 mm.

• Coating color White (RAL9016) - Dark gray (RAL7011)
• Material Shockproof polypropylene
• Dimensions: (Height/Width/Depth 1891x595x615mm
• Weight 73kg
• Water tank volume 294 liters - Max water temperature 85 Degrees
• Operating range (Water side) Heating Min Mx 18-65 Degrees / Cooling Min Max 5-22 Degrees / Domestic hot water Min Max 25-55 Degrees
• Rated sound power level 39 dBa
• Rated sound pressure level 28 dBa.

ERGA06EV Outdoor Unit:

• Dimensions: Height/Width/Depth 740x884x387 mm
• Weight 58.50 kg
• Swing type hermetic compressor
• Operating range Heating Min Max -25 / 25 Degrees
• Operating range Cooling Min Max 10 / 43 Degrees
• Operating range domestic hot water Min Max -25/35 Degrees
• R-32 gas
• GWP 675
• Refrigerant charge 1.50 kg
• Expansion valve control
• Sound power level Heating/cooling Nominal 60/62 dBa
• Sound pressure level Heating/Refreshing Nominal 47/49 dBa
• Power supply V3/1N 50 Hz - 230 V
• Recommended Fuse Current 25A
• Maximum distance Indoor unit - outdoor unit 30 meters
• Refrigerant piping (5/8) GAS 15.90 mm
• Refrigerant piping Liquid (1/4) 6.35 mm.

Auxiliary Backup-heater 3kW code EKECBUA3V:

• Auxiliary heater for Compact from 1 x 230 V 50 Hz / 3 power steps up to 3000 W for heat pump support as backup-heater and booster-heater. For combination with Compact R32 units, the EKECBUCO3A connection kit must be additionally provided.
