Daikin Sensira Air Conditioner 9000btu 2.5KW R32 A++/A+ with Mounting Kit
KIT DAKFTX09
Daikin Monosplit Inverter Inverter Sensira 9000btu 2.5KW Air Conditioner (FTXC25D/RXC25D) combines energy efficiency and stylish design for optimal comfort in every room. With an output of 2.5KW, R32 refrigerant gas, and energy class A++/A+, it offers high performance with low consumption:

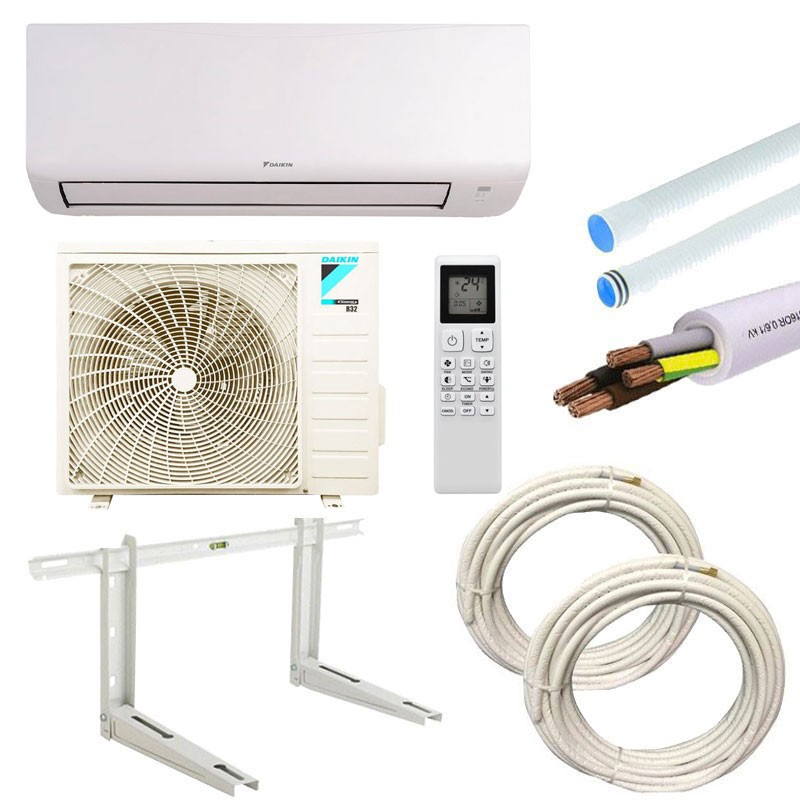

The kit consists of:
-

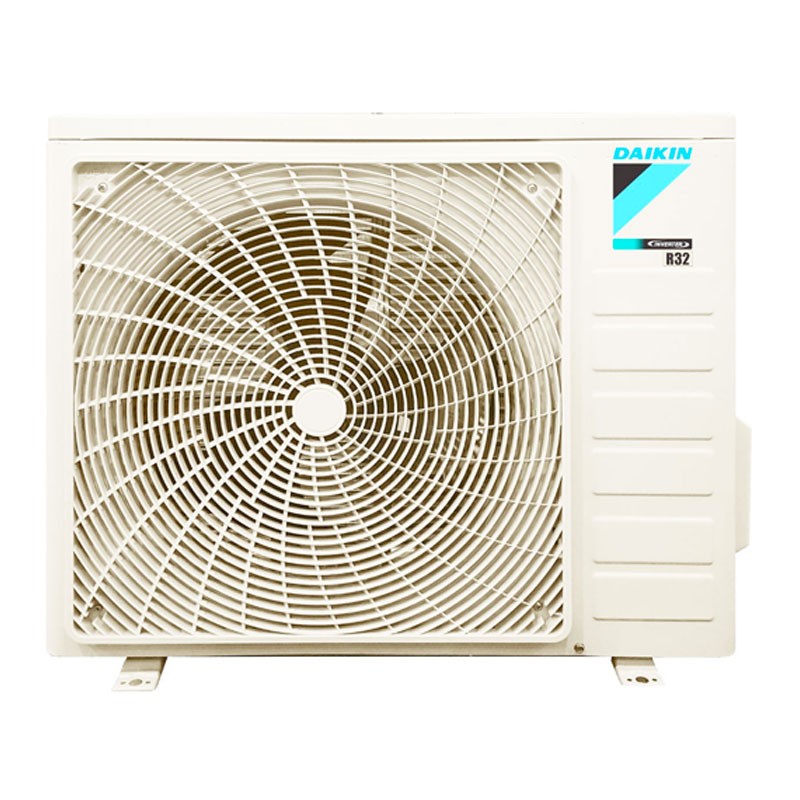

1 Outdoor Unit RXC25D
-

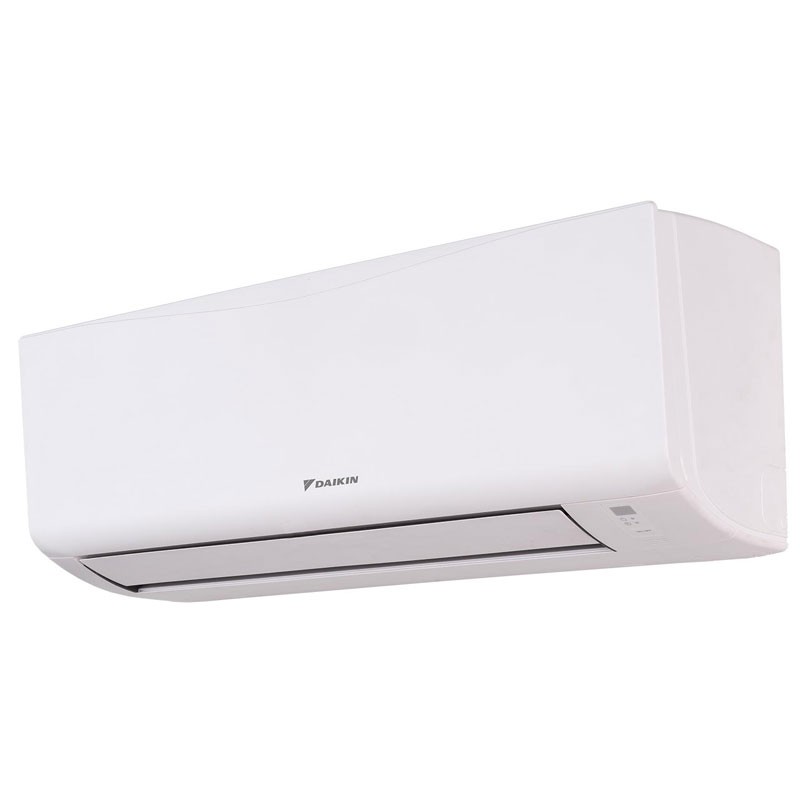

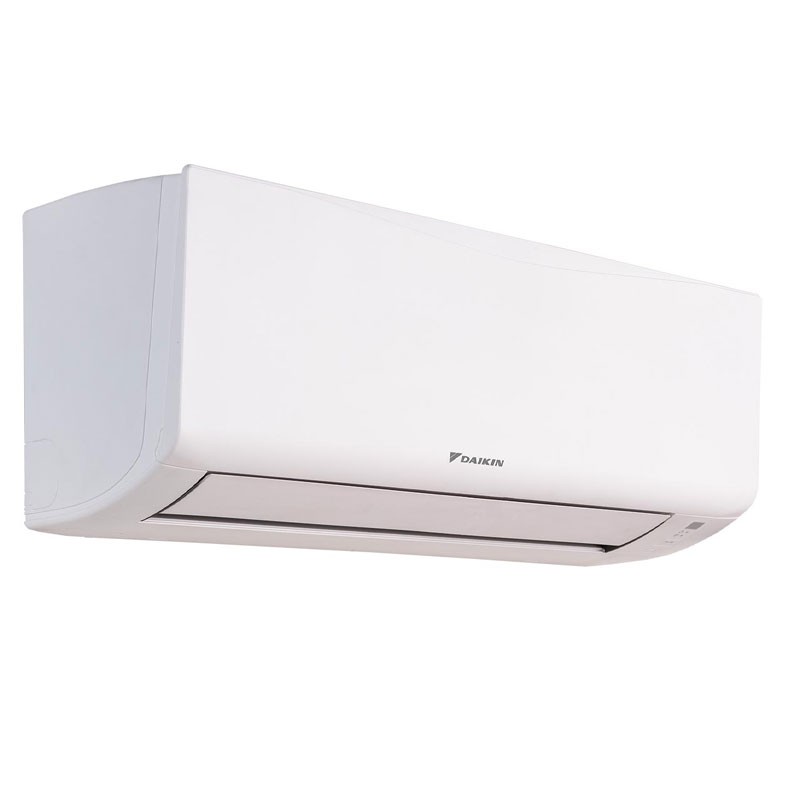

1 Indoor Unit FTXC25D
-
1 Remote Control
-
Installation Kit
Possibility of control with Smartphone via Wi-Fi (optional to add item BRP069B45).
For a room of approximately 27m²
The air conditioner will be delivered pre-charged with gas R32
The air conditioner is also an heat pump, therefore also suitable for heating environments in winter.
€744.97
Items Available: 112
: 101
Air conditioners of the same series
Frequently bought together
Daikin Sensira 9000BTU 2.5KW Air Conditioner
Sensira is one of the latest wall-mounted air conditioner models created by DAIKIN, it is in the upper level of EcoPlus entry of the brand and has an excellent ratio of performance, functions and price range. It has a modern and up-to-date design that echoes the classic lines of DAIKIN air conditioners, great technical quality, many useful and intelligent additional functions, and is equipped with the new R32 Gas.
The aesthetics of the new DAIKIN Sensira air conditioner has a classic and modern design at the same time because it is the result of a mix of straight and semi-curved lines which, enhanced by the color white, create a pleasant effect capable of adapting it to all environments; Indoor Units that can be installed in homes, businesses, offices, hotel environments and wherever there is a need. Its small size makes it easy to install.
The DAIKIN Sensira air conditioner distributes air evenly and constantly, thanks in part to the automatic vertical swing of the supply baffle and automatic or manual 5-step speed adjustment.
Advanced Functions and Advantages:
- "Powerful" function: For rapid cooling or heating of the room, activated with a simple command. Once deactivated, the unit automatically returns to the preset mode.
- Sleep Mode: Ideal for nighttime, this function ensures maximum comfort by automatically managing temperature fluctuations during sleep.
- Intelligent Control: Automatic fan speed adjustment and automatic vertical oscillation of the baffles optimize even air distribution, improving room quality.
- Titanium Apatite Deodorizing Air Filter: An innovative filter that eliminates unpleasant odors such as tobacco and pet odors, improving air quality.
- Infrared Remote Control Included and Daikin App (optional BRP069B45): The infrared remote control allows you to easily control all air conditioner functions remotely. With the Daikin residential controller, you can also control the air conditioner via app, either from local network or the Internet.
Outdoor Unit Features and Easy Installation:
- Rugged Design: The outdoor unit is equipped with a high-performance and durable single rotary Inverter compressor. The blue fin treatment of its heat exchanger ensures a long service life, protecting it from corrosion even in the harshest weather conditions.
- Versatile Installation: Easy to install in residential, office, commercial or hotel settings. Daikin outdoor units can be placed on roofs, terraces or exterior walls, making installation convenient and safe.
- Height difference and Piping: The maximum piping length is 20 meters, with a maximum height difference between the indoor and outdoor unit of 10 meters, allowing flexible installation in rooms of different sizes.
Standby Mode and Energy Saving:
- Standby Energy Saving: When the unit is in standby mode, consumption is reduced by about 80%, ensuring continuous energy efficiency even when not in use.
- Automatic Restart: In the event of a power failure, the air conditioner automatically restarts with the original settings, ensuring continuity in comfort.
Energy Performance
Cooling
| Parameter | Value |
|---|---|
| Cooling capacity (Min./Max.) | 1.3 / 3.0 kW |
| Power consumption Cooling (Min./Nom./Max.) | 0.30 /0.765 /1.15 kW |
| Energy efficiency class | A++ |
| Capacity Pdesign | 2.57 kW |
| SEER | 6,84 |
| Annual energy consumption | 131 kWh/a |
| EER | 3,35 |
Heating
| Parameter | Value |
|---|---|
| Heating capacity (Min./Max.) | 1.30 / 4.00 kW |
| Heating input power (Min./Nom./Max.) | 0.28 /0.750 /1.35 kW |
| Energy efficiency class | A+ |
| Pdesign capacity | 2.23 kW |
| SCOP/A | 4,45 |
| Annual energy consumption | 701 kWh/a |
| COP | 3,79 |
Indoor Unit
| Parameter | Value |
|---|---|
| Dimensions (HxWxD) | 288 × 770 × 234 mm |
| Weight | 9.00 kg |
| Air filter | Removable / washable |
| Air Flow Rate Cooling (Quiet/Low/Medium/High) | 5.4 /6.1 /8.1 /10.8 m³/min |
| Sound Power Cooling | 57 dBA |
| Sound pressure level Cooling (Silent/Low/High) | 21 / 26 / 40 dBA |
| Control system | Infrared Remote Control ARC486A2 |
Outdoor Unit
| Parameter | Value |
|---|---|
| Dimensions (HxWxD) | 550 × 658 × 273 mm |
| Weight | 24 kg |
| Sound Power Cooling | 58 dBA |
| Sound pressure level Cooling (High) | 45 dBA |
| Operating range Cooling | 10 ~ 46 °C (Outdoor T.) |
| Operating range Heating | -15 ~ 18 °C (Outdoor T.) |
| Refrigerant | R-32 |
| GWP | 675,0 |
| Refrigerant charge | 0.550 kg / 0.371 TCO₂eq |
| Liquid piping connection | Ø 6.35 mm (1/4") |
| Gas pipeline connection | Ø 9.52 mm (3/8") |
| Maximum pipeline length | 20 meters |
| Length without additional refrigerant charge | 8 meters |
| Additional refrigerant charge | 0.017 kg/m (over 7.5 m) |
| Maximum indoor-outdoor height difference | 15.0 meters |
| Power supply | 1~ / 50 Hz / 220-240 V |
| Fuse (MFA) | 16 A |
Specifications of the products in the Kit
Wall Bracket for Outdoor Unit
| Feature | Detail |
|---|---|
| Bracket Material | Galvanized and powder coated steel |
| Anti-vibration feet | Included, with quick insertion |
| Hardware | Stainless steel in the KLIMA STRONG INOX and KLIMA TOP INOX models |
| Special Models | KLIMA STRONG and KLIMA HEAVY for non-standard machines |
| Top of the range | KLIMA TOP shelf for maximum quality |
| Coloring | White RAL 9002 |
| Accessories available | KLIMA GROUND and KLIMA FOOT anti-vibration bases for floor mounting |
Dimensions
| Parameter | Value |
|---|---|
| Arm length (L1) | 420 mm |
| Height | 400 mm |
| Bracket thickness | 15/10 mm |
| Crossbar length | 780 mm |
Flexible Condensate Hose D. 17-20 mm (10 m)
| Feature | Detail |
|---|---|
| Model | Bi-extruded corrugated hose |
| Structure | Double-layer polypropylene (biextrusion) |
| Type | Anti-crush, flexible |
| Length | 10 meters |
| Diameter | 17-20 mm |
| Application | Specifically for condensate drainage; ideal for undercut installation |
Technical Specifications
| Parameter | Value |
|---|---|
| Material | UV-stabilized polypropylene |
| Operating temperature range | -30 °C to +75 °C |
| UV protection | Yes |
| Crush resistance | High |
Cable Included
| Feature | Value |
|---|---|
| Length | 10 meters |
| Type | Double-insulated flame-retardant cable |
| Structure | 5 x 1.5 mm² (5×1.5 mm²) conductors |
| Applications | Ideal for electrical connections in air conditioning and climate control systems |
Tecnogas FAST PIPE Kit
Kit composition
| Element | Detail |
|---|---|
| Pipe 1 | 1/4" diameter (Ø 6.35 mm), length 6 m, tapered female-female connections, copper gaskets included |
| Pipe 2 | Diameter 3/8" (Ø 9.52 mm), length 6 m, tapered female-female connections, copper gaskets included |
| Compatibility | Air conditioners 9,000 / 12,000 BTUs |
Structure of Compartmentalized Hose
| Layer/Material | Description |
|---|---|
| Inside | Closed-cell polyethylene foam |
| Polymer barrier | Barrier polymer + 4-layer aluminum film |
| Intermediate layer | Polyamide long-chain |
| Reinforcement | High-tenacity synthetic fiber |
| Outer coating | Anti-UV and anti-IR film |
Technical Characteristics
| Parameter | Value |
|---|---|
| Fittings | "Propeller" Brass: Calipers, Screwdrivers, Crimps |
| Applications | F-gas refrigeration circuits containing R410A, R32, R134A, R404A, R407C |
| Operating temperature range | -30 °C to +110 °C (max 130 °C non-continuous) |
| Maximum operating pressure | 100 bar |
Le kit est un peu cher, mais complet, la climatisation fonctionne très bien, peu bruyante
Bon matériel au top en train d'installation pas encore en service
parfait, silencieux et design, je suis contente !!
Merci vraiment silencieux et chauffe vite installée avec un professionnel et le kit est top. On verra cet été pour la faire fonctionner. Fini les grosses chaleur. Electtrotec disponible pour tous renseignements.
Tout est ok, je recommande, livraison et produit conforme :)
Matériel tout à fait conforme à la présentation et le résultat est complètement satisfaisant
Pas encore mis en service juste unité extérieur et intérieure en place
Produit conforme mais attention à la mise en service qui requiert une pompe à vide.
Laisser au moins un des côtés non sertis
Galère pour trouver les embouts compatibles
Obligé de trifouiller un truc pour raccourcir le fast pipe
Très bon produit, et prix imbattable. Seul bémol: le transporteur ne m'a pas fourni le câble d'alimentation.
Data sheet
- KIT: Monosplit with KIT
- Air conditioners: Wall-mounted
- Gas: R32
- Power: 9000 BTU (2,5 Kw)
- System: Monosplit
- Room Size: 27m²
- Energy class: A++
- Series: Sensira
