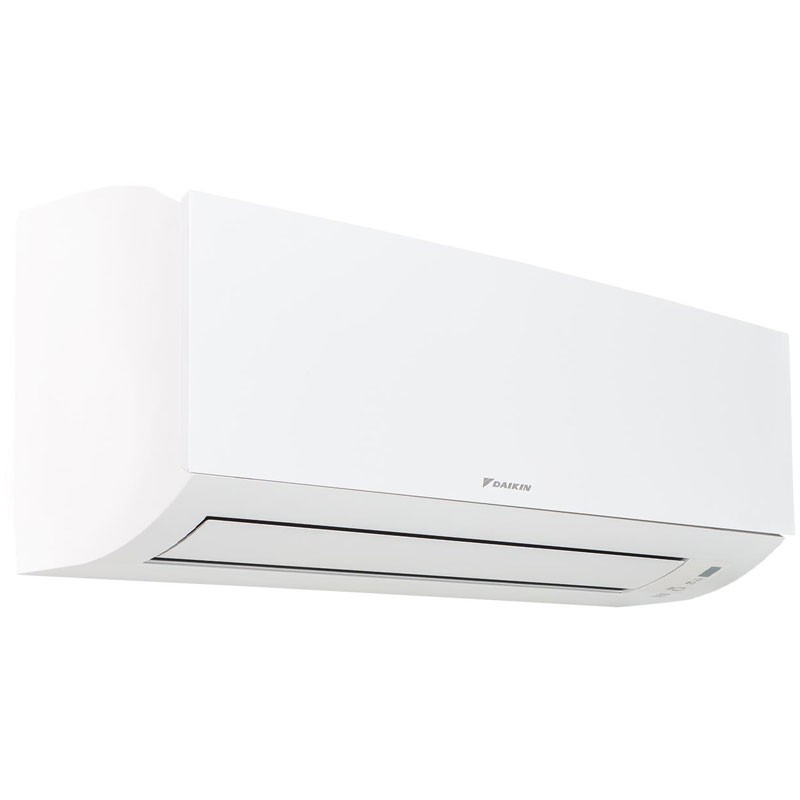

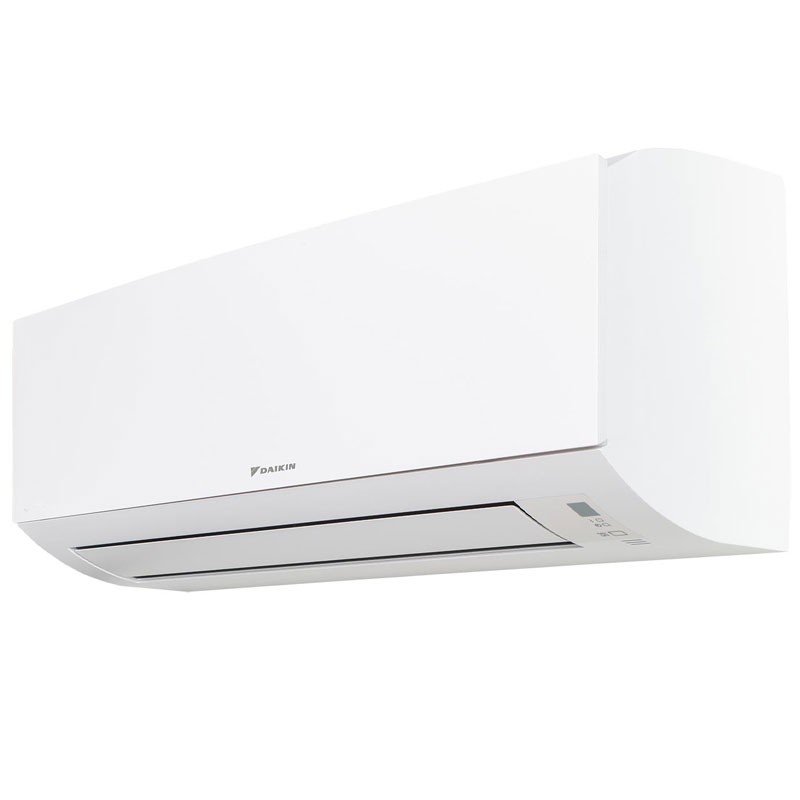

Sensira is one of the latest wall-mounted air conditioner models created by DAIKIN, it is in the upper EcoPlus entry level of the brand and has an excellent ratio of performance, functions and price range. It has a modern and up-to-date design that echoes the classic lines of DAIKIN air conditioners, great technical quality, many useful and intelligent additional functions, and is equipped with the new R32 Gas.

The aesthetics of the new DAIKIN Sensira air conditioner has a classic and modern design at the same time because it is the result of a mix of straight and semi-curved lines which, enhanced by the color white, create a pleasant effect capable of adapting it to all environments; Indoor Units that can be installed in homes, businesses, offices, hotel environments and wherever there is a need.

Its small size makes it easy to install.

he DAIKIN Sensira air conditioner distributes air evenly and constantly thanks in part to the automatic vertical oscillation of the supply air baffle and automatic or manual 5-step speed adjustment.



Advantages and Features:

• The flat and elegant front panel harmonises easily with any type of furniture and is easier to clean
• Choosing an R-32 product reduces environmental impact by 68% compared to R-410A systems and results in a direct reduction in energy consumption due to high energy efficiency
• Daikin outdoor units are well-maintained and robust and can be easily installed on a rooftop or terrace, or simply against an exterior wall
• Daikin outdoor units have a heat exchanger with an anti-corrosion treatment (blue fin) that ensures great resistance to the harshest weather conditions
• Outdoor units for single-split applications
• Seasonal efficiency values up to A++ class in cooling
• Daikin Residential controller (optional): ability to control the indoor unit from anywhere via app, local network or Internet.
• Powerful mode: Allows rapid cooling or heating of the room; once the "Powerful" mode is turned off, the unit returns to the preset mode
• Sleep mode: comfortable This innovative mode increases comfort by managing temperature fluctuations during the night
• Automatic fan speed adjustment: Automatically selects the fan speed to reach or maintain the set temperature
• Dehumidification program: Manages the reduction of moisture in the air, preventing excessive cooling
• Air filter: Eliminates airborne dust particles, improving air quality

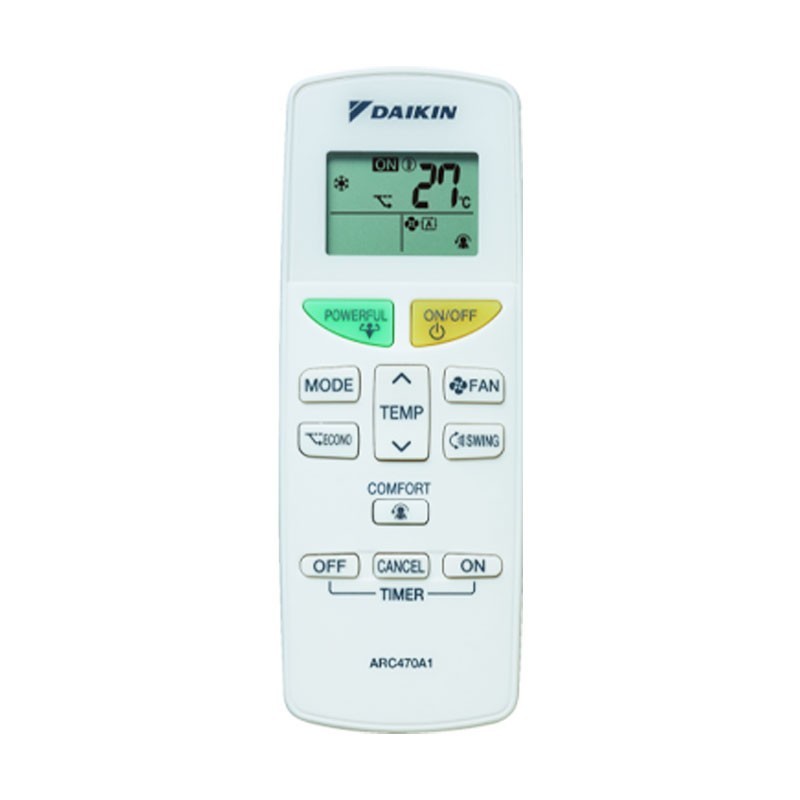

• Infrared remote control: Allows remote control of air conditioner functions
• Self-diagnostics: Simplifies maintenance by indicating system malfunctions or malfunctions
• Energy-saving standby mode: Energy consumption is reduced by about 80% in standby mode
• Ventilation only: The unit can also be used in ventilation mode only, without cooling or heating
• Automatic mode switching: Automatically selects cooling or heating mode to maintain the set temperature
• Automatic vertical oscillation: Ability to select automatic vertical movement of the supply air baffles, to make airflow and temperature distribution uniform throughout the room
• Step fan speed (3 steps): Allows selection of different fan speed values (2 steps)
• Titanium apatite deodorizing filter: Decomposes annoying odors such as tobacco and animal odors
• 24-hour timer: Can be set to start the unit at any time over a 24-hour period
• Automatic restart function: After a power failure, the unit automatically restarts with the original settings.



Technical Features:



Cooling:

• Min/std/Max Capacity: KW 1.3/3.50/4.00
• Rated input power kW 0.31/1.8/1.4
• SEER 6.87
• Energy Class: A++
• EER 3.24
• Indicative annual energy consumption kW/a 175

Heating:

• Min/std/Max Capacity: KW 1.3/3.9/4.80
• Rated Power Consumption 0.25/1.05/1.50
• SCOP: 4.28
• Seasonal energy efficiency class A+
• COP 3.71
• Indicative annual energy consumption: kWh/a 732

Indoor Unit Features:

• Dimensions: (HxWxD) 291x770x232mm
• Weight 9.0Kg
• Treated Air Flow Rate Cooling Quiet/Low operation 5.4 /6.5 /9 /10.8 cubic meters/min
• Dehumidification capacity l/hr 1
• Sound pressure level Cooling Silent/Low operation dBa 21/26/39
• Sound Power Level dBA 55

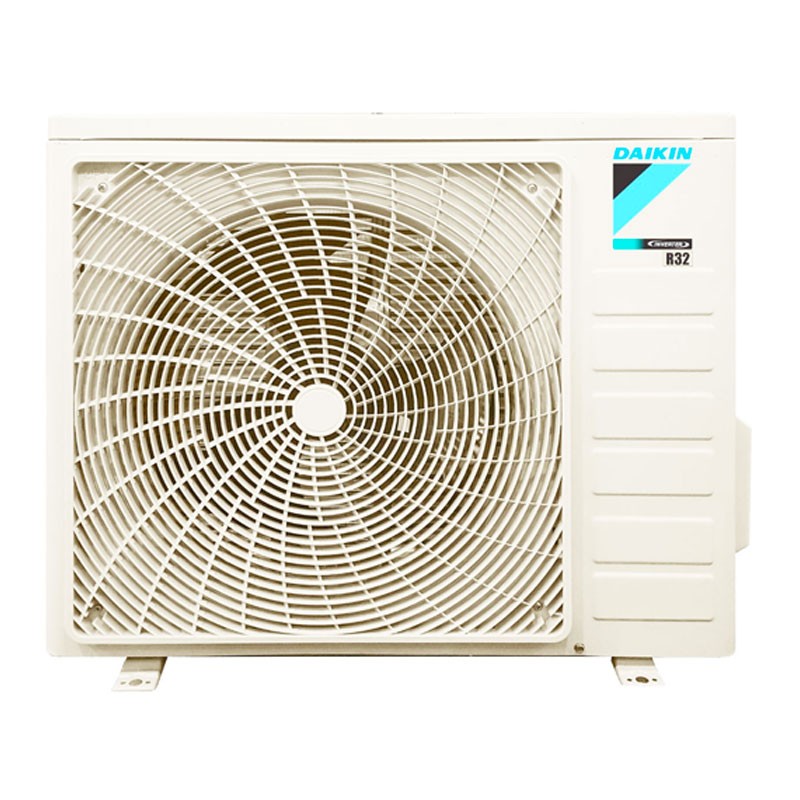

Outdoor Unit Features:

• Dimensions: (HxWxD) 550x740x337mm
• Weight 25.5Kg
• Sound Pressure Level dBa 46
• Sound Power Level dBA 60
• Power Supply Single Phase 220-240 / 50Hz
• Liquid/Gas Piping Connection 6.4 (1/4") - 9.52 (3/8")
• Piping length from ue/ui max 20 meters
• Piping length from ue/iu without additional charge up to 10 meters
• Max height difference between indoor/outdoor unit 12 meters
• Refrigerant Type: R32 Gas
• Operating range Cooling CBS-10-46
• Operating range Heating CBU -15-18
• Refrigerant Charge Kg 0.75

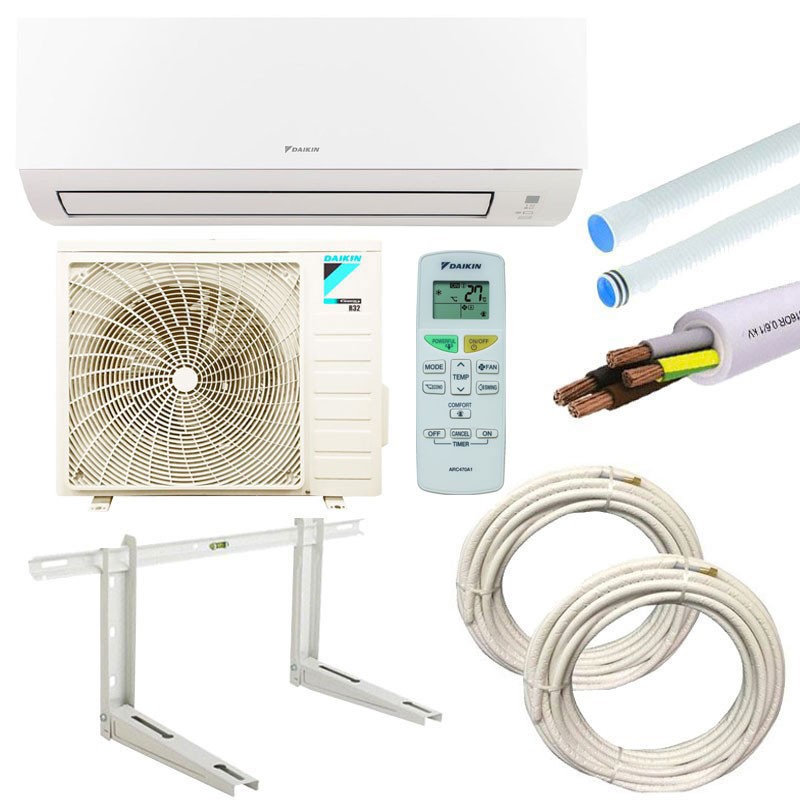

Specifications of the products in the Kit



Wall brackets for 9000 and 12000 btu air conditioners for outdoor motor:

• Galvanized and powder coated steel brackets
• Brackets complete with quick-fit anti-vibration feet
• Stainless steel hardware in KLIMA STRONG INOX and KLIMA TOP INOX SCREWS items.
• KLIMA STRONG and KLIMA HEAVY for non-standard machines
• KLIMA TOP shelf for maximum quality
• KLIMA GROUND and KLIMA FOOT anti-vibration bases available for floor installations
• White RAL 9002
• Arm length L1 420 mm
• Height 400 mm
• Bracket thickness 15/10 mm
• Crossbar length 780 mm



Arnocanali condensate hose D. 17-20mm 10 meters:

BIESTRUSO anti-crush corrugated hose. Manufactured with double layer of POLYPROPYLENE to ensure maximum safety in under-track use. Hose constructed from Polypropylene stabilized against UV rays. Operating temperature - 30°C + 75°c.



10 meters Double Insulated Flameproof Cable 5X1.5 mmq.



Tecnogas FAST PIPE kit consisting of:

• 2 pipes 6 meters one with female-female connections Diameter 1/4 (diameter 6.35) and one with female-female connections Diameter 3/8 (diameter 9.52) conical with copper gaskets included. Suitable for 9000/12000btu air conditioners.



Construction characteristics of the compartment pipe:

• Closed-cell expanded polyethylene
• Polymer barrier
• 4-layer aluminum film
• polyamide long-chain
• high-tenacity synthetic fiber
• anti-Uv and anti-IR coating
• anti-Uv film



Fittings: brass "Propeller": Calipers, Screwdrivers, Crimps.

Field of use F-gas refrigeration circuits containing R410A-R32-R134A-R404A-R407C

Operating temperatures -30°C/110°C (Max 130 C° non-continuous)

Maximum operating pressure 100 Bar
