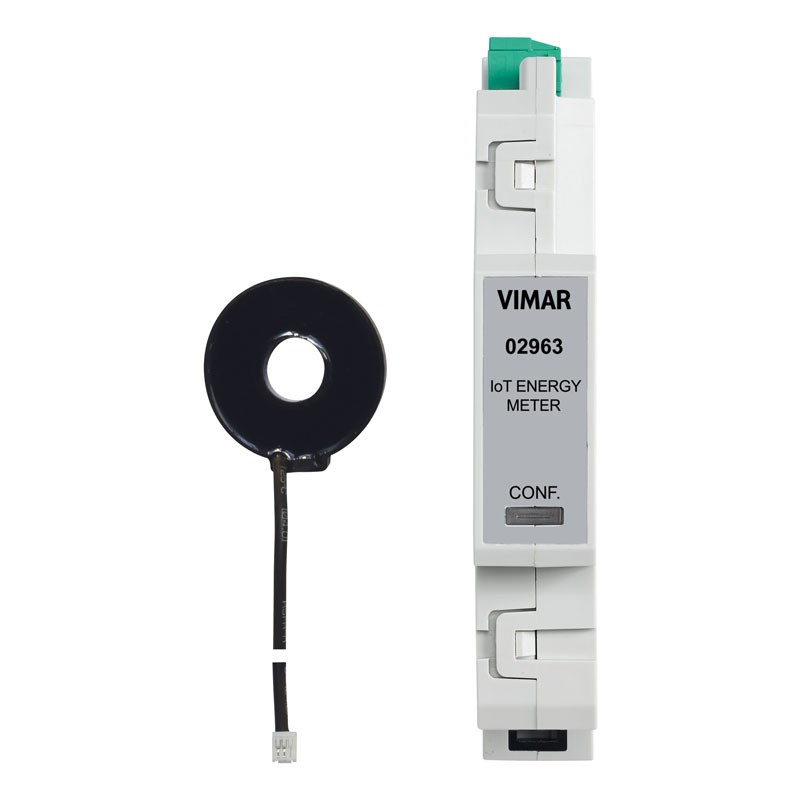

Energy measurement connected Vimar IOT single-phase 02963
VIW 02963
8007352648487
Vimar IOT single-phase connected energy meter for measuring instantaneous and historical electricity consumption and production (with hourly, daily, monthly, yearly resolution):
- load control function (max 4 loads)
- 1 input for toroidal current sensor provided
- detectable powers 25 W-10 kW
- single-phase power supply 100-240 V 50/60 Hz
- IoT technology based on Bluetooth technology 5.0 standard to create the VIEW Wireless mesh system
- installation on DIN rail (60715 TH35), occupies 1 module of 17.5 mm.
It allows to control the energy consumption of the plant or the production of a photovoltaic system.
Energy measurement connected Vimar IOT single-phase 02963
€49.13
€49.13
Tax included
Tax included
Pay in installments with Klarna
Items Available: 40
It must be connected to the single-phase line (or to a single line of a three-phase system) through the current probe provided. In a system it is possible to install only one meter for the total consumption (or of a single load); in systems with photovoltaics it is possible to install a maximum of two meters (one for the exchange meter and one for the production meter). It can be used to prevent the overload intervention of the switch present in the electricity meter, managing the disconnection of a maximum of 4 loads, according to the priority established by the user.
Features:
- Rated supply voltage: 100-240 V~, 50/60 Hz
- Absorption: 6 mA at 100 V~, 4 mA at 240 V~ (6-4 mA)
- Detectable powers: from 25 W to 10 kW
- Inputs for current sensors (sensor supplied)
- Power dissipation: 0.55 W
- Transmitted RF power: < 100mW (20dBm)
- Frequency range: 2400-2483.5 MHz
- Terminals: - 2 terminals (L and N) for line and neutral; - connector for current probe
- Frontal CONF button for configuration/reset
- Blue LED for configuration status
- Operating temperature: -10 ÷ +40 °C (for indoor use)
- Mains voltage variation not greater than ±10%.
- Degree of protection: IP20
- Overvoltage category: III
- Measurement category: CAT III
- Altitude: up to 2000 m
- Pollution degree: 2
- Relative humidity: 80% 31°C - 50% 40°C
- 1 x 17.5 mm module
- Configuration from App View Wireless for Bluetooth technology system.
Ottimo contatore connesso con app Vimar. Se già si ha il gateway questo è da prendere per tenere sotto controllo i consumi ed eventualmente gestire i carichi con gli attuatori connessi Vimar.
devo ancora provarlo per cui non sono in grado di valiutarlo correttamente
Non si interfaccia con Alexa, ma solo con l'app nativa (Vimar). Di conseguenza, spero solo al momento, non è possibile creare Routine ma solo di conoscere la corrente misurata accedendo all'app di Vimar.
Data sheet
- Smart System:
- Energy Management
