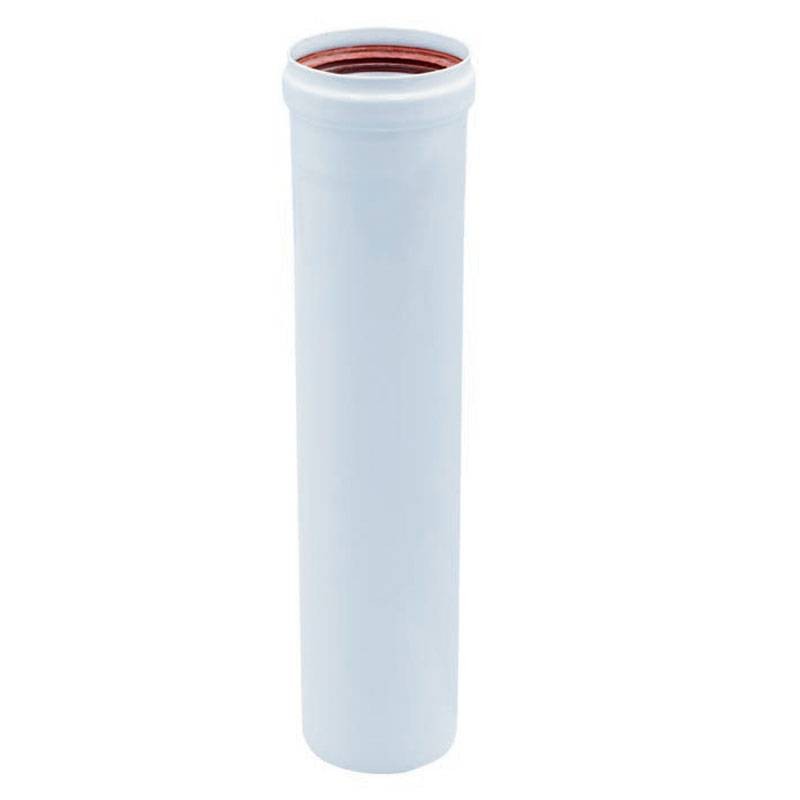

Ferrari extension for boilers and water heaters M/F D 80 mm aluminum L 1000 mm 106981
Ferrari extension pipe for boilers and water heaters with the following features:
- Connections: Male/Female
- Diameter: 80 mm
- Thickness: 1 mm
- Made of extruded aluminum painted white
- For vertical or sub horizontal sections
- Complete with gasket
- Internal installation
- Length: 1000 mm
Install female coupler facing upward.
Ferrari extension for boilers and water heaters M/F D 80 mm aluminum L 1000 mm 106981
Tax included
The single-wall system consists of rigid single-wall modular elements made of white enameled aluminum with a minimum thickness of 1 mm. It is used as a smoke duct or as a combustion air supply duct for the generator, according to EN 1856-2.
The modular elements have a classical calibrated male-female socket coupling with sealing gasket, in accordance with European standard EN 14241-1. The system is suitable for receiving flue gases with a maximum operating temperature of up to 200 °C.
Use: Ducts, smoke ducts, metal chimneys, air exhalations slaved to atmospheric, pressurized, traditional blown-air type heat generators, kitchen hoods for domestic use.
Data sheet
- Type:
- Piping
- Connection:
- M/F
