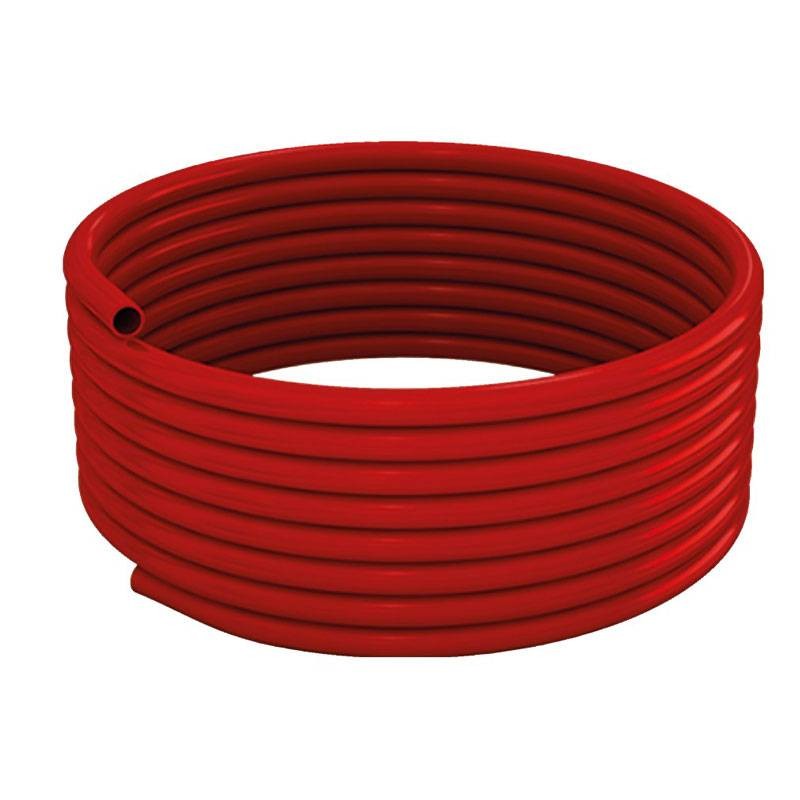

Giacomini 5-ply PEX-b pipe 17x2 mm 8/10 bar red 600m R996TY552

Giacomini
Giacomini
GIM R996TY552 8009902370602

Giacomini 5-layer PEX-b pipe with intermediate anti-oxygen barrier, flexible and durable for radiant panel systems, with the following characteristics:

  • Dimensions: 17x2 mm

  • Ideal for: Laying on radiant panels

  • Max pressure: 10 bar (Class 4), 8 bar (Class 5)

  • Not suitable for: Transportation of potable water

  • Color: Red

Sale price is per meter, sellable only by skein of 600 meters.

Do you have questions about this product or did you not find what you were looking for? Ask us!
Giacomini 5-ply PEX-b pipe 17x2 mm 8/10 bar red 600m R996TY552
€0.85
€0.85

The minimum purchase order quantity for the product is 600.

€0.85
Tax included
Calculate shipping cost
Items Available: 4800
Further availability of the manufacturer
€0.85

The minimum purchase order quantity for the product is 600.

Buy it within and receive it from Wednesday, 24 December
Two-year warranty
Easy return within 14 days
Purchase with tax breaks

Are you a professional ?

Request access to

Trustpilot

Giacomini PEX-b 5-layer pipe: reliable performance for radiant systems

Giacomini pipe is the perfect choice for underfloor heating and cooling systems. Made of cross-linked polyethylene PEX-b, it features an intermediate anti-oxygen barrier that prevents oxygen from penetrating to the interior, thus safeguarding the metal components of the system and drastically reducing corrosion phenomena.

High strength and certified durability

The hose is designed to last more than 50 years, guaranteeing maximum tightness up to 10 bar pressure for Class 4 and 8 bar for Class 5. It complies with the most stringent ISO and DIN standards for oxygen permeability and thermohydraulic safety. Excellent pressure and temperature resistance allows its continuous use up to 90°C, with peaks up to 100°C in short periods.

Ideal for radiant panel systems

The pipe's great flexibility makes it easy to lay even in complex spaces, with a minimum bending radius of 5 times the outside diameter. It is the ideal option for floor, wall or ceiling systems, ensuring even heat distribution and environmental comfort.

Installation and usage notes

  • Install using compatible Giacomini fittings.

  • Make bends in compliance with the minimum radius of curvature (5x outer Ø)

  • Protect from direct sunlight and heat sources

  • Avoid shocks, crushing, contact with solvents

  • For structural crossings, protect with insulating sheaths

Technical Specifications Giacomini PEX-b Pipe

ParameterValue
Outer diameter 17 mm
Thickness 2 mm
Roll length 600 m
Color Red
Application class 4 e 5
Max pressure Class 4 10 bar
Max pressure Class 5 8 bar
Operating temperature -25°C / +90°C (max 100°C for short periods)
Coefficient of expansion 1.9 x 10?/K
Thermal conductivity 0.46 W/mK
Breaking load > 20 MPa
Elongation at break 350 %
Modulus of elasticity 670 MPa
Oxygen permeability Complies with ISO 17455 / DIN4726
Potable water suitability Not suitable
