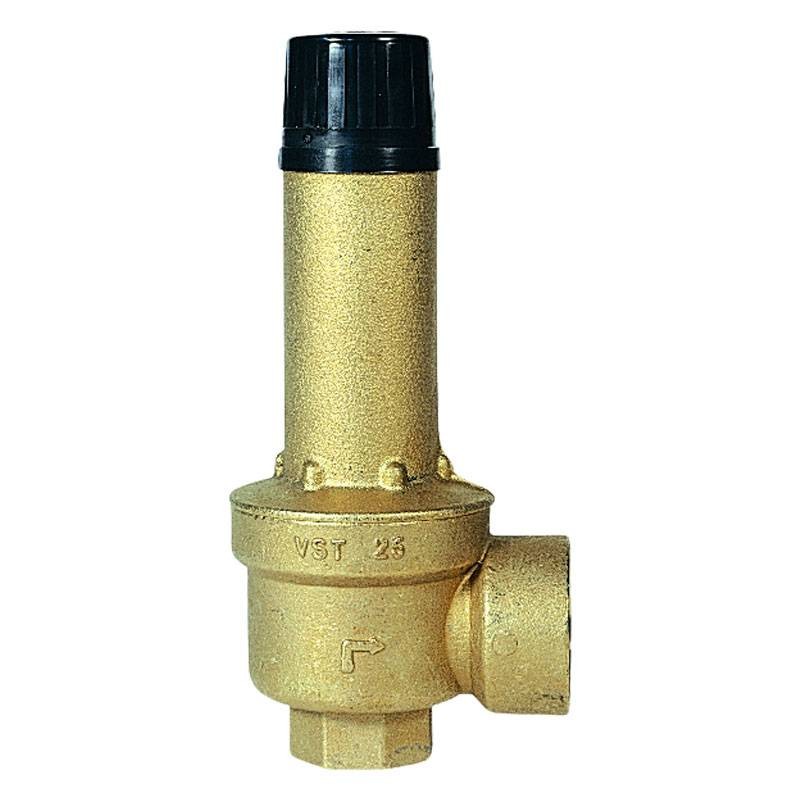

Watts VST diaphragm safety valve F/F 1 x 1 1/4 brass 0214150
Watts VST fixed calibration diaphragm safety valve with the following characteristics:
- Connection: Female/Female
- Fittings: 1 inch x 1 inch 1/4
- 5 bar
- Brass body and cap
- Fluids: water with up to 50% glycol
- Overpressure: 10%
- Closing gap: 20%
Watts VST diaphragm safety valve F/F 1 x 1 1/4 brass 0214150
Tax included
The VST Series safety valves, qualified and calibrated by INAIL, are devices which automatically, without the assistance of energy other than that of the fluid under pressure, discharge a quantity of fluid such as to prevent the pre-established safety pressure to protect the heat generator and system. The valves are designed and built in compliance with the specifications and requirements defined in the R Collection - 2009 Edition, technical application specification of the Ministerial Decree. 1-12-1975.
The VST Series safety valves are generally used in closed circuit heating systems with a nominal power greater than 35kW and which use hot water with a temperature lower than 110°C. The function of the safety valve is to protect the generator and the system from sudden, unexpected increases in pressure. The causes of valve intervention can be of various types:
- Rise of the operating fluid temperature above the pre-set maximum value with consequent uncompensated expansion
- Insufficient sizing of the expansion tank
- Excessive circuit filling pressure
The safety valve therefore remains inactive when the system is functioning normally.
Data sheet
- Type:
- Safety valves
- Connection:
- F/F
- Connections:
- 1 inch
1-1/4 inches
