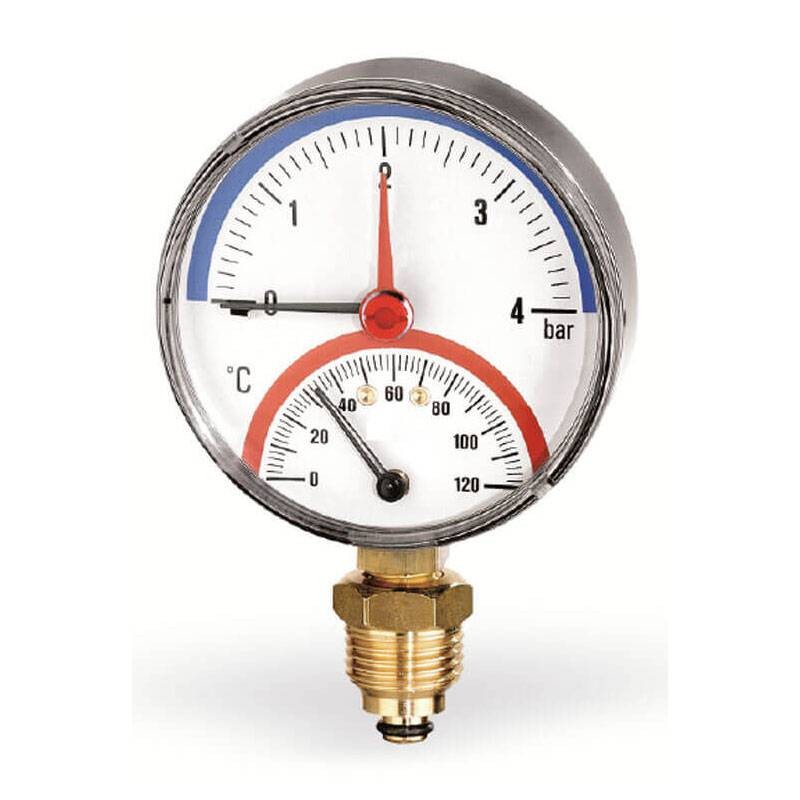

Watts thermomanometer TIRM-ABS 80 0-4 bar 0-120 °C radial connection PL4204BD03

Watts Water
Watts Water
CZZ PL4204BD03 3800152525553

Watts TIRM-ABS 80 thermomanometer with 0-4 bar/0-120°C scale and G1/2B radial connection. Equipped with durable plastic case and red indicator for clear reading, ideal for heating systems:

  • Dual scale: Measurement of pressure (0-4 bar) and temperature (0-120°C)

  • Radial connection: G 1/2 inch threaded connection for versatile installation

  • Quality materials: Sturdy plastic case with clear dial and Fimet Watts logo

  • High accuracy: Class 2.5 for pressure and class 2 for temperature

  • Red indicator: Highlights critical values for immediate control

  • Compact design: DN80, suitable for small spaces.

Do you have questions about this product or did you not find what you were looking for? Ask us!
Watts thermomanometer TIRM-ABS 80 0-4 bar 0-120 °C radial connection PL4204BD03
€24.42
€24.42

€24.42
Tax included
Calculate shipping cost
Items Available: 57
Further availability of the manufacturer
€24.42

Buy it within and receive it from Monday, 22 December
Two-year warranty
Easy return within 14 days
Purchase with tax breaks

Are you a professional ?

Request access to

Trustpilot

Watts thermomanometer TIRM-ABS 80 0-4 bar 0-120 °C PL4204BD03

Reliable performance for heating systems

The Watts TIRM-ABS 80 thermomanometer is designed to simultaneously monitor pressure and temperature in heating systems. The graduated scale from 0 to 4 bar and 0 to 120°C allows precise control, ensuring proper operation of systems.

Durable and practical construction

Durable plastic case protects the device from shock and wear, making it ideal for technical environments. The dial features a red indicator to quickly identify critical values, improving safety and operational efficiency. The Fimet Watts logo on the dial certifies the originality of the product.

Easy installation with radial coupling

The radial connection threaded G 1/2 inch back connection makes the thermomanometer easy to install and compatible with various system configurations. Compact design with DN80 nominal diameter allows installation even in limited space without compromising on performance.

Standards-compliant accuracy

The device guarantees an accuracy class 2.5 for pressure measurement and class 2 for temperature, conforming to the quality standards required for technical and industrial applications. These specifications make it reliable for maintenance and control of heating systems.

Technical Specifications

FeatureDetail
Case Black plastic
Transparent Transparent plastic with adjustable red index
Dial White aluminum
Index Black plastic
Attachment Copper alloy square side 14 mm
Manometer element Copper alloy Bourdon spring, tin alloy solder, C spring
Movement Copper alloy
Thermometric element Bimetal spiral
Automatic valve Brass - Polypropylene, hexagon side 21 mm
Reference Standards EN 837-1
Operating pressure Static: 75% of full scale value
Fluctuating: not applicable
For short periods: up to full scale value
Temperature limits Ambient: -5 ... +60°C
Fluid: +120°C maximum
Storage: -20 ... +60°C
Thermal drift Manometric part only: ±0.04%/1 Kelvin of deviation from reference temperature (+20°C)
Accuracy class cl. 2.5 (Pressure), cl. 2 (Temperature)
Degree of protection IP31 per EN 60 529 / IEC 529
Individual weight 0.135 kg

There are no reviews

Data sheet

Type:
Thermomanometers
Connections:
1/2 inches
