Watts thermomanometer TIM-ABS 80 0-4/0 bar 0-120 °C rear connection PN4204BD12

Watts Water
Watts Water
CZZ PN4204BD12 3800152525843

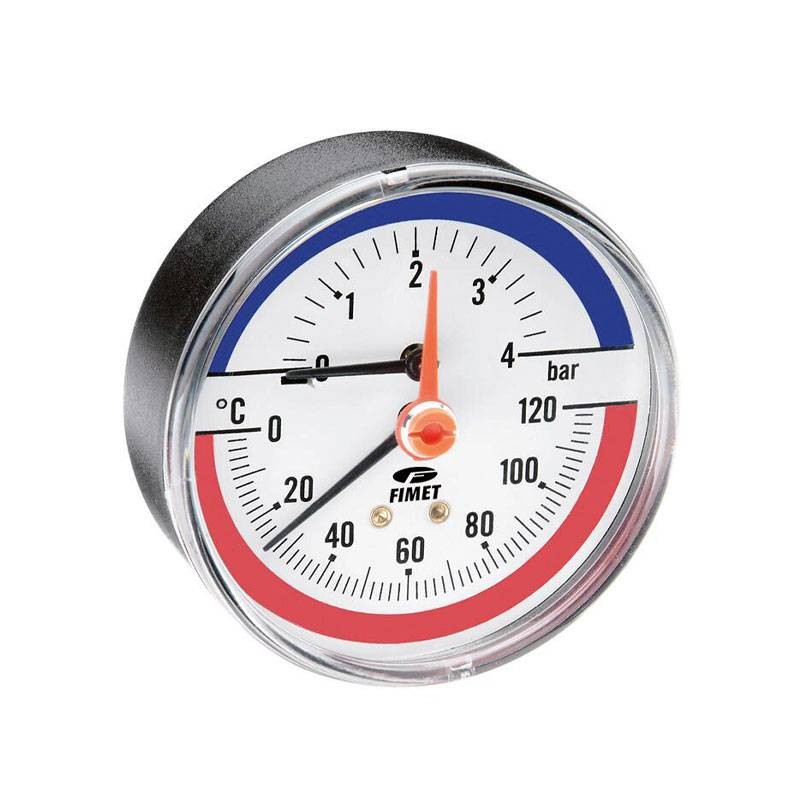

DN80 Watts TIM-ABS 80 thermomanometer with 0-4 bar scale and 0-120°C temperature. Features G1/2B rear connection, durable plastic case and red indicator for clear reading. Ideal for heating systems:

  • Dual scale: Pressure (0-4 bar) and temperature (0-120°C) measurement.

  • Rear connection: G 1/2 inch threaded connection for easy installation

  • Durable materials: Rugged plastic case with clear dial and Fimet Watts logo

  • Certified accuracy: Class 2.5 for pressure and class 2 for temperature

  • Red indicator: Facilitates visual inspection of critical values

  • Compact design: DN80, ideal for tight spaces

Do you have questions about this product or did you not find what you were looking for? Ask us!
Watts thermomanometer TIM-ABS 80 0-4/0 bar 0-120 °C rear connection PN4204BD12
€16.65
€16.65

€16.65
Tax included
Calculate shipping cost
Items Available: 42
Further availability of the manufacturer
€16.65

Buy it within and receive it from Monday, 22 December
Two-year warranty
Easy return within 14 days
Purchase with tax breaks

Are you a professional ?

Request access to

Trustpilot

Watts thermomanometer TIM-ABS 80 0-4/0 bar 0-120 °C PN4204BD12

Reliable performance for heating systems

The Watts TIM-ABS 80 thermomanometer is designed to simultaneously monitor pressure and temperature in heating systems. With a scale of 0 to 4 bar for pressure and 0 to 120°C for temperature, it enables precise and continuous monitoring of operating conditions, ensuring system efficiency.

Durable and functional structure

The high-quality plastic case protects the thermomanometer from shock and wear, making it ideal for technical environments. The dial features a red indicator that facilitates the identification of critical values, improving safety and plant maintenance. The Fimet Watts logo guarantees the originality and quality of the product.

Easy installation with rear connection

The thermomanometer has a G 1/2-inch threaded rear connection, which simplifies its installation in various system configurations. The compact design with DN80 nominal diameter makes it suitable even for limited space while maintaining high standards of performance and reliability.

Accuracy and compliance with standards

The device offers class 2.5 accuracy for pressure and class 2 accuracy for temperature, meeting the standards required for technical and industrial applications. This certified accuracy makes it ideal for the control and maintenance of professional heating systems.

Technical Specifications

Feature Detail
Case Black plastic
Transparent Transparent plastic with adjustable red index
Dial White aluminum
Index Black plastic
Attachment Copper alloy square side 14 mm
Manometer element Copper alloy Bourdon spring, tin alloy solder, C spring
Movement Copper alloy
Thermometric element Bimetal spiral
Automatic valve Brass - Polypropylene, hexagon side 21 mm
Reference Standards. EN 837-1 and EN 13190
Operating pressure Static: 75 % of full scale value
Fluctuating: not applicable
For short periods: up to full scale value
Temperature limits Ambient: -5 ... +60°C
Fluid: +120°C maximum
Storage: -20 ... +60°C
Thermal drift Manometric part only: ±0.04%/1 Kelvin of deviation from reference temperature (+20°C)
Accuracy class cl. 2.5 (Pressure), cl. 2 (Temperature)
Degree of protection IP31 per EN 60 529 / IEC 529
Individual weight 0.165 kg

There are no reviews

Data sheet

Type:
Thermomanometers
Connections:
1/2 inches
