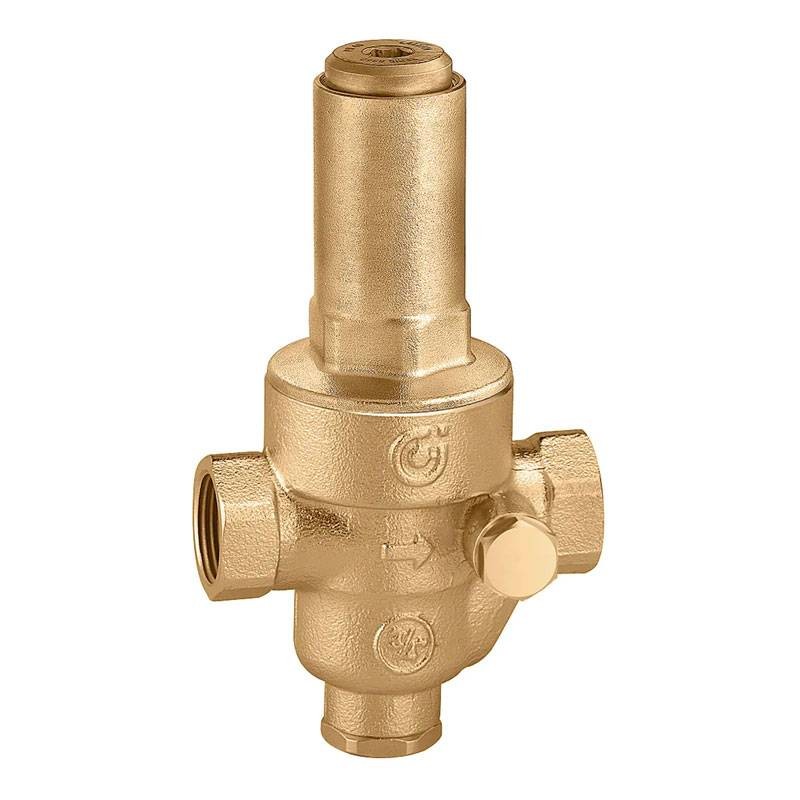

Caleffi Pressure reducer with removable cartridge F/F 1 inch 536260
CAL 536260
8016615014983
Caleffi Pressure Reducer with Removable Cartridge and gauge connection, an essential device for regulating and stabilizing water pressure in domestic and commercial systems. Designed to ensure constant downstream pressure regardless of upstream variations, with the following features:
-
Connections: Female/Female 1 inch
-
Pressure gauge connection: 1/4 female
-
Maximum upstream pressure: 25 bar
-
Pressure adjustment range: 0.56 bar
-
Material: DR anti-dezincification brass
-
Removable cartridge for easy maintenance
-
Quiet and reliable operation
-
Stable pressure control
-
Pressure gauge is not included in the package (to be purchased separately)
€152.87
Items Available: 2
: 1
Frequently bought together
Pressure reducer with removable cartridge Caleffi F/F 1 inch
The pressure reducer ensures a constant downstream pressure, even with changes in inlet pressure. This makes it ideal for protecting domestic plumbing systems from pressure surges, improving their longevity and efficiency.
Removable cartridge design
Thanks to the removable cartridge, maintenance of the reducer is quick and easy, reducing service time and associated costs. Anti-dezincification brass construction ensures reliable performance over time.
Operation with dispensing
When a utility is opened on the water supply, the spring force becomes prevalent over the opposing force of the diaphragm; the plug moves downward, opening the passage to water. The greater the demand for water, the greater the decrease in pressure under the diaphragm, thus causing a higher fluid passage through the plug.
Operation without supply
When the utility is completely closed, the downstream pressure rises and pushes the diaphragm upward. In this way, the plug closes, preventing the passage of fluid and keeping the pressure constant at the set value. A slight difference to the advantage of the force exerted by the diaphragm against that exerted by the spring causes the device to close.
Main applications:
-
Residential and commercial plumbing systems
-
Protection of sanitary and heating devices
-
Pressure regulation for efficient water use
There are no reviews
Data sheet
- Type: Pressure reducers
- Connection: F/F
- Connections: 1 inch
