SPECIFICATION ITEMS:

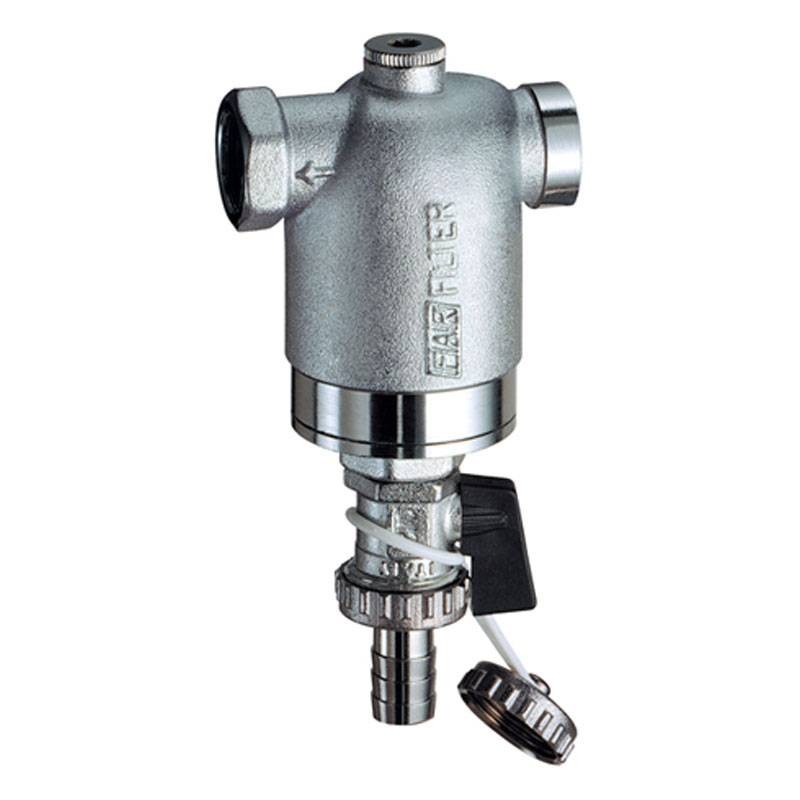

• Filter for heating, cooling and sanitary systems, chrome-plated CR brass, 3/4 female-female connection, inspectable and replaceable filter with AISI 304 stainless steel mesh, 300µm filtration degree, drain cock, pressure gauge connection. Max operating temperature 95°C. Max operating pressure 25 bar.




Overview: The FAR domestic plant filter body is made entirely of corrosion-resistant brass by dezincification (CR brass), which is more resistant than normal brass to corrosion caused by stagnant or oxygen- and carbon dioxide-rich water that can affect the metal. Art. 3932 - 3933 - 3943 - 3944 Art. 3936 - 3937 - 3945 - 3946 Art. 3940 - 3941 - 3947 - 3948 Art. 3930 - 3931 Art. 3934 - 3935 Art. 3938 - 3939 This type of brass therefore guarantees a longer life of the material and the security of being able to enjoy cleaner water. Filters are available in sizes 1/2-3/4-1-11/4 and in male-male, male-female, female-female versions.

Installation: The filter should be mounted at the inlet of the domestic network, immediately after the fiscal meter and before the pressure reducer. This safeguards the entire system from impurities that could, over time, damage the installed accessories as well as impair their operation.

Features:

• Filter body material: Brass CC752S (CR) resistant to dezincification
• Filter mesh material: AISI 304 steel
• Degree of filtration: 300 µm
• Maximum operating pressure: 25 bar
• Maximum operating temperature: 95°C
• Connection sizes: 1/2"
• Available versions: female-female
