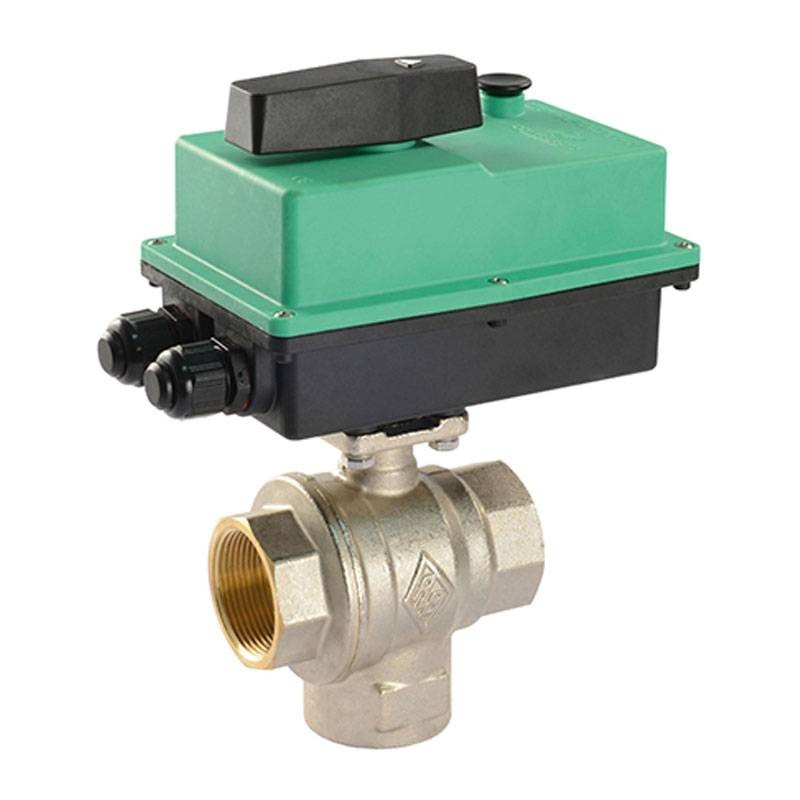

Comparato Compact Pro 3-Way Motorised Valve 230V 1 1/2 CY222AE3E5
CMP CY222AE3E5
Comparato COMPACT PRO Motorised valve made of high-quality brass, complete with ALL-IN-ONE electric actuator for precise and safe flow control. Auxiliary microswitches on opening and closing included. Ideal for industrial applications, HVAC systems, water treatment and alternative fluid systems, with the following features:
-
Number of ways: 3 Female/Female brass
-
Electrical control: All-in-One 2 points with relay/3 points without relay
-
Nominal diameter: DN40 (1 inch 1/2)
-
Power supply: 230V
-
Power consumption: 24VA
-
Nominal pressure: PN10
-
Operating time: 45 sec for 90 degrees
-
Degree of protection: IP67
-
Motor: Two-way synchronous, precision and reliability in flow control
€476.79
Items Available: 2
: 1
Comparato Motorised valve versatility and technology for fluid control
The Comparato Compact Pro 3-way motorised valve in 1 1/2-inch FFF vertical version, with brass body and integrated electric actuator, is designed for professional and intensive use in industrial, HVAC, water treatment, refrigeration and automation systems. Its compact and robust design, combined with the ALL-IN-ONE electrical control system, provides precise and quiet flow control even in harsh environments.
Total reliability for industrial and technical installations
Designed to work in systems with hot or cold fluids, potable water, glycol, compressed air or alternative energy fluids, the valve provides high mechanical and environmental resistance, thanks to its IP67 protection rating, making it suitable even in humid or dusty environments. The bi-directional synchronous motor enables smooth and controlled movement, with low noise at 42 dB(A) at a distance of 1 meter.
Advanced features: microswitches and manual opening
The system includes 2 additional microswitches to handle auxiliary signals in opening and closing, increasing the flexibility of the system. Manual opening from Above, with visual position indicator (arrow on lever), allows rapid intervention even in the absence of power supply, ensuring operational continuity and safety.
Energy efficiency and ease of installation
The actuator consumes only 24 VA and includes an internal 3W resistor for thermal protection. Electrical connections with internal terminal block simplify wiring operations, reducing installation time and facilitating maintenance.
Application fields.
The Compact Pro valve is ideal for:
-
Heating and cooling (HVAC) systems
-
Centralized automation and management systems
-
Refrigeration systems with glycol (up to 30 percent)
-
Potable and technical water treatment systems
-
Distribution circuits in industrial environments
-
Alternative energy systems
-
Compressed air lines
Technical Specifications Comparative 3-Way Motorised Valve
General Specifications
| Parameter | Value |
|---|---|
| Series | Compact Pro ALL-IN |
| Valve type | Motorised 3-way - vertical FFF |
| Hydraulic connection | 1 inch 1/2 (DN40) female threaded |
| Valve body | Brass - full bore |
| Permissible fluid temperature | Compatible with refrigeration to thermal systems |
Motor and Electronics
| Parameter | Value |
|---|---|
| Power supply | 230 V AC - 50/60 Hz |
| Motor | Bidirectional synchronous |
| Rated torque | 22 Nm |
| Maneuvering times | 45 sec / 90 degrees |
| Power consumption | 24 VA |
| Heating resistor | 3 W |
| Degree of protection | IP67 |
| Max noise level | 42 dB(A) at 1 m |
Control and Connections
| Parameter | Value |
|---|---|
| Command | 3 points without relay / 2 points with relay |
| Electrical connections | Internal terminal block |
| Microswitches | 2 auxiliary on opening and closing |
| Visual position indicator | Arrow on lever |
There are no reviews
Data sheet
- Type: Motorised Valves
- Connection: F/F
- Connections: 1-1/2 inches
