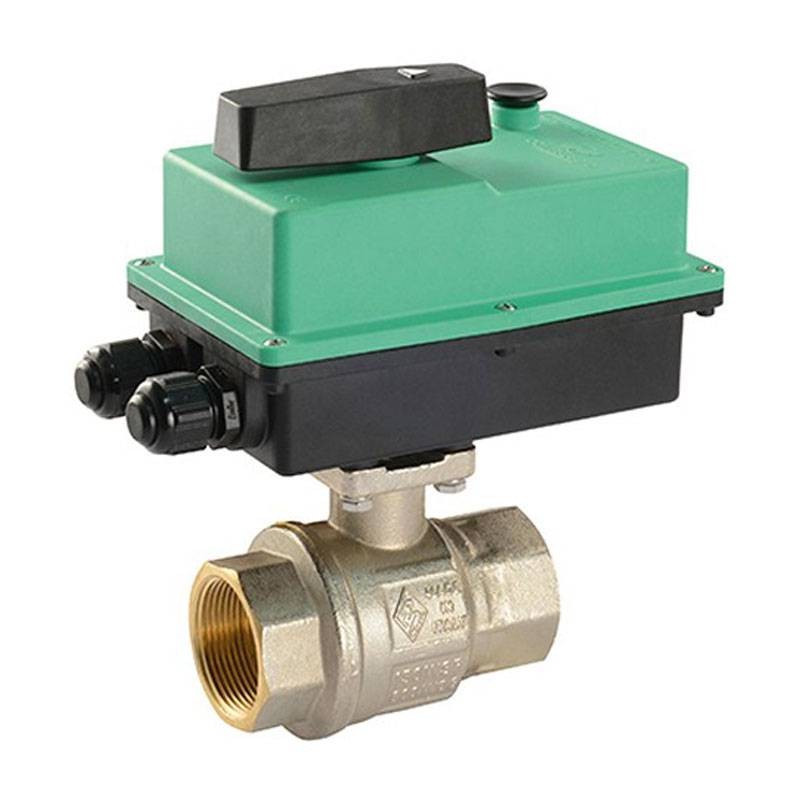

Comparato Compact Pro 2-Way Motorised Valve 230V F/F 1 1/2 CY222AE2M5
CMP CY222AE2M5
Comparato Compact Pro ALL IN Motorised Valve is an advanced solution for flow control in industrial, HVAC, water treatment and refrigeration systems. Equipped with electric 2/3-point control, manual opening from the top, it provides maximum safety and reliability even in harsh environments, with the following features:
-
Number of ways: 2 Female/Female brass
-
Electric control: ALL IN ONE with 2/3 point selection
-
Nominal diameter: DN40 (1 1/2 inch)
-
Power supply: 230V
-
Power consumption: 24VA
-
Nominal pressure: PN40
-
Operating time: 45 sec for 90 degrees
-
Degree of protection: IP67
-
Motor: Two-way synchronous, precision and reliability in flow control
€381.99
Items Available: 1
Comparato Motorised Valve: IP67 Protection, 2/3 Point Selector and Emergency
Industrial reliability with IP67 protection
With IP67 protection, the motorised valve is dust and water resistant, making it ideal for use in harsh and industrial environments.
ALL IN ONE electric control with 2/3-point selection
The ALL IN ONE system allows selection of 2- or 3-point control type, adapting to different plant configurations with 90-degree rotation in 45 seconds.
Manual opening for emergencies
In case of power failure, the upper lever allows manual opening, ensuring flow control even in critical situations.
Applications in different plants
Designed for multiple sectors:
-
Industrial and HVAC systems
-
Automation and alternative energy
-
Refrigeration with glycol and water treatment
-
Open and closed hydraulic systems
-
Drinking water systems (with suitable valve body)
-
Compressed air and hot/cold fluids
Technical Characteristics Motorised Valve
| Feature | Value |
|---|---|
| Electric control | ALL IN ONE 2/3 points |
| Pressure rating | PN40 |
| Nominal diameter | DN40 (1 inch 1/2) |
| Power supply | 230V 50/60 Hz |
| Rated torque | 22 Nm |
| Maneuvering times | 45 sec |
| Power consumption | 24VA |
| Maximum noise level | 42 dB(A) |
| Rotation | 90 degrees |
| Matching valve bodies | 2 Ways |
| Position indicator | Arrow on lever for manual opening |
| Motor | Bidirectional synchronous |
| Electrical connections | Internal terminal board |
| Heating resistor power | 3W |
| Ambient operating temperature | -10/+50 degrees |
| Degree of protection | IP67 |
| Material | Brass |
There are no reviews
Data sheet
- Type: Motorised Valves
- Connection: F/F
- Connections: 1-1/2 inches
