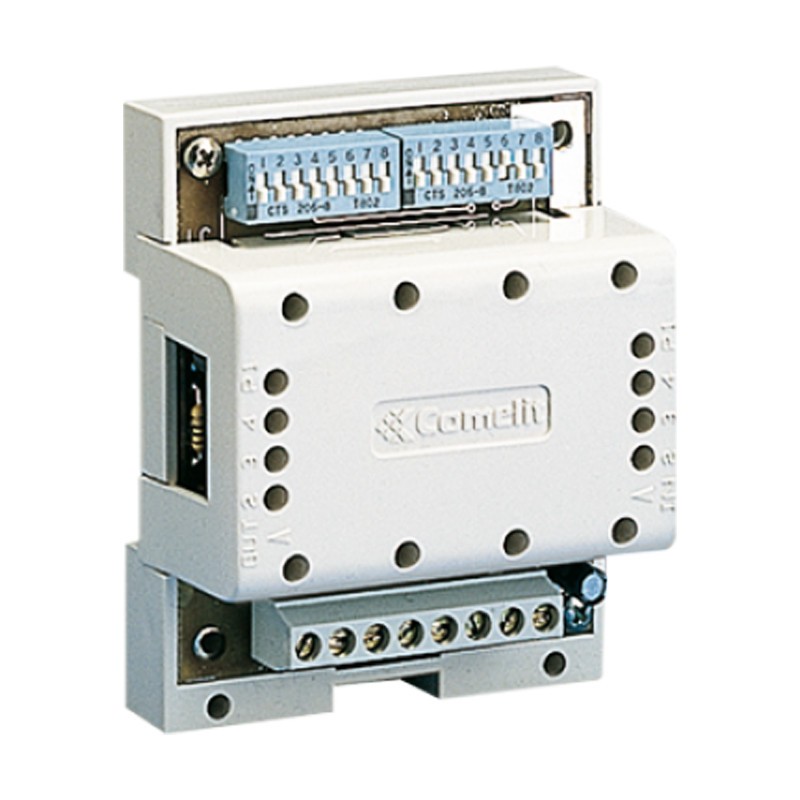

Comelit Simplebus 12VAC - 22VDC digital exchange for audio and audio-video systems 1224A
COE 1224A
8023903178234
Comelit Simplebus digital exchange for audio and audio-video systems with multiple door stations, with the following features:
-
Compatible system: Simplebus 1 (audio and audio-video)
-
Number of door stations supported: 2 or more
-
Power supply: 12 VAC / 22 VDC
-
Configuration: 2 dip-switches with 8 positions
-
Installation: DIN rail (4 DIN modules)
-
Dimensions: 60x85x35 mm (WxHxD)
-
Color: White
Use with transformer art. 1200
€141.76
Items Available: 11
: 2
Frequently bought together
Ideal for systems with multiple Simplebus door stations
The Digital Exchange is designed for audio or audio-video systems equipped with two or more door stations, belonging to the Simplebus 1 system. The device enables proper management of calls and communication between the various elements of the system, ensuring smooth and reliable operation.
Simple configuration with built-in dip-switches
The module is equipped with 2 dip-switches with 8 positions, useful for quickly defining the user ranges of the mast, allowing a clear and customized configuration for each system. A practical solution for installers seeking efficiency and precision.
DIN-rail installation and compact design
The design of the device is intended for DIN rail mounting, occupying only 4 modules. Its white plastic housing and compact format make it perfect for electrical panels and switchboards in civil or condominium installations.
Reliability and low power consumption
The digital exchange operates with a dual power supply: 12 VAC or 22 VDC, offering flexibility during installation. The maximum power consumption of only 0.5 W ensures its efficiency even in complex installations with continuous use.
Technical Characteristics Simplebus Device
Electrical Characteristics
| Maximum power consumption | 0,5 W |
General Characteristics
| Input connector | Terminal block |
| Certifications | RoHS II - 2011/65/EU (EN IEC 63000:2018), EMC 2014/30/EU (EN 61000-6-1:2007, EN 61000-6-3:2007+A1:2011) |
Main Features
| Height | 85 mm |
| Width | 60 mm |
| Depth | 35 mm |
| Product weight | 100 g |
| Operating temperature range | -25 ÷ +40 °C |
| Operating humidity | 25 to 95% RH (non-condensing) |
| DIN rail mounting | Yes |
| DIN modules | 4 |
| Supply voltage | 12 V |
General Data
| Coating material | Plastic |
| Product color | White |
Compatibility
| Simplebus 1 audio system | Yes |
