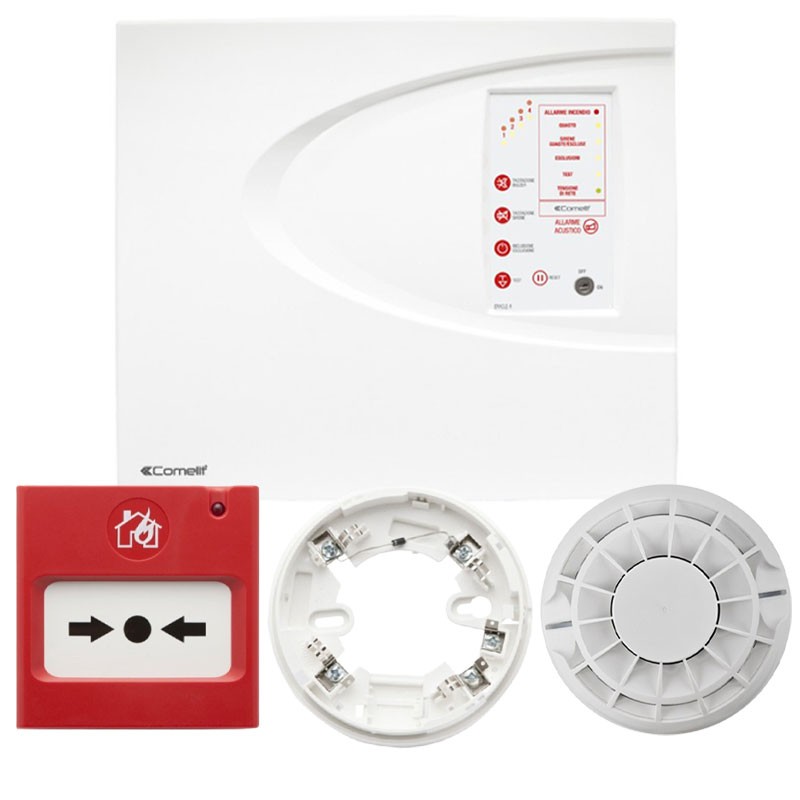

Kit Component Specifications:

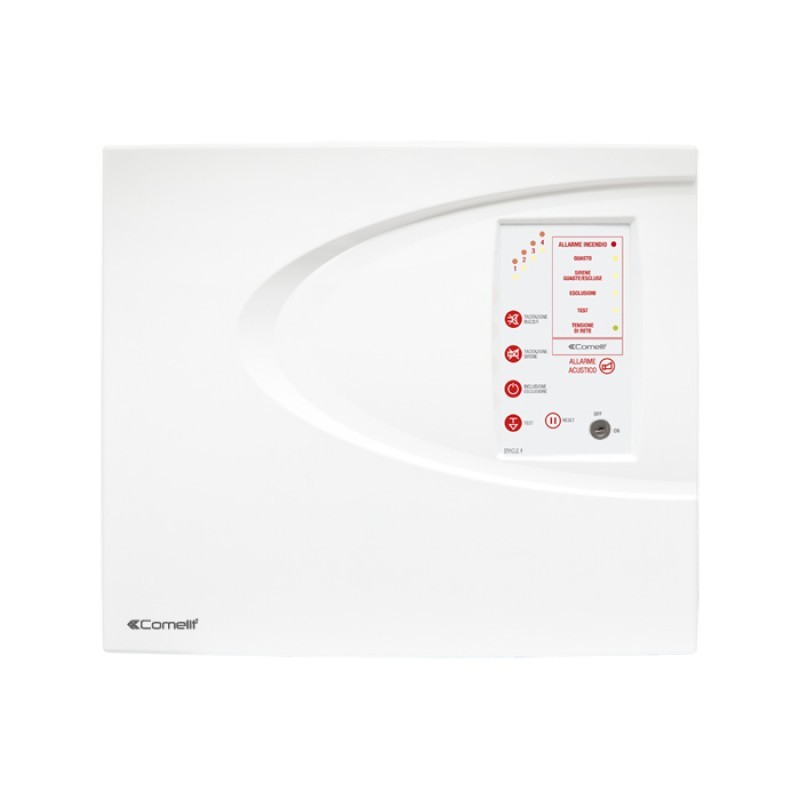

ERACLE CONVENTIONAL 4 ZONES CONTROL PANEL 43CPC004:The ERACLE 4 ZONES:

• Is a conventional fire alarm panel that supports up to 32 sensors or buttons for each detection line.
• It is equipped with a robust plastic container and shows on the front panel all the signals and commands according to the requirements of the regulations
• Signals for each line of Alarm and Fault
• General signaling of Fire Alarm, Fault, Faulty/excluded Sirens, Exclusions, Test, Mains voltage
• Commands for Buzzer Mute, Siren Mute, Inclusion/Exclusion, Test, Reset and Acoustic Alarm
• Active end-of-line impedance for continuous monitoring of detection lines
• Walk Test
• Access levels protected by security key
• Battery for secondary power supply 12 VDC / 7 Ah
• Certification according to EN 54-2 and EN 54-4.

• Number of detection zones available 4
• Comelit sensors and buttons per zone (max) (n°) 32
• Led for zone status indication Yes
• Internal Buzzer Yes
• Protection level 2 Mechanical key
• Standards EN EN54-2, EN54-4
• Degree of protection IP IP30
• Container Plastic
• Product Color White
• Product weight without battery (g) 2100
• Operating temperature (°C) -5 ÷ 40
• Operating humidity (RH max @40°C) (%) 0 ÷ 96
• Dimensions: Height (mm) 340 - Width (mm) 290 - Depth (mm) 100
• Storage temperature (°C) -20 ÷ 60
• Cable section for terminals (mm) 1 ÷ 2.5
• Main power supply 230VAC ±10% (fuse 0.3A)
• Backup power supply (batteries not supplied) 1x 12VDC, 7Ah, fuse 2A
• Auxiliary devices power output 24 (0.3A max)
• Absorption from mains (mA) 50
• Absorption max devices connected with charged battery (A) 0,7
• Fault relay and ALARM relay outputs in exchange with clean contacts 3A@120 VAC, 3A@60 VDC
• Monitored outputs 2 (0.3A max each) No. of fire relays 1 (3A@120 Vac; 3A@60 VDC Max) No. of fault relays 1 (3A@120 Vac; 3A@60 VDC Max)
• Circuit outputs for sirens 24VDC/0.3A, fuse 0.3A
• Outputs circuit for sirens 2 24VDC/0.3A, fuse 0.3A
• Zone thresholds Alarm (mA) 10 ÷ 110
• Power supply and zone thresholds Short
• Circuit >110
• Zone thresholds Fault or line break (mA) 0 ÷ 2
• Power supply and zone thresholds
• Normal mode (mA) 2 ÷ 10
• Power supply for external devices 24 (0.3A max)
• Led Notifications

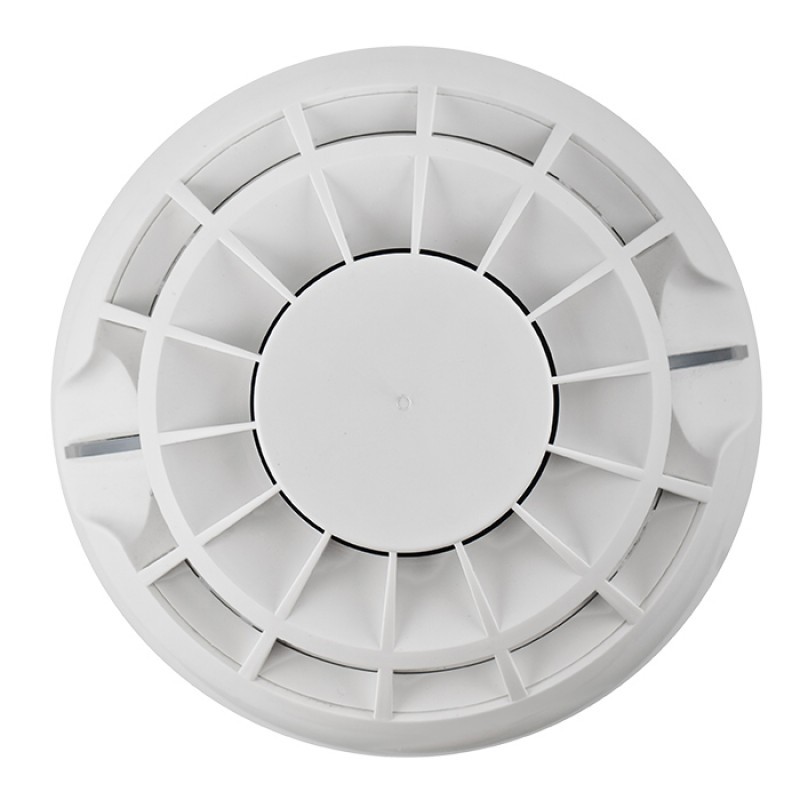

43RFU100 CONVENTIONAL OPTICAL SMOKE DETECTOR:

The detector 43RFU100 is an optical smoke detector with digital signal processing algorithm particularly sensitive and is able to detect the presence of smoke even in the early stages of fire development. Its detection characteristics make it suitable for applications such as offices and schools, supermarkets, etc. where early detection of fire development is of paramount importance. Microprocessor-based digital signal analysis. Low profile design. Luminous signals by means of 2 leds that guarantee a 360° visibility. Status indication every 8 seconds. Certification according to EN 54-7.

• Type of detection point Optical smoke detector
• Self diagnosis Yes
• LED indicators 2, 360° visibility
• Drift Compensation Yes
• Time to power on (secs) 30
• Standards EN EN54-7
• IP Degree of Protection IP30
• Product Color White
• Operating temperature (°C) -10 ÷ 60
• Operating humidity (RH max @40°C) (%) 0 ÷ 96
• Cable section for terminals (mm) 0.4 ÷ 2.5
• Base height included (mm) 42
• Product weight (g) 160
• Power supply 9÷30 (12÷24 VDC Nominal)
• Absorbed current in alarm with base 43RBX000 and 43RBX001 20mA, 12÷30VDC
• Absorbed current in alarm with base type 43RBX003 18mA @ 9VDC, 29mA @ 12VDC, 32mA @ 15VDC
• Average consumption in idle state <50µA
• Output in alarm state for remote signaling 20mA@3.3VDC
• Width (mm) 102
• Operating voltage 9÷30 (12÷24 VDC Nominal)

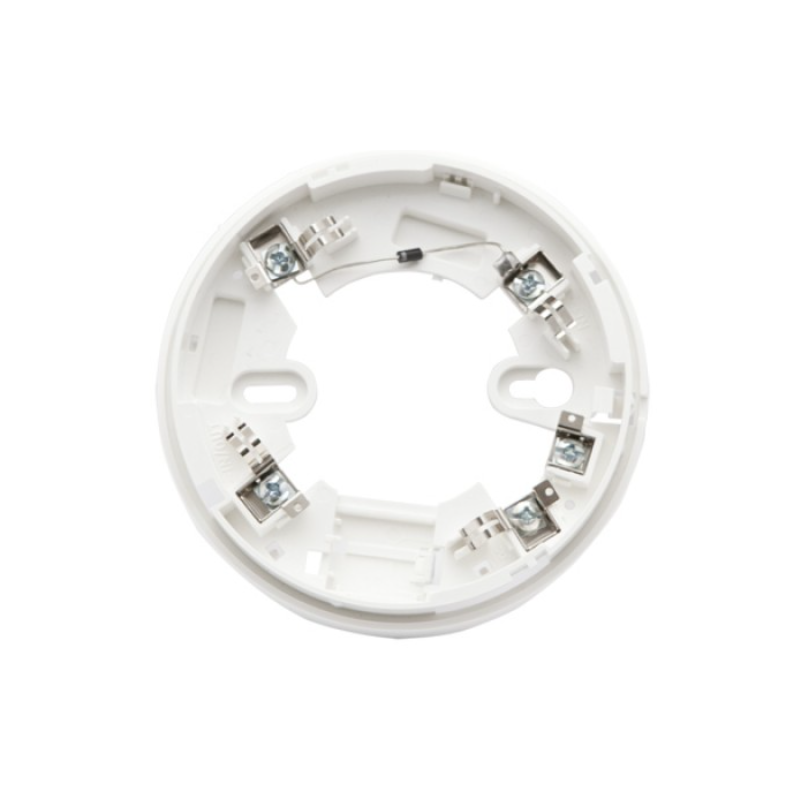

BASE WITH DIODE FOR CONVENTIONAL SENSORS 43RBX001:

The standard base with diode for conventional detectors has a low-profile design and an extremely reliable system of connection to the sensor also allowing a safety lock of the detector. The presence of the diode allows the detector's removal from its base to be detected.

• Product Color White
• Material Type ABS Coating
• Height (mm) 11
• Diameter (mm) 102
• Product Weight (g) 42
• Operating humidity (RH max @40°C) (%) 0 ÷ 96
• Operating temperature (°C) -10 to 60

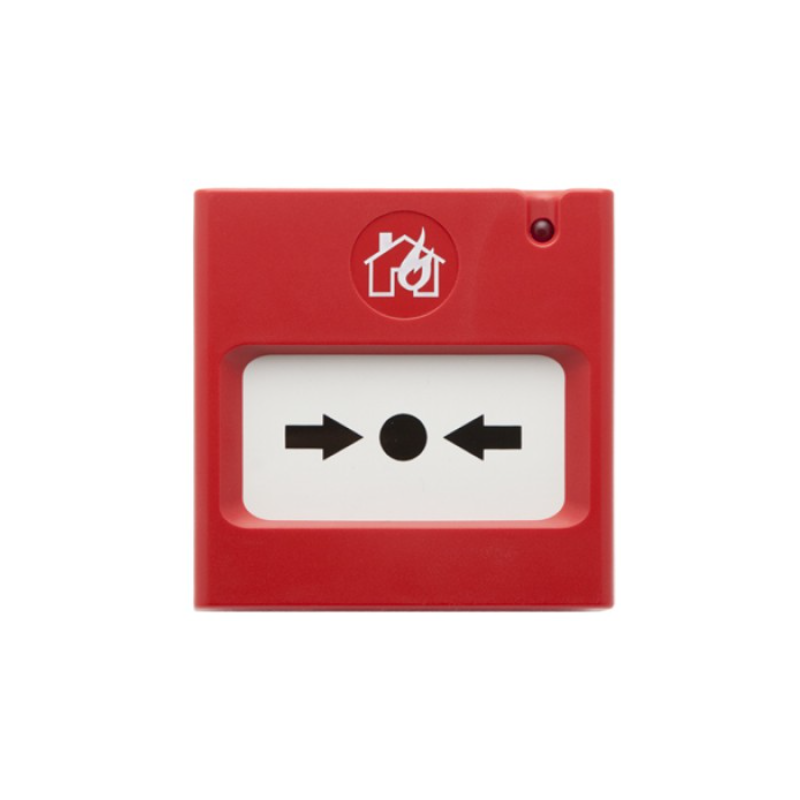

CONVENTIONAL MANUAL ALARM BUTTON 43PAM000:

IP40-ratedmanual call back point designed for use in conventional detection systems. The recall point is equipped with a plastic reset key (supplied) and, when activated by pressing the indicated point, sends an alarm signal to the control unit. It is equipped with a front LED to indicate the state of alarm or test. Flexible element resettable with special key. Wall mounting. Red ABS enclosure. Certification according to EN54-11.

• Type of breakable element Resettable
• Isolator Yes
• IP Degree of Protection IP40
• Coating Material Type ABS
• Product Color Red
• Width (mm) 90
• Height (mm) 90
• Depth (mm) 56
• Type of detection point Manual alarm button
• Standards EN EN54-11
• Cable section for terminals (mm) 0.4 ÷ 2.5
• Product weight (g) 150
• Operating humidity (RH max @40°C) (%) 0 ÷ 96
• Operating temperature (°C) -10 ÷ 60
• Operating voltage 9÷30 (12÷24 nominal)
• Supply voltage 9÷30 (12÷24 nominal)
• Current consumption in alarm 23@15V / 38@24V / 48@30V
