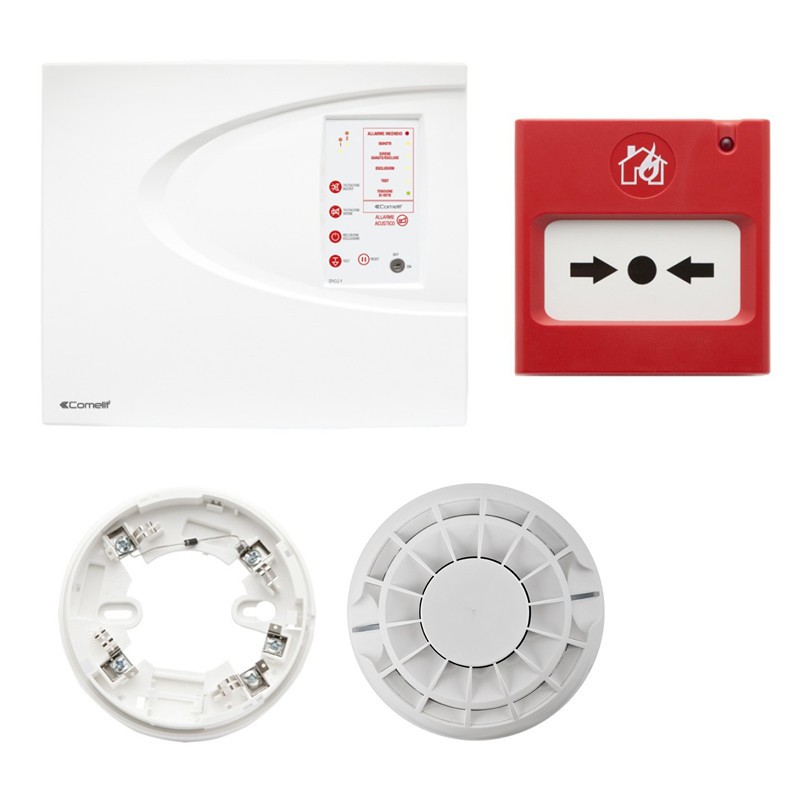

Detailed items included in the kit:

The ERACLE 2 ZONE is a conventional fire alarm control panel that supports up to 32 sensors or buttons per detection line. It is equipped with a robust plastic housing and has all the signals and commands on the front panel in accordance with the requirements of the standards. Signalling for each Alarm and Fault line. General signalling of Fire Alarm, Fault, Faulty/Excluded Sirens, Exclusions, Test, Mains Voltage. Commands for Buzzer Silence, Siren Silence, Inclusion/Exclusion, Test, Reset and Acoustic Alarm. Active end-of-line impedance for continuous monitoring of detection lines. Walk Test. Access levels protected by security key. Battery for secondary power supply 12 VDC / 7 Ah. Certified according to EN 54-2 and EN 54-4.

• Number of detection zones available 2
• Comelit sensors and buttons per zone (max) 32
• LEDs for zone status indication Yes
• Internal buzzer Yes
• Protection level 2 Mechanical key
• Standards EN EN54-2, EN54-4
• Degree of protection IP30
• Container Plastic
• Colour White
• Product weight without battery 2100 kg
• Operating temperature -5/+40°C
• Operating humidity (RH max@40°C) (%) 0 ÷ 96
• Height (mm) 340
• Storage temperature (°C) -20 to 60
• Cable cross-section for terminals (mm) 1 to 2.5
• Width (mm) 290
• Depth (mm) 100
• Main power supply 230VAC ±10% (fuse 0.3A)
• Backup power supply (batteries not supplied) 1x 12VDC, 7Ah, fuse 2A
• Auxiliary device power supply output 24 (0.3A max)
• Power consumption from mains (mA) 50
• Max. absorption of connected devices with charged battery (A) 0.7
• Outputs Fault relay and ALARM relay in exchange with cont. Cleaned 3A@120 VAC, 3A@60 VDC
• Monitored outputs 2 (0.3A max each)
• No. of fire relays 1 (3A@120 Vac; 3A@60 VDC Max)
• No. of fault relays 1 (3A@120 Vac; 3A@60 VDC Max)
• Circuit outputs for sirens 24VDC/0.3A, fuse 0.3A
• Circuit outputs for sirens 2 24VDC/0.3A, fuse 0.3A
• Zone thresholds Alarm (mA) 10 ÷ 110
• Power supply and zone thresholds Short Circuit >110
• Zone thresholds Fault or line break (mA) 0 ÷ 2
• Power Supply and Zone Thresholds Normal Mode (mA) 2 ÷ 10
• Power supply for external devices 24 (0.3A max)

The 43RFU100 detector is an optical smoke detector with a particularly sensitive digital signal processing algorithm and is able to detect the presence of smoke even in the early stages of fire development. Its detection characteristics also make it suitable for applications such as offices and schools, supermarkets, etc., where early detection of fire development is of paramount importance. Microprocessor-based digital signal analysis. Low-profile design. Luminous signalling by means of 2 LEDs providing 360° visibility. Status indication every 8 seconds. Certified according to EN 54-7.

• Type of detection point Optical smoke detector
• Self-diagnosis Yes LED indicators 2, 360° visibility
• Drift compensation Yes
• Settling time to power on (secs) (secs) 30
• Standards EN EN54-7
• Degree of protection IP30 Product colour White
• Operating temperature (°C) -10 to 60
• Operating humidity (RH max @40°C) (%) 0 to 96
• Cable cross-section for terminals (mm) 0.4 to 2.5
• Base height included (mm) 42
• Product weight (g) 160
• Power supply 9÷30 (12÷24 VDC Nominal)
• Absorbed current in alarm with base 43RBX000 and 43RBX001 20mA, 12÷30VDC
• Absorbed current in alarm with base type 43RBX003 18mA @ 9VDC, 29mA @ 12VDC, 32mA @ 15VDC
• Average consumption in idle state <50µA
• Output in alarm state for remote signalling 20mA@3.3VDC
• Width (mm) 102
• Operating voltage 9÷30 (12÷24 VDC nominal)

Product code: 43PAM000 IP40-rated manual call point, designed for use in conventional detection systems. The recall point is equipped with a plastic reset key (supplied) and, when activated by pressing the indicated point, sends an alarm signal to the control unit. It is equipped with a front LED to signal alarm or test status. Flexible element resettable with special key. Wall mounting. Red ABS enclosure. Certified according to EN54-11.

• Breakable Element Type
• Resettable Isolator Yes
• Degree of protection IP40
• Type ABS enclosure materials
• Product colour Red L
• Dimensions: Width (mm) 90 Height (mm) 90 Depth (mm) 56
• Operating humidity (RH max @40°C) (%) 0 ÷ 96
• Operating temperature (°C) -10 to 60
• Operating voltage 9÷30 (12÷24 nominal)
• Supply voltage 9÷30 (12÷24 nominal)
• Alarm current consumption 23@15V / 38@24V / 48@30V
• Type of detection point
• Manual alarm button Standards EN EN54-11
• Cable cross-section for terminals (mm) 0.4 ÷ 2.5
• Product weight (g) 150

Product code: 43RBX001 The standard base with diode for conventional detectors has a low-profile design and an extremely reliable sensor connection system that also allows safe detector locking. The presence of the diode allows the detector to be detected when removed from its base.


• Dimensions: diameter 102 mm, height 11 mm
• Weight: 42 grams,
• Operating humidity (RH max @40°C) (%) 0 to 96
• Operating temperature (°C) -10 to 60
