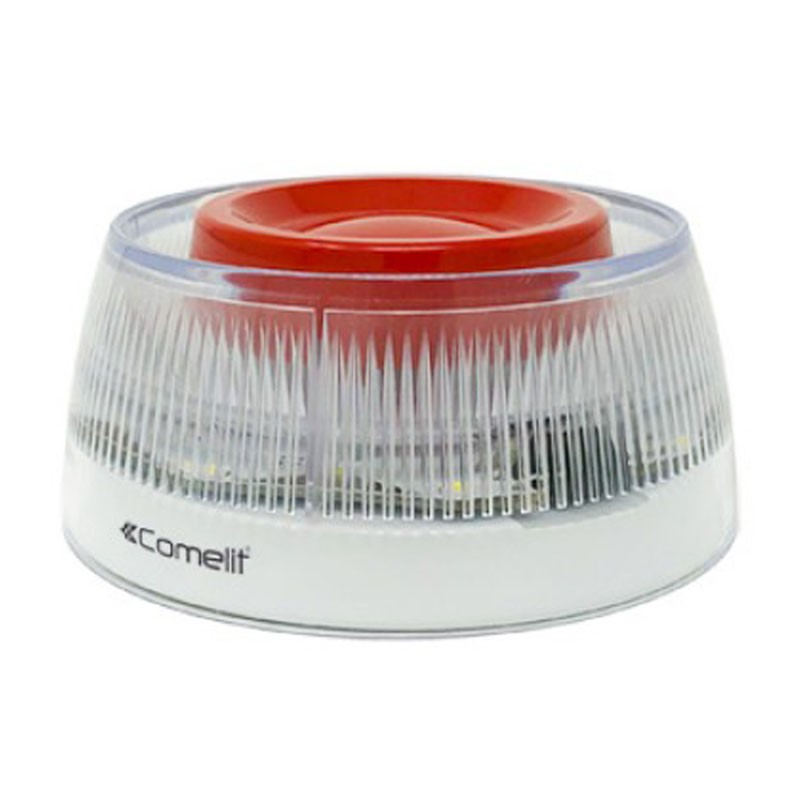

Comelit indoor addressed fire siren with flashing light on loop 41SCI000

Comelit
Comelit
COE 41SCI000 8023903288216

Comelit addressed flashing siren with built-in on-board isolator, loop-powered , with the following features:

  • Compatible base code 41RBX020 (to be purchased separately)
  • Number of tones available: 32
  • Optical signal coverage according to EN54- 23: (W) 2.4 x 6m
  • Isolator Yes
  • Standards EN EN54-3, EN54-17, EN54-23
  • Type SAN coating materials
  • Color: Red, Transparent
  • Optical signaling Yes
  • Optical signaling color White
  • Cable cross section for terminals (mm) 0.4 ÷ 2.5
  • Operating temperature: -10/+50°C
  • Dimensions: 55mm height - 116mm diameter
  • IP rating: IP43C
  • Weight: 183 grams
Do you have questions about this product or did you not find what you were looking for? Ask us!
Comelit indoor addressed fire siren with flashing light on loop 41SCI000
€72.83
€72.83

€72.83
Tax included
Calculate shipping cost
Items Available: 141
Further availability of the manufacturer
€72.83

Buy it within and receive it from Wednesday, 24 December
Two-year warranty
Easy return within 14 days
Purchase with tax breaks

Are you a professional ?

Request access to

Trustpilot

Frequently bought together

The 41SCI000 addressed beacon siren, with built-in on-board isolator, is loop-powered and is controlled by the control panel by means of the communication protocol. The standard base for 41RBX020 addressed detectors is required for mounting. Siren also suitable for outdoor installations, thanks to the use of the IP65-grade base Art. 41BSE000. The siren is also equipped with a built-in isolator. Certified according to EN54-3, EN 54-17, EN 54-23.


Electrical characteristics:

  • Supply voltage 15÷32 (27 VDC Nominal).
  • Flashing frequency (Hz) 1
  • Rated power consumption (stand-by) 500uA@27VDC
  • Max. absorption (other tones) high volume (with audio and flashing active) <16.5mA
  • Max. abs (other tones) high volume (with audio only active) <10mA
  • Abs. max (other tones) low volume (with audio and blink active) <11mA
  • Max. abs (other tones) low volume (with audio only active) <4mA
  • Ass. max main tone 27 vol. high with audio and blink. Active <22mA
  • Abs. max main tone 27 volume high with only audio active <16.5mA
  • Ass. max main tone 27 vol. low with audio flashing. Active <12mA
  • Ass. max main tone 27 low volume with audio only active <5mA
  • Sound power (other tones) high volume (dB@1m): 80÷95dB±3dB@1m
  • Sound power (other tones) low volume (dB@1m): 75÷85dB±3dB@1m
  • Sound power (main tone 27) high volume (dB@1m): 92dB±5dB@1m
  • Sound power (main tone 27) low volume (dB@1m): 80dB±6dB@1m

There are no reviews

Data sheet

Type:
Sirens
