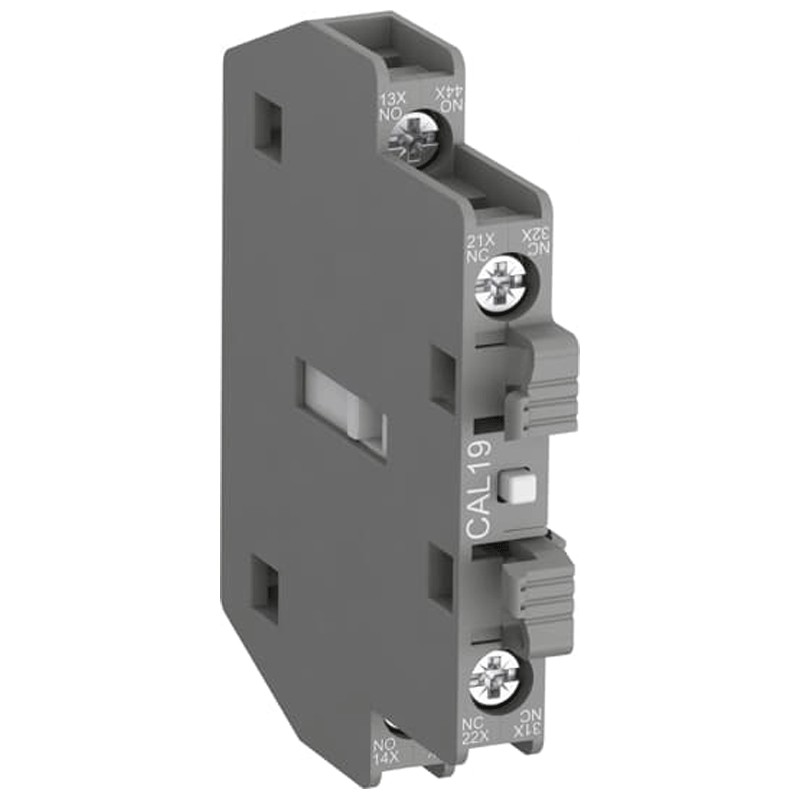

Auxiliary side Abb contact CAL1911


ABB CAL1911 7320500476659

Auxiliary side contact Abb, with the following characteristics:

  • Rated operating voltage auxiliary circuit 24...690 V
  • Auxiliary circuit tightening torque 1 Nm
  • Degree of protection IP20
  • Number of NC auxiliary contacts 1
  • Number of NO auxiliary contacts 1
Request info about this product

Auxiliary side Abb contact CAL1911

€10.99
€10.99

Auxiliary side Abb contact CAL1911

€10.99
Tax included
klarna Pay in installments with Klarna
qty

Auxiliary side Abb contact CAL1911

€10.99

Buy it within and receive it from Friday, 12 April
Two-year warranty
Secure Payment
Easy return within 14 days

Auxiliary contacts are secondary switching devices that operate in conjunction with primary switching equipment such as circuit breakers, relays, and contactors. These contacts are physically connected to the main switching mechanism and are activated simultaneously.

What are they used for? Auxiliary contacts are used for various functions, e.g. self-holding, consent/block, signaling, interlocking.


Features:

  • Abb series
  • Rated operating voltage auxiliary circuit 24...690 V
  • Type of terminal Screw Terminals
  • Auxiliary circuit tightening torque 1 Nm
  • Auxiliary circuit cable stripping length 9 mm
  • Recommended screwdriver auxiliary circuit 1 x 5.5 - Pozidriv auxiliary circuit 2
  • Degree of protection IP20
  • Number of NC auxiliary contacts 1
  • Number of NO auxiliary contacts 1
  • Auxiliary circuit cable cross-sections Flexible with Ferrule 1x 0.75 ... 2.5 mm²
  • Auxiliary-circuit conductor cross-sections Flexible with ferrule 2x 0.75 ... 2.5 mm² Auxiliary circuit
  • Auxiliary-circuit conductor cross-sections Flexible with Insulated Ferrule 1x 0.75 ... 2.5 mm² Auxiliary circuit
  • Auxiliary-circuit conductor cross-sections Flexible with Insulated Ferrule 2x 0.75 ... 2.5 mm² Cable cross-sections
  • Cable cross-sections for auxiliary circuits Solid 1x 1 ... 4 mm²
  • Auxiliary circuit cable cross-sections Solid 2x 1 ... 4 mm²
  • Width 79 mm
  • Height 67.3 mm
  • Depth 14.9 mm
  • Weight 0.04 kg

Data sheet

Type:
Auxiliary Contacts
