Clivet Duct 2 Ducted Air Conditioner 14.1kW 48000BTU three-phase
KIT ID3-XY140M
Air Conditioner Clivet Ducted Duct 2 14.1 kW (48,000 BTU) three-phase with R32 gas, integrated condensate pump, and remote control RG10A-D2S-BGEF. Powerful, quiet, and ideal for commercial installations or large spaces.

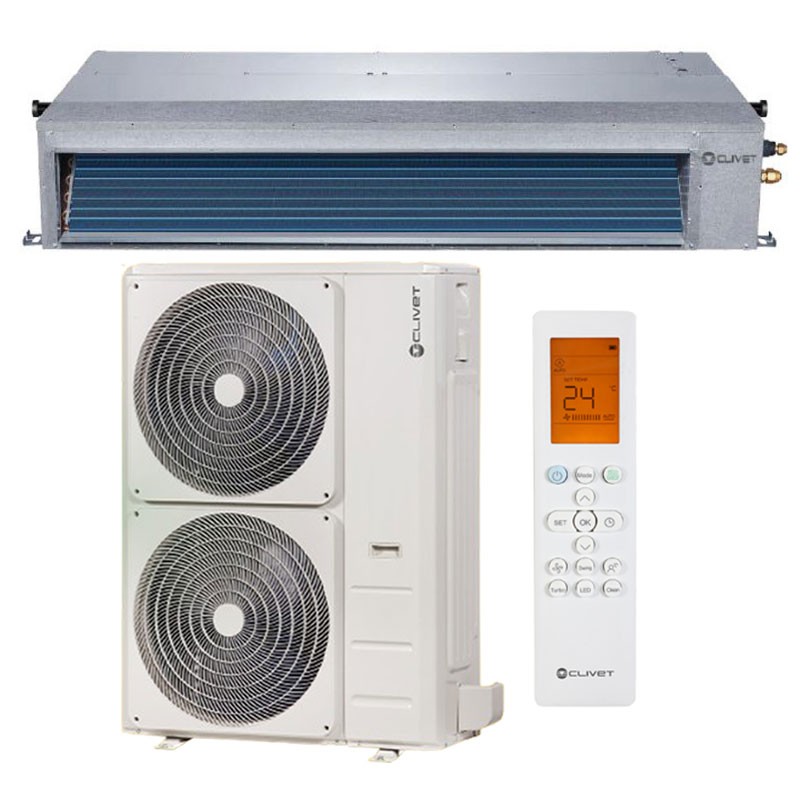

Set composed of:

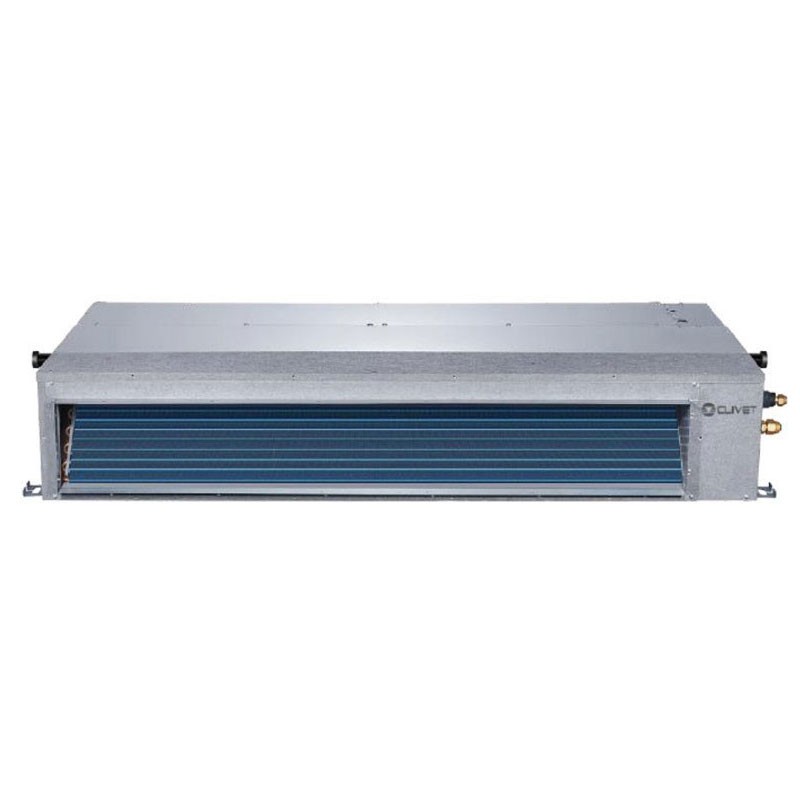

- 1x Indoor unit (code ID3-XY140M),

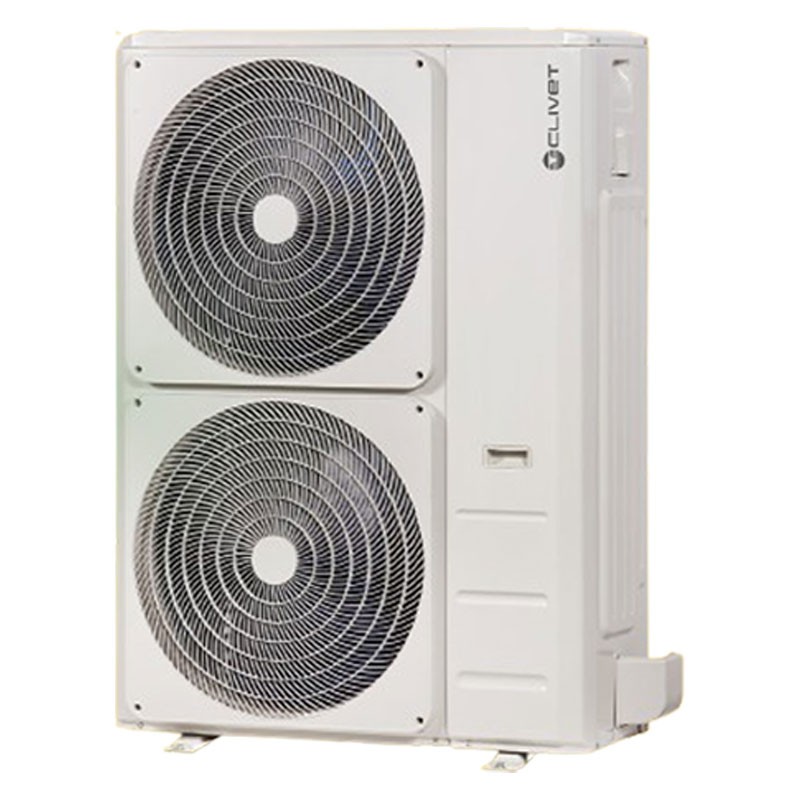

- 1x Outdoor unit (code MC4-Y140T)

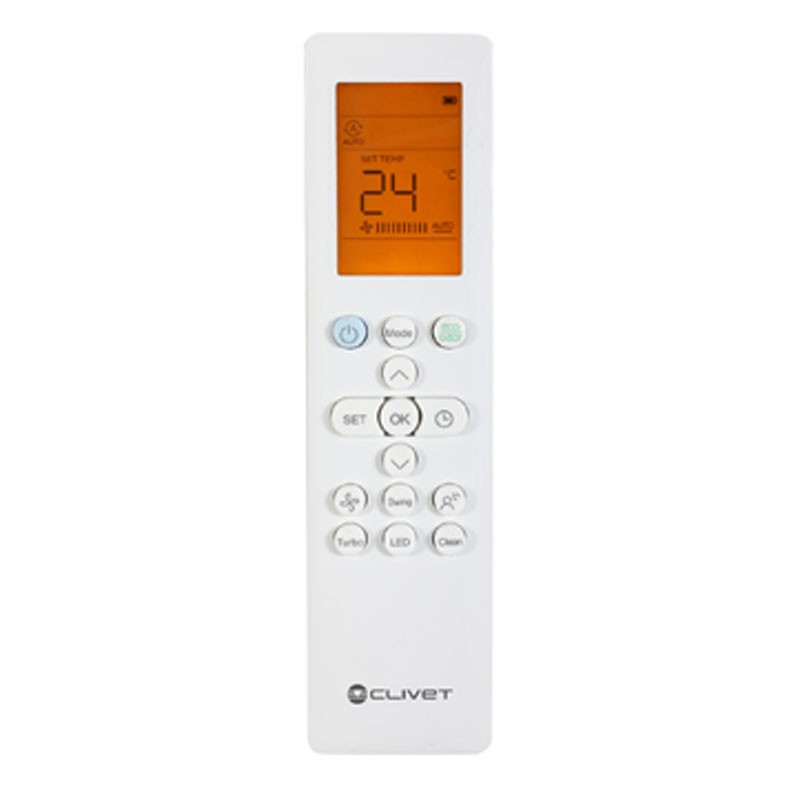

- 1x standard remote control RG10A-D2S-BGEF.
For a room of approximately 180m²
The air conditioner will be delivered pre-charged with gas R32
The air conditioner is also an heat pump, therefore also suitable for heating environments in winter.
€3,132.97
Items Available: 2
: 1
Air conditioners of the same series
Frequently bought together
- On sale!
Clivet Duct 2: powerful and discreet air conditioning for commercial environments
The Clivet Ducted Duct 2 14.1 kW three-phase is designed to ensure uniform comfort, energy efficiency, and maximum installation flexibility.
Thanks to Inverter technology and R32 gas, with low environmental impact, it ensures reduced consumption and precise temperature control in any usage condition. It is the perfect solution for shops, offices, conference rooms, and technical rooms, where invisible yet high-performance air conditioning is required.
Efficiency and constant control
The "constant flow" function automatically adjusts the fan's pressure based on the system's load losses, maintaining a stable airflow even in complex or long installations. With a pressure available up to 160 Pa, the air conditioner is suitable for large ducted systems.
The air intake can be configured from the rear or from below, simplifying installation and architectural integration.
Custom comfort and advanced functions
The Clivet Duct 2 air conditioner is equipped with a wide range of functions to optimize comfort, quietness, and consumption management:
- Follow Me: the sensor in the remote control adjusts the temperature based on the user's position
- Turbo: activates the maximum fan speed for rapid cooling or heating
- Do not disturb: deactivates sounds and display for silent operation
- Continuous speed adjustment and external fan with 7 levels for custom comfort
- Sleep and Gear function: energy savings up to 50% without sacrificing comfort
Reliability and smart maintenance
Designed for intensive use, the air conditioner integrates self-diagnosis functions, refrigerant leak alarm, auto defrost, and Emergency function, ensuring service continuity and operational safety.
The integrated condensate drain pump (pressure 750 mmH₂O) ensures efficient condensate management even in difficult installations. The I-Clean function automatically cleans the internal exchanger, preventing mold and bad odors.
Simple management and integration
Equipped with remote On/Off contact, alarm port, programmable timer, and Auto Restart function, the Clivet Duct 2 is designed to easily integrate into centralized control systems or automations for commercial premises.
The external air intake allows for partial air exchange management, improving indoor air quality.
Technical characteristics
| COOLING | |
|---|---|
| Nominal capacity (Min/Max) | 48,000 BTU (12,000–53,000) / 14.7 kW (3.52–15.5) |
| Nominal power consumption | 4,800 W (880–6,000) |
| Nominal current consumption (Min/Max) | 8.4 A (1.9–10.4) |
| SEER (Seasonal energy efficiency ratio) | 6.10 |
| Seasonal energy efficiency class | A++ |
| Indicative annual energy consumption | 811 kWh/a |
| Nominal efficiency (EER) | 2.93 |
| HEATING | |
| Nominal capacity (Min/Max) | 55,000 BTU (14,000–62,000) / 16.12 kW (4.1–18.2) |
| Nominal power consumption (Min/Max) | 4,500 W (950–5,700) |
| Nominal current consumption (Min/Max) | 8.0 A (2.0–9.8) |
| COP (Energy efficiency) | 3.58 |
| SCOP (Seasonal energy efficiency ratio) | 5.0 |
| Seasonal energy efficiency class | A+ (average climate conditions) |
| Indicative annual energy consumption | 4025 kWh/a |
| INDOOR UNIT | |
| Dimensions (WxHxD) | 1200x800x300 mm |
| Weight | 47.6 kg |
| Sound power | 66 dB(A) |
| Sound pressure (Hi/Mid/Lo) | 52/49/47 dB(A) |
| Airflow (Hi/Mid/Lo) | 2400/2040/1680 m³/h |
| Liquid external diameter | 9.52 - 3/8" |
| Gas external diameter | 15.9 - 5/8" |
| Power supply | 230 V – 50 Hz |
| OUTDOOR UNIT | |
| Refrigerant gas | R-32 (GWP 675) |
| Dimensions (WxDxH) | 952 × 415 × 1333 mm |
| Weight | 103.7 kg |
| Sound power | 74 dB(A) |
| Sound pressure | 64 dB(A) |
| Power supply | 400 V – 50 Hz – Three-phase (3+1) |
| Operating range (cooling) | -15 ÷ +50 °C (EU) |
| Operating range (heating) | -15 ÷ +24 °C (EU) |
| External diameter Liquid | 9.52 - 3/8" |
| External diameter Gas | 15.9 - 5/8" |
| Maximum height difference (ODU/IDU) | 30 m |
| Refrigerant precharge | 2.9 kg / 5 m |
| Additional refrigerant charge | 24 g/m |
There are no reviews
Data sheet
- Air conditioners: Ducted
- Gas: R32
- Power: 48000 BTU (14 Kw)
- Room Size: 180m²
- Energy class: A++
- Series: Duct 2
