Clivet Dual-Split cassette air conditioner 3.5+5.0KW 12000+18000BTU
KIT CLVCASS25
The Clivet Box 2 3.5+5.0 kW (12000+18000 BTU) Dual Split Cassette Air Conditioner is the ideal choice for those who want a powerful, quiet air conditioning system that can be integrated into standard 60x60 cm ceilings. With its built-in condensate drain pump and the ability to work with a fraction of fresh air, it guarantees high performance in offices, stores and technical rooms.

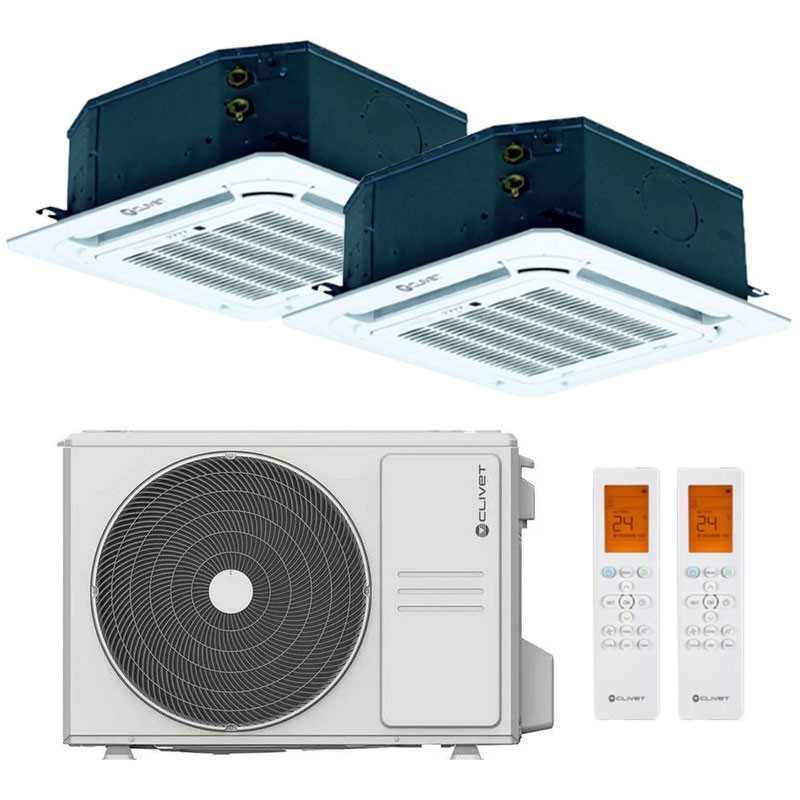

The consists of:

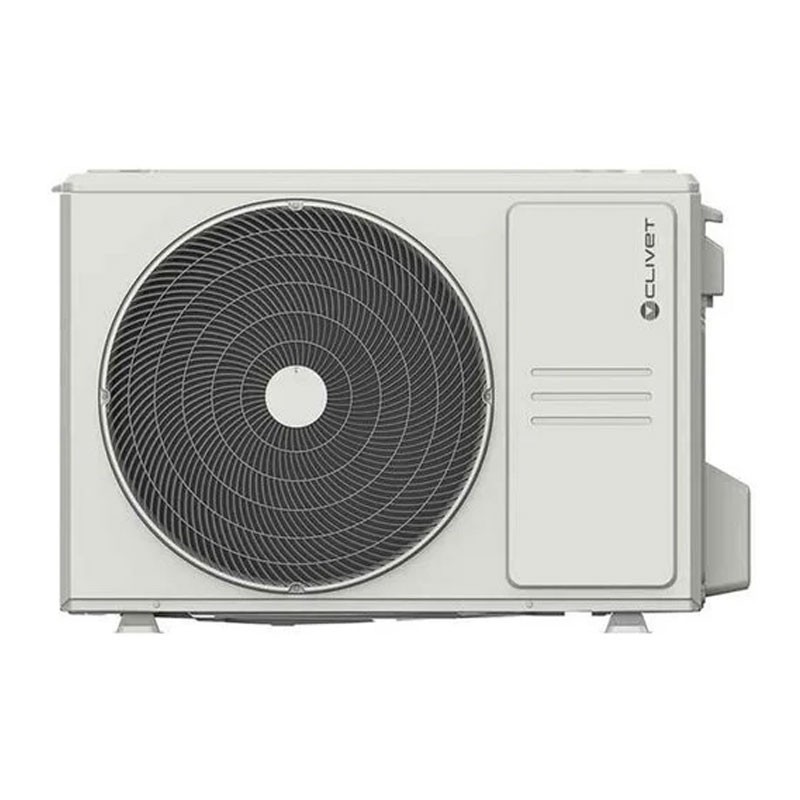

- 1 outdoor unit Trial 7.9kW (item MU2-Y79M)

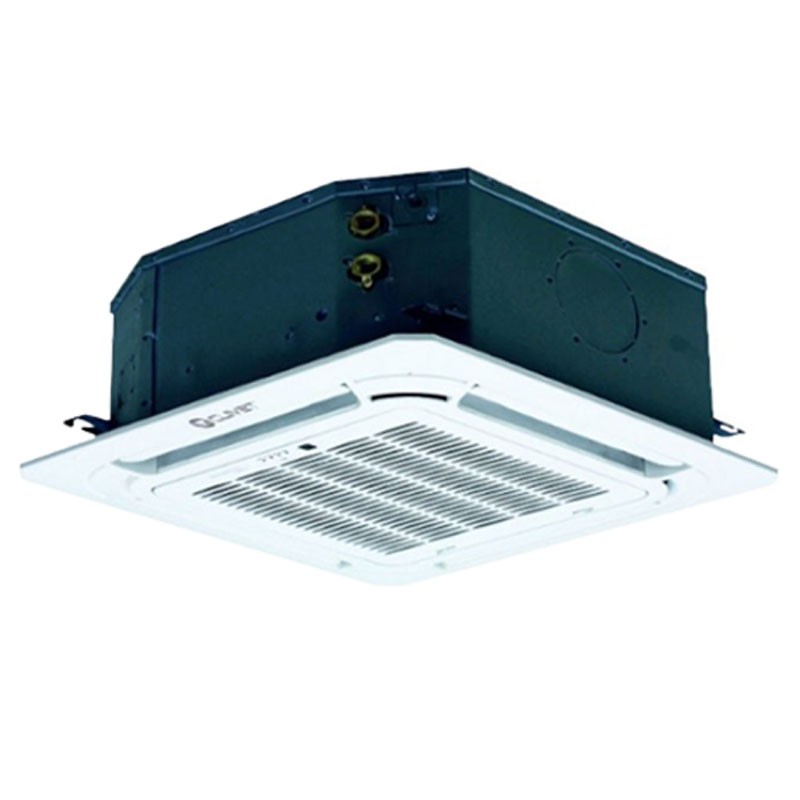

- 1 indoor cassette unit Box 2 (4-Way) (item IBA1-Y35M)
- 1 indoor cassette unit Box 2 (4-Way) (item IBA1-Y53M)

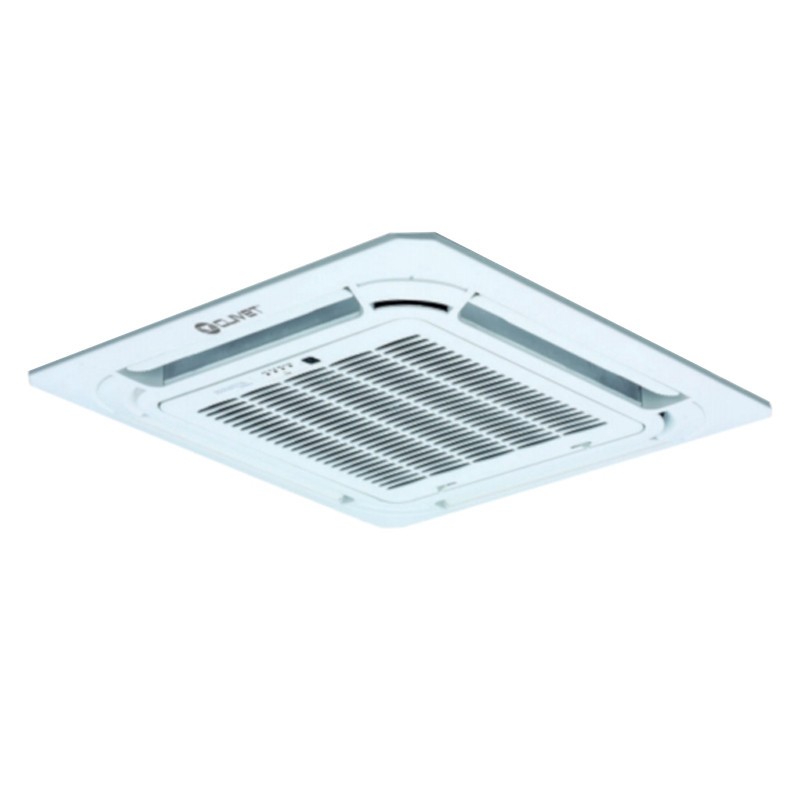

- 2 60x60 panels (T-MBQ4-03B - 63322513)
- 2 infrared remote controls
For two rooms of 35m² and one 55m² approx.
The air conditioner will be delivered pre-charged with gas R32
The air conditioner is also an heat pump, therefore also suitable for heating environments in winter.
€2,454.97
Items Available: 9
: 9
Air conditioners of the same series
Frequently bought together
Dual Split Cassette Clivet Box 2: Efficiency, Comfort and Quietness
Compact design and flexible installation
The Clivet air conditioner is designed for 60x60 cm modular ceilings, making it perfect for professional environments. The built-in condensate drain pump with a head of 1000 mmH₂O allows effective drainage even in complex installation conditions.
Follow Me technology for personalized comfort
With the Follow Me function, the temperature sensor in the remote control adjusts the air conditioner according to the perceived temperature in the user's area, improving thermal comfort.
Ultra-quiet operation and advanced control
"Do Not Disturb" mode turns off the display, eliminates warning sounds and sets ultra-quiet ventilation, making it ideal for offices and bedrooms.
Savings and cleanliness of the Clivet Box 2
Energy saving and Eco mode
Gear mode allows you to select three levels of power consumption:
- 100% (maximum power)
- 75% (intermediate savings)
- 50% (maximum savings)
Sleep function automatically adjusts the temperature for energy savings at night.
I-Clean: air conditioner always clean and odor-free
The I-Clean system initiates a cleaning cycle of the indoor unit, preventing the formation of mold, bacteria and odors, improving air quality.
Strengths of the Multi Clivet Cassette
- Compact installation for 60x60 cm ceilings
- Built-in condensate drain pump with 1000 mmH₂O head
- Follow Me sensor for temperature sensing from remote control
- Turbo mode for rapid cooling/heating
- "Do not disturb" function with display shut-off and advanced quietness
- 6-level ventilation for maximum comfort and energy saving
- Anti Cold Air function to avoid unpleasant air jets
- Auto defrost and self-diagnostics for increased reliability
- I-Clean to prevent mold and odors
- Sleep function and Gear mode for energy saving up to 50%.
Technical specifications of the Clivet Dual Cassette
Cooling
| Feature | Value |
|---|---|
| Cooling capacity | 2.72 / 4.08 kW |
| Total cooling capacity Min/Standard/Max | 2.21 / 6.80 / 7.90 kW |
| Absorbed capacity cooling Min/Standard/Max | 0.64 / 2.11 / 2.69 kW |
| Total cooling current Min/Standard/Max | 2,76 / 9,15 / 11,70 A |
| EER | 3,23 |
| Seasonal efficiency in cooling | A++ |
| SEER | 5,60 |
| Pd | 6,80 |
| Annual energy consumption (CEA) | 425 kWh |
Heating
| Feature | Value |
|---|---|
| Heating capacity | 2.80 / 4.20 kW |
| Total heating capacity Min/Standard/Max | 2.30 / 7.00 / 8.21 kW |
| Heating input capacity Min/Standard/Max | 0.57 / 1.89 / 2.43 kW |
| Total heating current Min/Standard/Max | 2,50 / 8,20 / 10,58 A |
| COP | 3,71 |
| Seasonal heating efficiency | A |
| SCOP | 3,80 |
| Pd | 5,10 |
| Annual energy consumption (CEA) | 1879 kWh |
Cassette Indoor Unit 12000BTU
| Feature | Value |
|---|---|
| Unit dimensions (W x D x H) | 570 x 570 x 260mm |
| Panel size (W x D x H) | 647 x 647 x 50 mm |
| Unit weight | 16.20 kg |
| Panel weight | 2.50 Kg |
| Air filter | R/W type |
| Air flow rate Hi/Mid/Lo | 617 / 504 / 415 m³/h |
| Sound power Hi | 56 dB(A) |
| Sound pressure Hi/Mid/Lo | 41 / 37 / 34 dB(A) |
| Operating range Cooling | 17 ~ 32 °C |
| Operating range Heating | 0 ~ 30 °C |
| Refrigerant lines External diameters Liquid-Gas | Φ6.35 (1/4") - Φ9.52 (3/8") |
| Control system | Infrared remote control |
| Power Supply Voltage/Frequency/Phases | 230 V / 50 Hz / 1 phase |
Cassette Indoor Unit 18000BTU
| Feature | Value |
|---|---|
| Unit dimensions (W x D x H) | 570 x 570 x 260mm |
| Panel size (W x D x H) | 647 x 647 x 50 mm |
| Unit weight | 16.20 kg |
| Panel weight | 2.50 Kg |
| Air filter | R/W type |
| Air flow rate Hi/Mid/Lo | 680 / 560 / 500 m³/h |
| Sound power Hi | 56 dB(A) |
| Sound pressure Hi/Mid/Lo | 44 / 42 / 41 dB(A) |
| Operating range Cooling | 17 ~ 32 °C |
| Operating range Heating | 0 ~ 30 °C |
| Refrigerant lines External diameters Liquid-Gas | Φ6.35 (1/4") - Φ12.7 (1/2") |
| Control system | Infrared remote control |
| Power Supply Voltage/Frequency/Phases | 230 V / 50 Hz / 1 phase |
Trial Outdoor Unit 7.9 kW
| Feature | Value |
|---|---|
| Nominal Cooling Capacity (Min÷Max) | 27,000 (10,200÷29,000) BTU / 7.90 (3.00÷8.49) kW |
| Nominal Heating Capacity (Min÷Max) | 28,000 (7,500÷29,000) BTU / 8.20 (2.20÷8.50) kW |
| Unit Dimensions (W x D x H) | 890 x 342 x 673 mm |
| Unit weight | 48 Kg |
| Nominal Sound Power | 68 dB(A) |
| Nominal Sound Pressure | 58 dB(A) |
| Operating range Cooling (outdoor T.°CBS) | -15 ÷ 50 °C |
| Operating range Heating (T.outdoor °CBU) | -15 ÷ 24 °C |
| Refrigerant Type / GWP | R-32 / 675 |
| Power Supply Voltage / Frequency / Phases | 230 V / 50 Hz / 1 phase |
| Max. eq. length (Total) | 60 m |
| Max eq. length (Each branch) | 30 m |
| Max height difference ODU / IDU | 15 m |
| Max height difference IDU / IDU | 10 m |
| Refrigerant precharge | 1.85 kg / (3x7.5 m) |
| External diameters (ODU) Liquid/Gas | 3 x (Φ6.35 - 1/4") / 3 x (Φ9.52 - 3/8") |
There are no reviews
Data sheet
- Air conditioners: Cassette
- Gas: R32
- Power: 12+18 BTU
- System: Dualsplit
- Room Size: 35m²+55m²
- Energy class: A++
- Series: BOX 2
