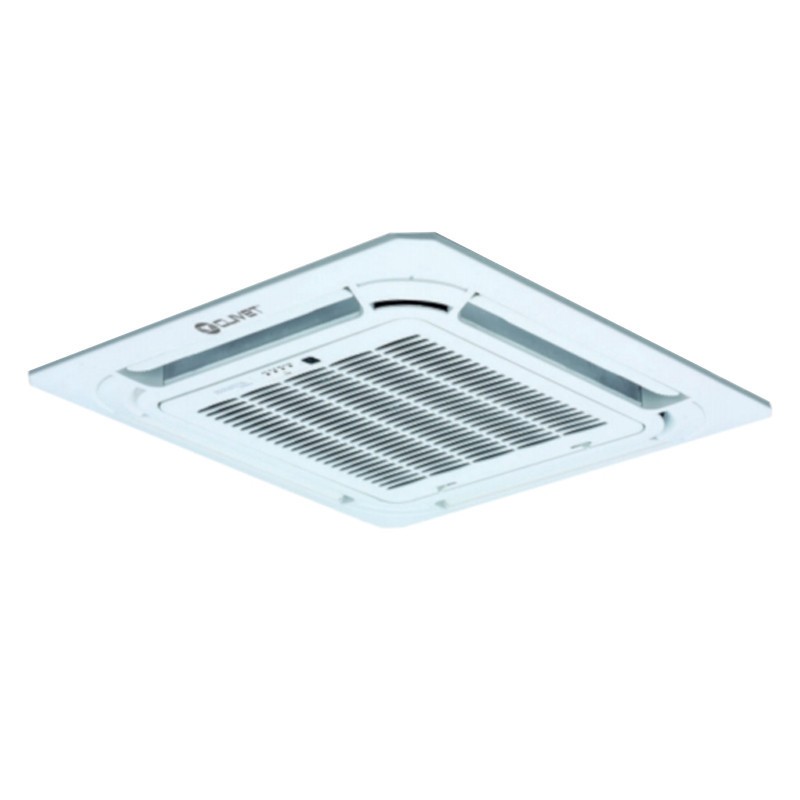

Clivet Box 2 Cassette Air Conditioner 14KW 48000BTU Inverter three-phase
KIT IA3-XY140M

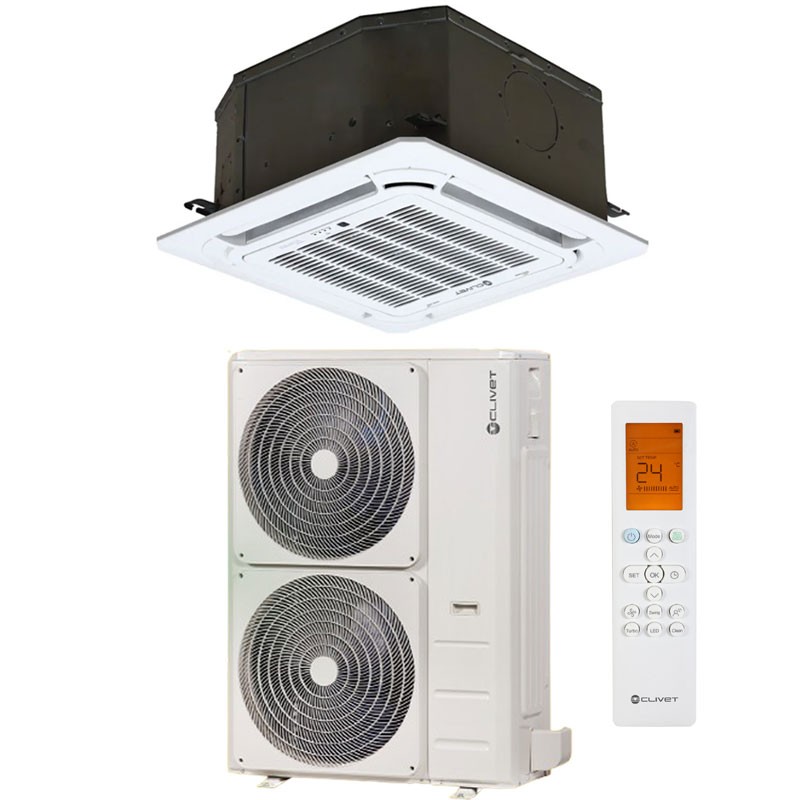

Cassette air conditioner Clivet BOX2 14 kW 48000 BTU Inverter Three-phase R32, class A++/A+, with 4-way indoor unit, 950×950 mm panel, RG10A-D2S-BGEF remote control and integrated condensate drain pump of 1000 mmH₂O, composed of:

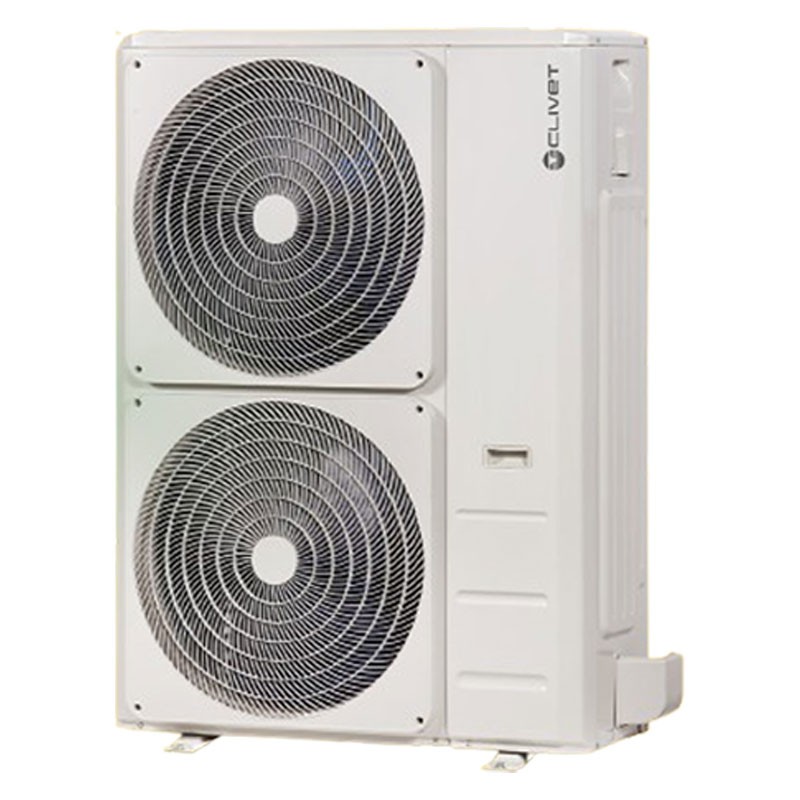

- 1 Mono outdoor unit (item MC4-Y140T)

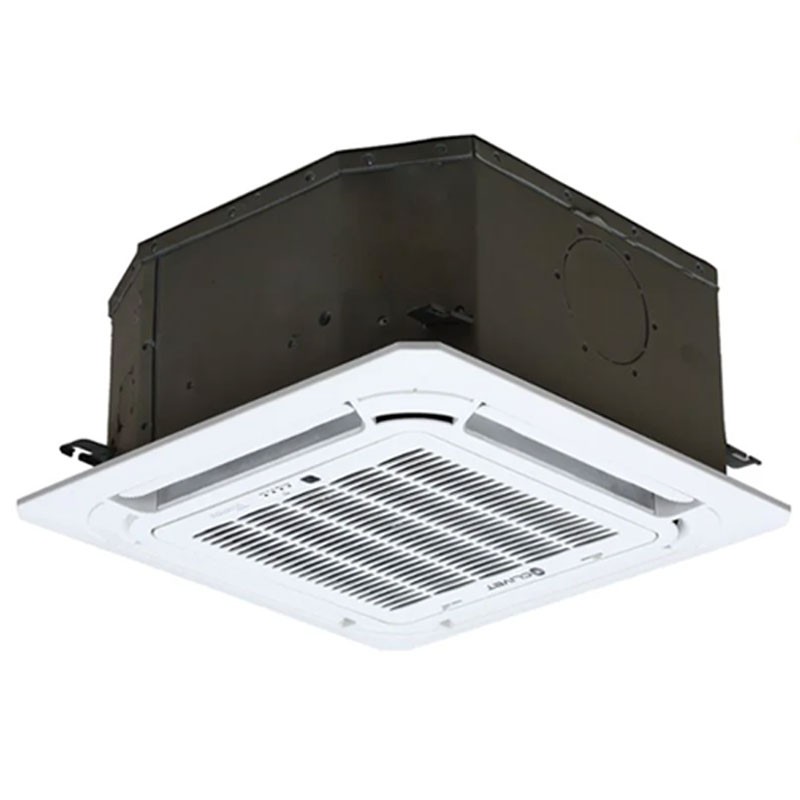

- 1 4-Way cassette indoor unit (item IA3-XY140M)
- 1 Panel grille 950x950 (PEKA00001(IA3-XY)
- 1 included remote control (RG10A-D2S-BGEF).
For a room of approximately 180m²
The air conditioner will be delivered pre-charged with gas R32
The air conditioner is also an heat pump, therefore also suitable for heating environments in winter.
€1,889.97
Items Available: 2
: 1
Air conditioners of the same series
Frequently bought together
- On sale!
Clivet 14 kW: power, comfort, and energy savings in a single solution
The Clivet TRIFASE Inverter 14 kW cassette air conditioner is the ideal choice for offices, shops, restaurants, and large spaces.
Thanks to Inverter technology and the use of low GWP R32 gas, it guarantees high performance, low consumption, and reduced environmental impact. The 4-way design allows for uniform air distribution in every direction, ensuring optimal comfort throughout the environment.
Comfort and intelligent control

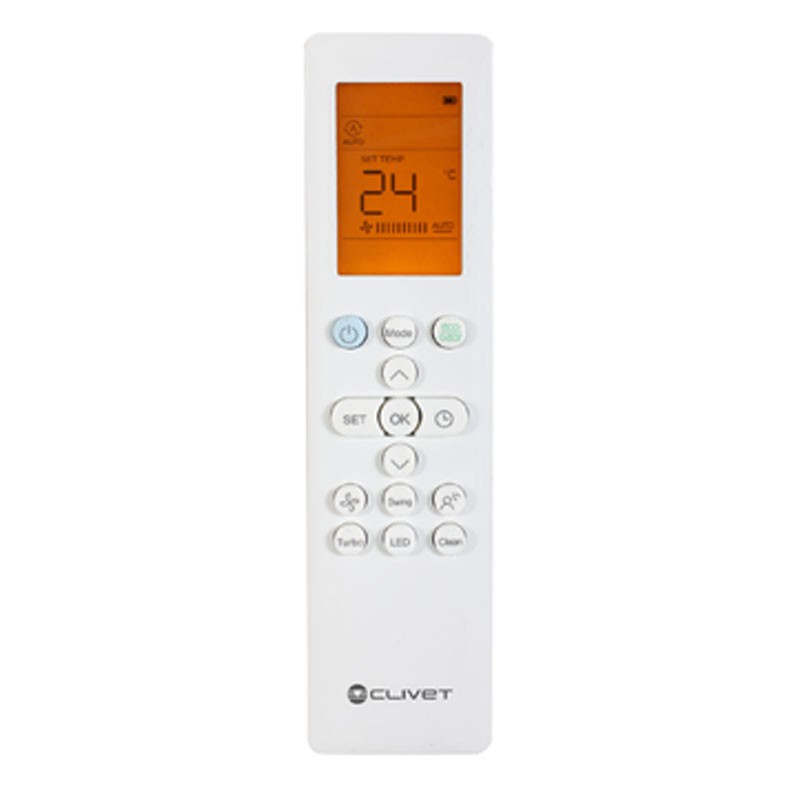

Equipped with the RG10A-D2S-BGEF multifunction remote control, this air conditioner offers a wide range of functions for maximum comfort:
- Follow Me: the temperature is detected by the remote control for personalized air conditioning.
- Turbo: maximum power for rapid cooling or heating
- Sleep Function: optimizes consumption and comfort during rest
- Do Not Disturb: deactivates sounds and display for maximum silence
- Continuous speed adjustment and super silence for a pleasant environment at all times
The system is prepared for external ventilation with 6 speed levels, allowing efficient management of the air flow according to comfort and energy-saving needs.
Reliability and simplified maintenance
Clivet integrates numerous safety and diagnostic functions into the system to ensure operational continuity and longevity:
- Refrigerant leak alarm and automatic self-diagnosis
- Auto defrost and Emergency function to maintain operational continuity
- Condensate drain pump with high head for easy installation
- I-Clean function: automatic cleaning cycle of the indoor unit to prevent mold and bad odors
Energy efficiency and smart functions
In addition to the high energy class A++ in cooling and A+ in heating, the air conditioner features the Gear function, which allows operation at 100%, 75%, or 50% power to reduce consumption.
Temperature compensation corrects detection for constant comfort in every area of the environment.
Compact design and versatile installation
The design of the machine body and the 950×950 mm panel is optimized for standard 90×90 cm false ceilings, making installation simple and harmonious. It includes a fresh air intake, external ON/OFF contact, remote alarm port, louver memory, and Auto Restart function in case of power failure.
Technical characteristics
| COOLING | |
|---|---|
| Nominal capacity (Min/Max) | 48,000 BTU (12,000–54,000) / 14.1 kW (3.5–15.8) |
| Nominal power consumption | 4,650 W (800–5,900) |
| Nominal current consumption (Min/Max) | 8.1 A (1.8–10.2) |
| SEER (Seasonal energy efficiency ratio) | 6.10 |
| Seasonal energy efficiency class | A++ |
| Indicative annual energy consumption | 810 kWh/a |
| Nominal efficiency (EER) | 3.05 |
| HEATING | |
| Nominal capacity (Min/Max) | 55,000 BTU (14,000–59,000) / 16.1 kW (4.1–17.3) |
| Nominal power consumption (Min/Max) | 4,580 W (900–5,500) |
| Nominal current consumption (Min/Max) | 8.0 A (1.9–9.5) |
| COP (Coefficient of performance) | 3.52 |
| SCOP (Seasonal coefficient of performance) | 4.0 |
| Seasonal energy efficiency class | A+ (average climatic conditions) |
| Indicative annual energy consumption | 3,860 kWh/a |
| INDOOR UNIT | |
| Dimensions (WxHxD) | 830 × 830 × 287 mm |
| Weight | 29.3 kg |
| Sound power | 66 dB(A) |
| Sound pressure (Hi/Mid/Lo) | 52.5 / 50.5 / 48 dB(A) |
| Air filter | Washable mesh |
| Air flow rate (Hi/Mid/Lo) | 1700 / 1530 / 1300 m³/h |
| Liquid external diameter | 9.52 - 3/8" |
| Gas external diameter | 15.9 - 5/8" |
| Power supply | 230 V – 50 Hz |
| GRILLE / PANEL T-MBQ4-900 (included) | |
| Type | Panel for Box 2, 360° air delivery, grille with round holes |
| Dimensions (WxHxD) | 950 × 950 × 55 mm |
| OUTDOOR UNIT | |
| Refrigerant gas | R-32 (GWP 675) |
| Dimensions (WxDxH) | 952 × 415 × 1333 mm |
| Weight | 103.7 kg |
| Sound power | 74 dB(A) |
| Sound pressure | 64 dB(A) |
| Power supply | 400 V – 50 Hz – Three-phase (3+1) |
| Operating range (cooling) | -15 ÷ +50 °C (EU) |
| Operating range (heating) | -15 ÷ +24 °C (EU) |
| Liquid external diameter | 9.52 - 3/8" |
| Gas external diameter | 15.9 - 5/8" |
| Maximum height difference (ODU/IDU) | 30 m |
| Refrigerant precharge | 2.9 kg / 5 m |
| Additional refrigerant charge | 24 g/m |
There are no reviews
Data sheet
- Air conditioners: Cassette
- Gas: R32
- Power: 48000 BTU (14 Kw)
- Room Size: 180m²
- Energy class: A++
- Series: BOX 2
