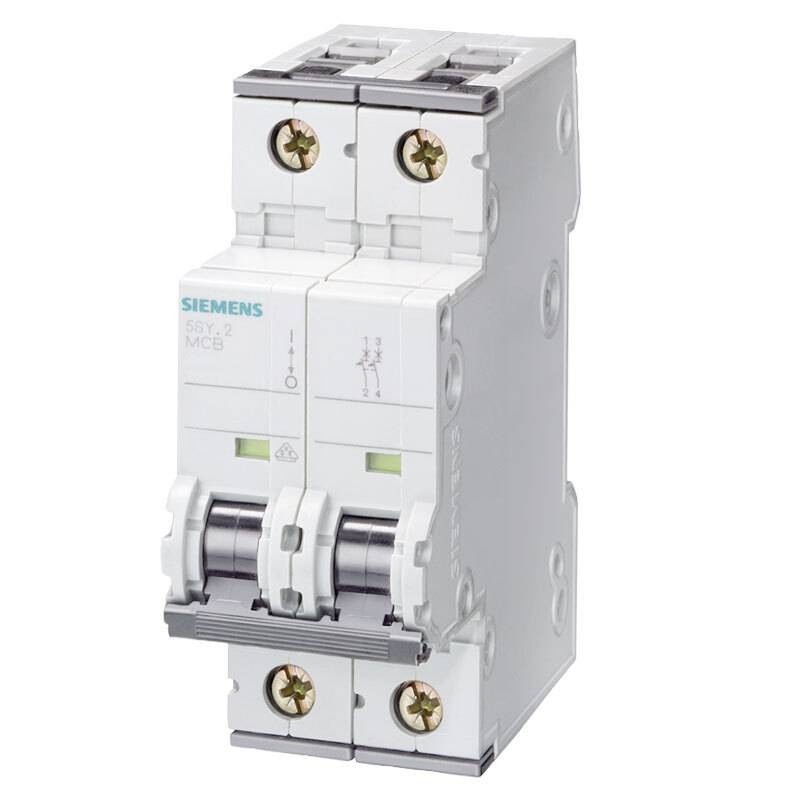

Siemens 2P 32A 15KA Circuit Breaker 2M C 5SY72327
SIE 5SY72327
4001869190952
Siemens 5SY circuit breaker with the following characteristics:
- Number of poles: 2
- Rated current: 32 amps
- Voltage: 400V AC
- Rated short-circuit capacity: 15 kA
- Tripping curve: Curve C (for inductive loads)
- Number of modules: 2
It is suitable for industrial or commercial installations with motors or large electrical equipment. It occupies 2 modules in electrical panels.
€47.62
Items Available: 7
: 2
Frequently bought together
The circuit breaker is a device designed to protect circuits with moderate inductive loads, such as motors or large equipment.
It has an interrupting capacity of 15KA, which is ideal for circuits with inductive loads due to its tripping curve C, which trips when the current exceeds 5 to 10 times the rated current.
The C trip curve of a circuit breaker is designed to protect circuits that handle inductive loads, such as motors, transformers or equipment with high inrush currents.
This curve is triggered when the current exceeds 5 to 10 times the rated value, allowing the system to tolerate temporary current spikes without tripping the device unnecessarily.
It is ideal for industrial and commercial installations, where temporary overload is common at the startup of energy-intensive devices.
Features:
- Number of poles: 2
- Class of trip characteristic C
- Mechanical service life (trip cycles) typ. 10 000
- Overvoltage category III
- Pollution degree 3
- Insulation voltage at maximum DC rating: 440V
- Protection class: IP20, with conductors connected

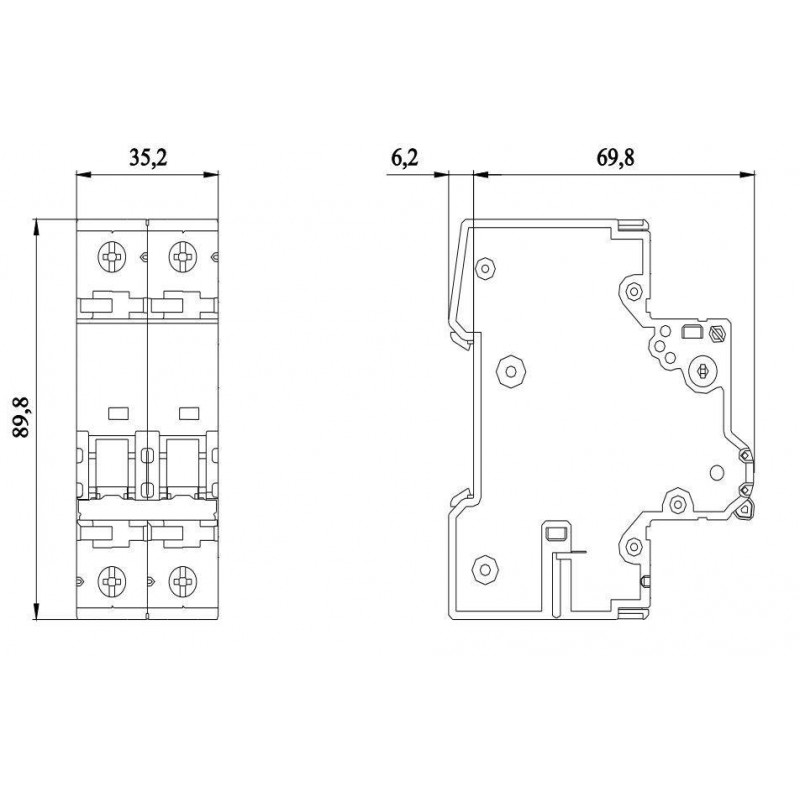

- Height: 90mm
- Width: 36 mm
- Depth 76 mm
- Number of width modular units: 2
- Ambient temperature during operation: -40/+70 degrees
- Ambient temperature during storage: -40/+75 degrees
There are no reviews
Data sheet
- Voltage: 400VAC
- Modules: 2
- Poles: 2P
- Curve: C
- Breaking capacity: 15KA
- Amps: 32A
- Circuit Protections: Circuit breakers
