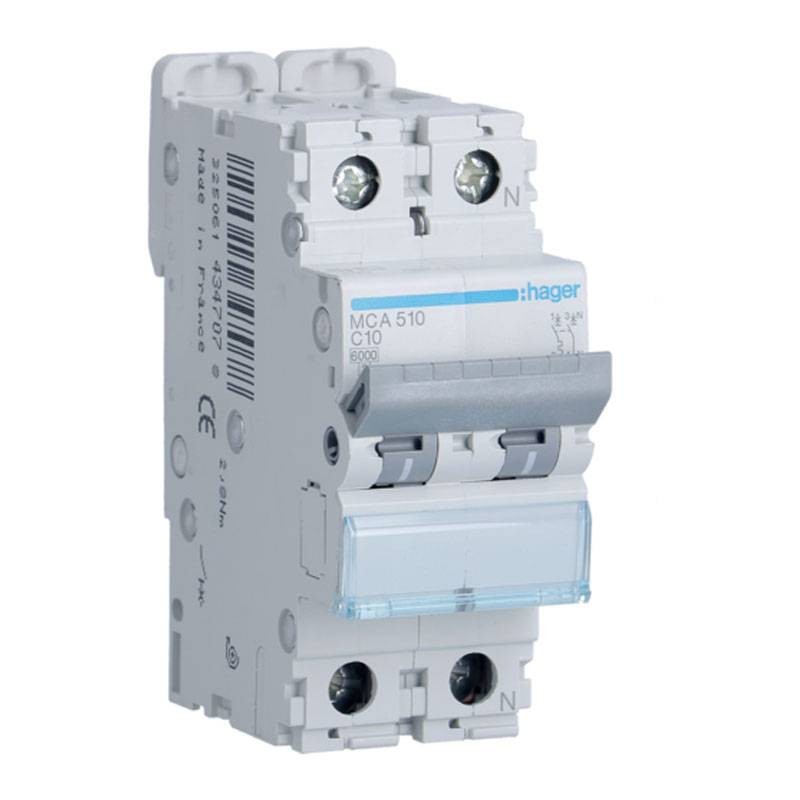

Hager Circuit Breaker 1P+N 10A 6KA 2 Modules Curve C MCA510
HAG MCA510
3250614347078
Hager thermal-magnetic circuit breaker with the following features:
- Number of poles: 1P+N
- Rated current: 10 amps
- Rated breaking capacity: 6 kA
- Number of modules: 2
- Curve C
- Type of supply voltage: AC
- Enclosure degree of protection: IP20
€36.98
Items Available: 57
: 18
A circuit breaker is a safety device that can automatically (i.e., without external intervention) interrupt the flow of electric current in an electrical circuit in the event of an overcurrent.
The C curve, trip threshold of 5 to 10 times In, for application of ohmic-inductive circuits with medium inrush currents. And widely used in domestic systems, residential and functional buildings.
Features:
- Mounting mode DIN rail type O (symmetrical)
- Rated insulation voltage: 500 V
- Rated fault holding current: 6000 V
- Minimum threshold voltage (Ue min): 12 V
- Maximum power dissipated per pole according to product standard: 3 W
- Total power dissipation: 4.13 W
- Power dissipated per pole: 2.1 W
- High connection type for modular products: screw terminal
- Tightening torque: 2.8Nm
- Low connection type for modular products: plastic
- Low connection type for modular products: quickconnect clamp
- Top removal for modular fixtures
- Bottom removal for modular products
- Suitable for flush mounting
- Accessory
- With transparent label holder
- Operating temperature: -25 - +70 °C
- Storage/transport temperature: -25 - +80 °C
- Altitude: 2000m
- Product depth: 70 mm
- Product height: 83 mm
- Product width: 17.5 mm
There are no reviews
Data sheet
- Voltage: 230/240VAC
- Modules: 2
- Poles: 1P+N
- Curve: C
- Breaking capacity: 6KA
- Degree of protection: IP20
- Amps: 10A
- Circuit Protections: Circuit breakers
