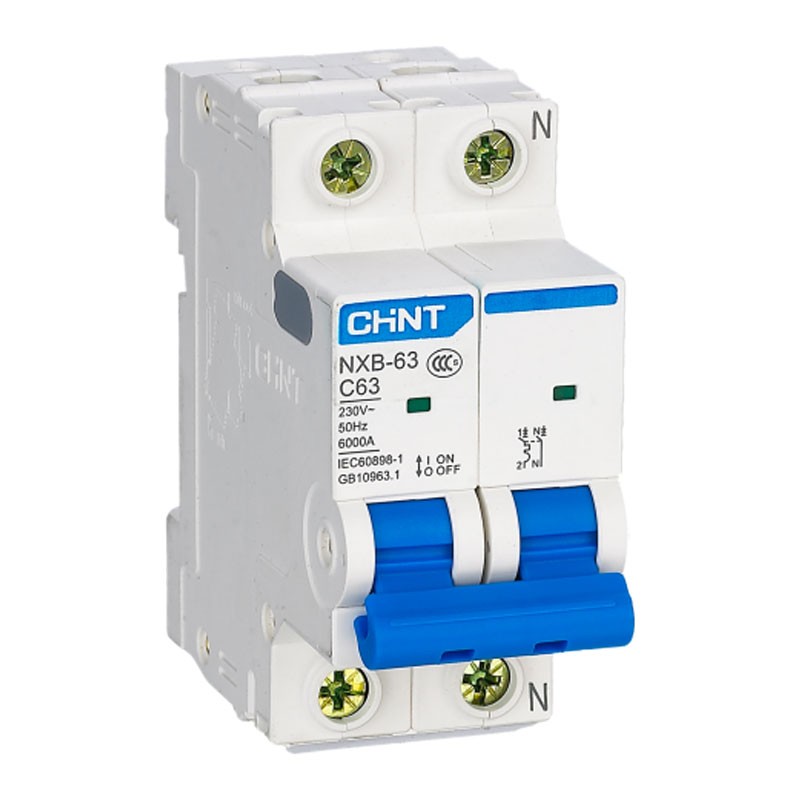

Chint Circuit Breaker NXB-63S 1P+N 16A 4.5kA C 2M 296749

Chint
Chint
CHT 296749 6941716447502

Chint NXB-63S circuit breaker. Ideal for overload and short-circuit protection in residential installations, with the following features:

  • Number of poles: 1P+N

  • Rated current: 16 A

  • Breaking capacity: 4.5 kA

  • Tripping curve: C

  • Rated voltage: 230 V AC

  • Number of Modules: 2

  • Degree of protection: IP20

Do you have questions about this product or did you not find what you were looking for? Ask us!
Chint Circuit Breaker NXB-63S 1P+N 16A 4.5kA C 2M 296749
€6.55
€6.55

€6.55
Tax included
Calculate shipping cost
Items Available: 2
Further availability of the manufacturer
€6.55

Buy it within and receive it from Wednesday, 24 December
Two-year warranty
Easy return within 14 days
Purchase with tax breaks

Are you a professional ?

Request access to

Trustpilot

Frequently bought together

Circuit breaker Chint efficient protection for terminal systems

The circuit breaker is designed to provide reliable protection from overloads and short circuits in low-voltage electrical circuits, particularly in residential and tertiary applications. Thanks to its tripping curve C, it can tolerate inrush currents (such as those from motors or transformers) up to 5-10 times the rated current, preventing unwanted trips.

Compact, standards-compliant design

With standard dimensions and DIN rail mounting (2 modules), this device integrates easily into existing electrical panels. It complies with safety standards and offers impulse withstand up to 4kV, ensuring reliability even in the presence of electrical disturbances.

Expandability and versatility

This model can be accessorized with:

  • AX-X1 series auxiliary contacts (for remote signaling)

  • AL-X1 alarm contacts (for trip alarm)

  • SHT-X1 release coil

  • Minimum voltage coil UVT-X1

  • Not compatible with differential modules

Typical applications

  • Residential electrical systems

  • Distribution boards in commercial environments

  • Terminal systems in light industrial environments

  • Protection of light circuits and outlets from overcurrents

Technical Specifications Circuit breaker Chint

Electrical Data

Number of poles 1P+N
Rated current 16 A
Tripping curve C
Rated voltage 230 Vac
Rated frequency 50/60 Hz
Pulse voltage 4 kV
Interrupting capacity 4.5 kA
Limitation class 3
Power dissipation 3,5 W


Mechanical Characteristics

DIN modules 2 (36 mm)
Degree of protection IP20
Mounting DIN rail
Dimensions 81×36×78 mm (H-L-P)


Compatibility

Compatible accessories AX-X1, AL-X1, SHT-X1, UVT-X1

There are no reviews

Data sheet

Voltage:
230VAC
Modules:
2
Poles:
1P+N
Curve:
C
Breaking capacity:
4.5KA
Degree of protection:
IP20
Amps:
16A
Circuit Protections:
Circuit breakers
