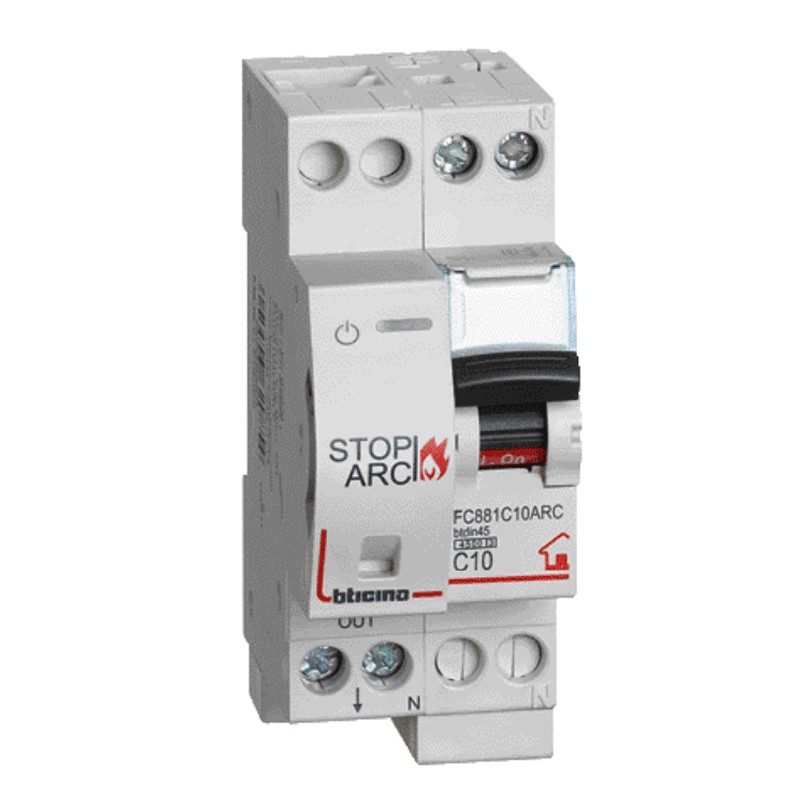

Bticino BTDIN STOP ARC 10A 1P+N 4500A with circuit breaker FC881C10ARC
BTI FC881C10ARC
8005543620854
Bticino BTDIN STOP ARC with magnetothermal arc detection device associated with circuit breaker:
- Voltage 230-240 Vac
- Current In 10A
- Interrupting capacity Icn 6kA
- Modules 2
- Poles 1P+N
- Curve C
€69.01
Items Available: 1
HOW DOES IT WORK? Thanks to a microprocessor, BTicino's STOP ARCs are able to:
- detect both parallel arcs and arcs in series
- distinguish dangerous from non-hazardous arcs.
C-curve, trip threshold from 5 to 10 times In, for application of ohmic-inductive circuits with medium inrush currents. It is widely used in domestic systems.
BTDIN STOP ARC is a one-piece product that is factory assembled. This ensures quality and eliminates the risk of errors during assembly.
BTDIN STO P ARC is very easy to install in the switchboard. It can be mounted in place of a circuit breaker and connected in the same way.
Features:
- 1P+N poles
- 2 Modules
- Magnetic curve C
- Rated current In (A) at 30°C 10A
- Rated short-circuit capacity Icn (kA) 4.5
- Rated voltage Ue (Vac) 230
- Maximum operating voltage Umax (Vac) 250
- Rated insulation voltage Ui (Vac) 400
- Rated frequency (Hz) 50
- Operating temperature (°C) -25÷40
- Max. no. of electrical/mechanical operations 10000/20000
- IP rating (terminals/other zones) IP20/IP40
- Limitation class (CEI EN 60898) 3
- Maximum flexible/rigid cable cross-section(mm2 ) 10/16
There are no reviews
Data sheet
- Voltage: 230/240VAC
- Modules: 2
- Poles: 1P+N
- Curve: C
- Breaking capacity: 6KA
- Amps: 10A
- Circuit Protections: Circuit breakers
