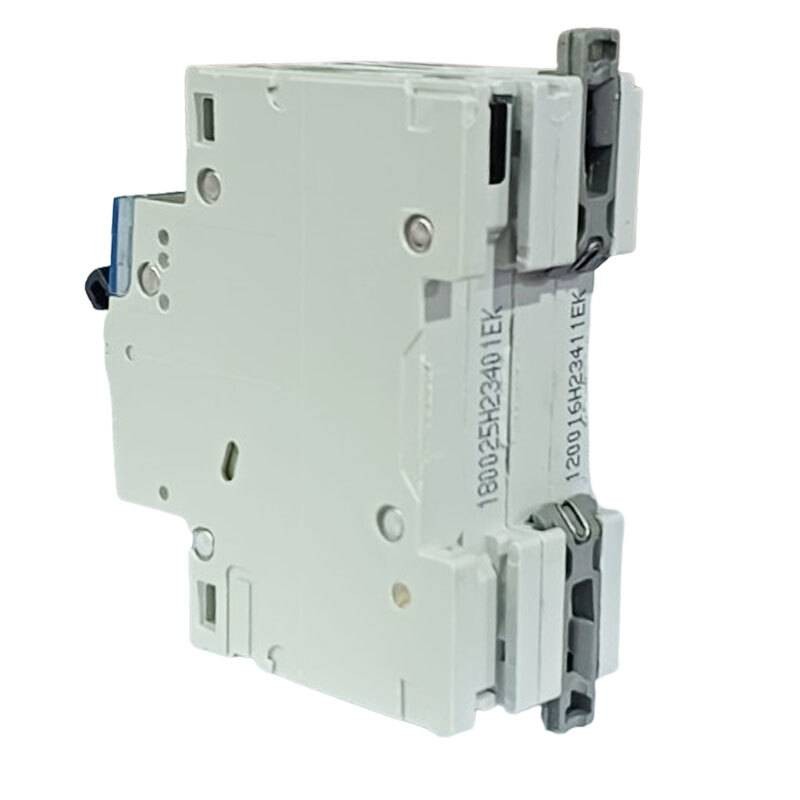

Bticino 16A 1P+N 10kA Circuit Breaker C FH81NC16
BTI FH81NC16
8005543472927
Bticino BTDIN100 modular circuit breaker with the following characteristics:
- Rated current: 16A
- Breaking capacity: 10kA
- Voltage: 230 Vac
- Tripping curve: C
- Number of poles: 1P+N
- Number of modules: 2
- Degree of protection: IP20
€58.54
Items Available: 11
: 10
A circuit breaker is a safety device that can automatically (i.e., without external intervention) interrupt the flow of electric current in an electrical circuit in the event of an overcurrent.
The C-curve can tolerate short-term overcurrents of up to five to ten times the rated current and is widely used in domestic systems.
Features:
- Voltage: 230Vac
- Current In: 16A
- Interrupting capacity Icn: 10kA
- Tripping curve: C
- Modules: 2
- Poles: 1P+N
- Degree of protection: IP20
- Height: 83mm
- Width: 35.6 mm
- Depth: 76 mm
- Maximum cable cross-section: 25/35 sq. mm
There are no reviews
Data sheet
- Voltage: 230VAC
- Modules: 2
- Poles: 1P+N
- Curve: C
- Breaking capacity: 10KA
- Amps: 16A
- Circuit Protections: Circuit breakers
