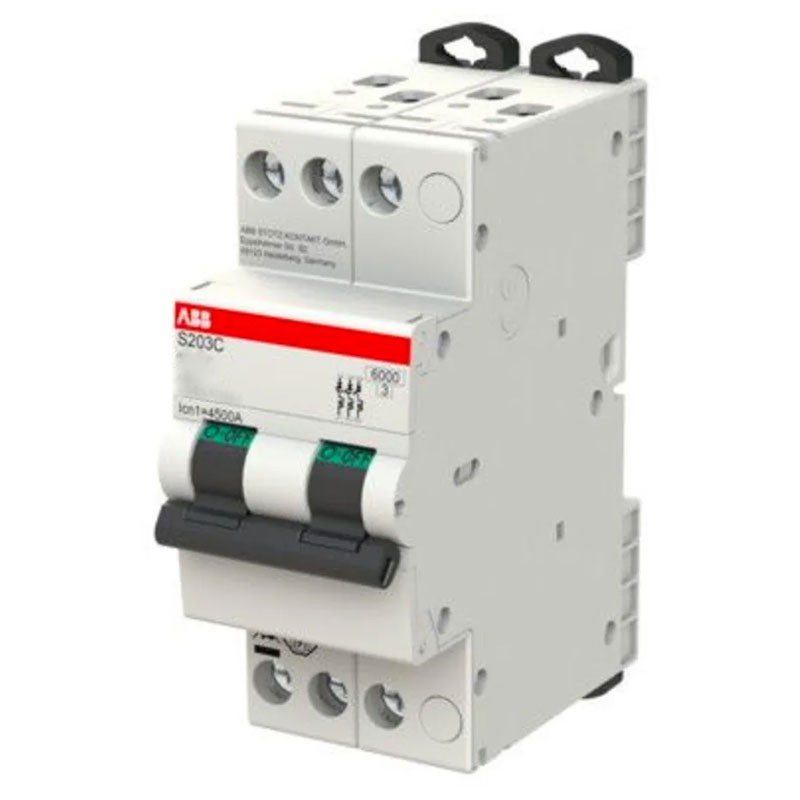

Abb Circuit Breaker 3P 20A 6KA C 2 Modules S203CC20
ABB S203CC20
Abb thermal-magnetic circuit breaker series S203C with the following features:
- Number of poles: 3P
- Rated current: 20 amps
- Rated operating voltage: 415V AC
- Rated frequency: 50 - 60 Hz
- Breaking capacity: 6KA
- Curve C
- Input voltage type: AC
- Number of modules: 2
- Degree of protection: IP20
€81.39
Items Available: 2
: 1
Frequently bought together
A circuit breaker is a safety device that can automatically (i.e., without external intervention) interrupt the flow of electric current in an electrical circuit in the event of an overcurrent. It protects the system from overloads and short circuits, ensuring maximum reliability and safe operation.
Curve C, trip threshold of 5 to 10 times In, for application of ohmic-inductive circuits with medium inrush currents. And widely used in domestic systems.
Features:
- Impulse withstand voltage: 4 kV
- Power loss: 7.6W
- Ambient temperature: In operation -25 ... +55 °C - In storage -40 ... +70 °C
- Pollution degree: 2
- Product width: 36 mm
- Product height: 86 mm
- Product depth: 70 mm
- Product net weight: 320 grams
There are no reviews
Data sheet
- Voltage: 415VAC
- Modules: 2
- Poles: 3P
- Curve: C
- Breaking capacity: 6KA
- Degree of protection: IP20
- Amps: 20A
- Circuit Protections: Circuit breakers
