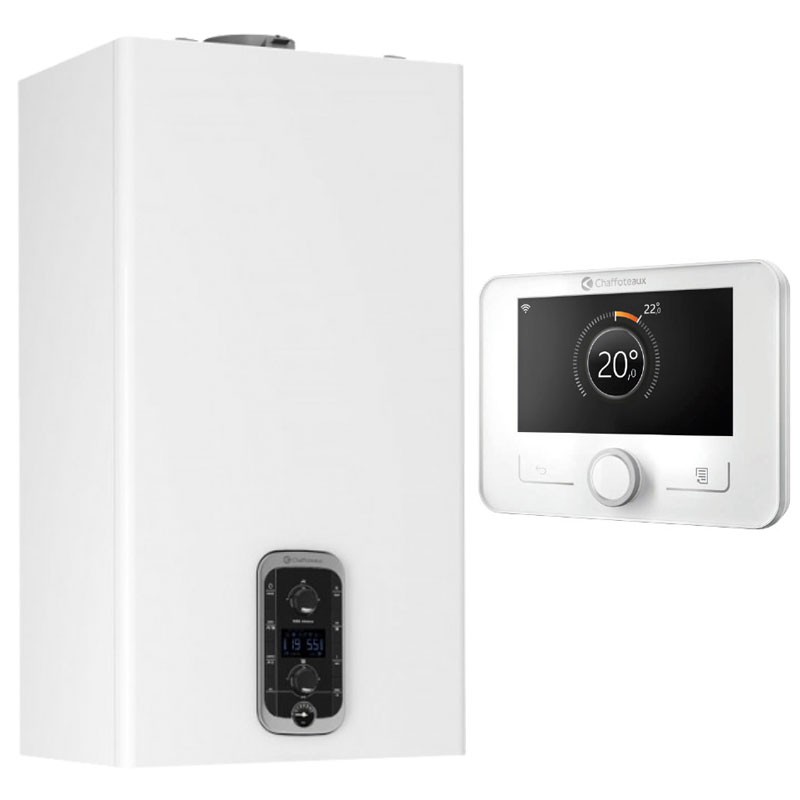

Chaffoteaux Mira Advance Link Gas Condensing Boiler D2 30kW
CFF 3314253
3234090852905
Chaffoteaux Mira Advance Link D2 Gas Condensing Boiler Powerful soul for amazing control.
Equipped with the innovative SpinTech exchanger, it excels in its class with electronic combustion control, integrated Chaffolink connectivity, and allExpert Control and outdoor probe as standard.
Strengths:
- 30 kW power
- Natural gas/LPG/Propane air operation without the need for a kit
- Energy class in heating A+
- Energy class in DHW A
- XL withdrawal profile
- Boiler-integrated connectivity gateway compatible with Google Assistant and Amazon Alexa
Standard accessories:
- Expert HD system manager (code 3319469)
- Boiler-integrated connectivity gateway
Compatible accessories:
- Coaxial exhaust flue kit 60/100 L 1000 3318073.
€1,609.78
Items Available: 1
Frequently bought together
Maximum Spin Tech Performance:
- New single loop stainless steel primary exchanger
- Passage sections increased by 142% over previous version
- 1 m more head
- 94% seasonal efficiency
- Class A+ thanks to standard thermoregulation accessories
- Performance certified by TÜV RHEINLAND Group
Maximum Comfort:
- 1:10 modulation ratio
- New electronic combustion control specifically for D2 models
- SRA function
- Compatibility with natural gas, LPG and propane air without the use of kits
- Chaffolink connectivity integrated into boiler
- External temperature from the internet thanks to integrated connectivity
Ease of installation:
- Installation in partially protected places
- Flue outlet 80, 60, 50 mm and kit for compatibility with positive pressure collective flues (C10)
- Intuitive electrical connections
Energy-saving and environmentally friendly:
- Compatible with mixtures of hydrogen 20% H2
- Low pollutant emissions, NOx Class 6
Features:
- Max/min heating rated heat flow (Hi) Q 28/3.0 kW
- Max/min rated heat flow in heating (Hs) Q 31.1/3.0 kW
- Max/min rated heat flow in DHW (Hi) Q 30.0/3.0 kW
- Max/min rated heat flow in DHW (Hs) Q 33.3/3.3 kW
- Max/min heating output (80°C-60°C) P 27.5/2.8 kW
- Max/min heating output (50°C-30°C) P 30.3/3.1 kW
- Max/min domestic heating output P 28.7/2.9 kW
- Combustion efficiency (at flue gas) 97.8%
- Efficiency at rated heat input (60/80°C) Hi/Hs 98.4/88.6%
- Efficiency at rated heat input (30/50°C) Hi/Hs 108.3/97.5%
- Efficiency at 30 % of Qn with return at 30°C Hi/Hs 109.5/98.6%
- Efficiency at idle (60/80°C) Hi/Hs 94.6/85.2%
- Losses at chimney operating burner 2.1%
- Residual evacuation head Pa 100
- NOx class 6
- Flue gas temperature (G20) (80°C-60°C) 61 degrees
- CO2 content (G20) (80°C-60°C) 8.7%
- CO content (0%O2) (80°C-60°C) ppm 107.0
- O2 content (G20) (80°C-60°C) 4.9%
- Maximum flue gas flow rate (G20) (80°C-60°C) 50.8 kg/h
- Excess air (80°C-60°C) 31%
- Condensate pH 3.2
- Max amount of condensate 3.25 l/h
Heating circuit:
- Expansion tank precharge pressure 1 bar
- Maximum heating pressure 3 bar
- Expansion tank capacity 8 liters
- Min/max heating temperature (high temperature range) 35/82 degrees
- Min/max heating temperature (low temperature range) 20/45 degrees
Sanitary Circuit:
- Min/max DHW temperature 36/60 degrees
- Specific flow rate in DHW (10 min. with ?T=30°C) 14.3 l/min
- Instantaneous quantity of hot water ?T=25°C 17.2 l/min
- Instantaneous quantity of hot water ?T=35°C 12.3 l/min
- Minimum hot water withdrawal 2 l/min
- Max/min domestic water pressure 7/2 bar
Electrical data:
- Supply voltage/frequency V/Hz 230 / 50
- Total electrical power consumption 85W
- Energy efficiency index of circulator EEI ? 0.23
- Minimum ambient operating temperature (-5°C with standard antifreeze heater kit code 3318949) >0 Degrees
- Electrical system degree of protection X5D
- Weight 34.0 kg
- Dimensions: 400x745x385 mm
Connections:
- Plant delivery Ø 3/4 gas
- Sanitary outlet Ø 1/2 gas
- Gas inlet Ø 3/4 gas
- Sanitary inlet Ø 1/2 gas
- System return Ø 3/4 gas.
There are no reviews
Data sheet
- Type: Boilers
- Model: Natural gas/LPG/Propane
- WIFI: Integrated
- Thermal power: 30 kW
- Energy class: A+
- Series: Mira Advance Link
