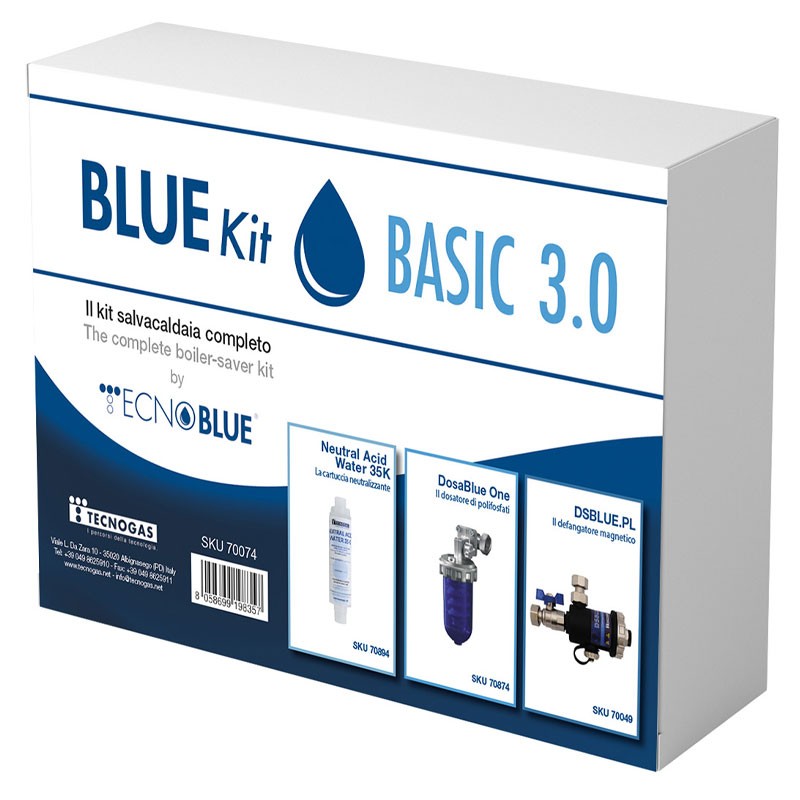

Tecnogas BLUE-KIT BASIC 3.0 Condensing Boiler Saver Kit 70074
TGS 00000070074
8058699198357
Tecnogas Condensing Boiler Saver Kit BLUE-KIT BASIC 3.0 is the solution to all the problems that can decrease the efficiency of your boiler: ferromagnetic residues, sludge residues, acid condensates, limestone and even corrosive or encrusting elements.

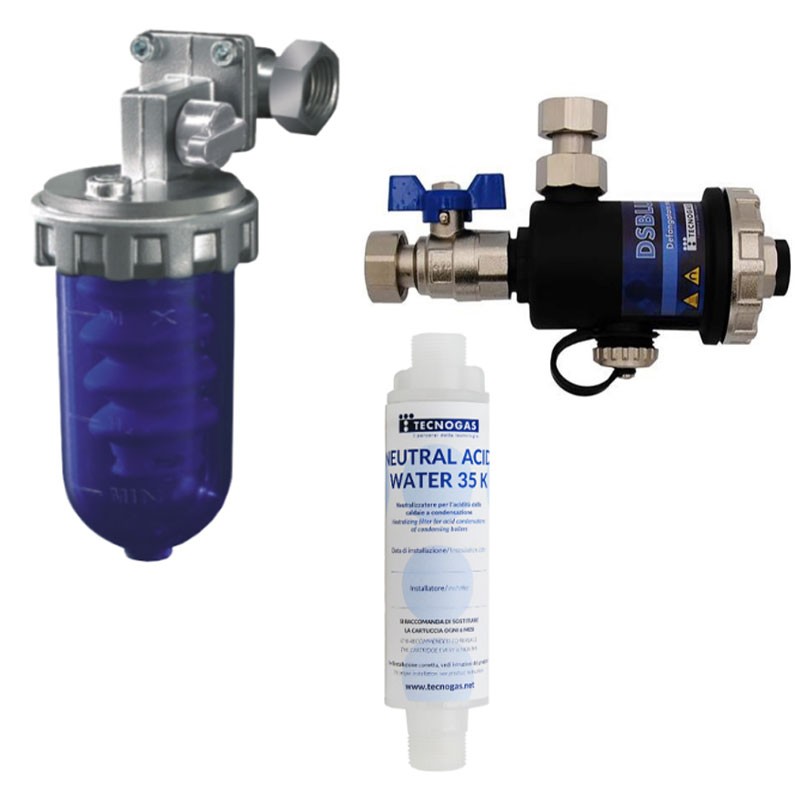

The version contains:
-
1 piece Magnetic defuser TMAG.PL (part no. 70049)
-
1 piece Polyphosphate dosing unit, DosaBlue bypass version (part no. 70874)
-
1 piece Neutralizing cartridge NeutraAcid Water (part no. 70894)
€73.20
Items Available: 46
: 2
Complete solution to protect your condensing boiler
The Tecnogas BLUE-KIT BASIC 3.0 Boiler Saver Kit is an effective protection against the main enemies of modern boiler efficiency: sludge, metal residue, acid condensation, limescale and scale. Consisting of three synergistic components, it is the ideal choice for extending the service life of the thermal system and maintaining its high efficiency over time.

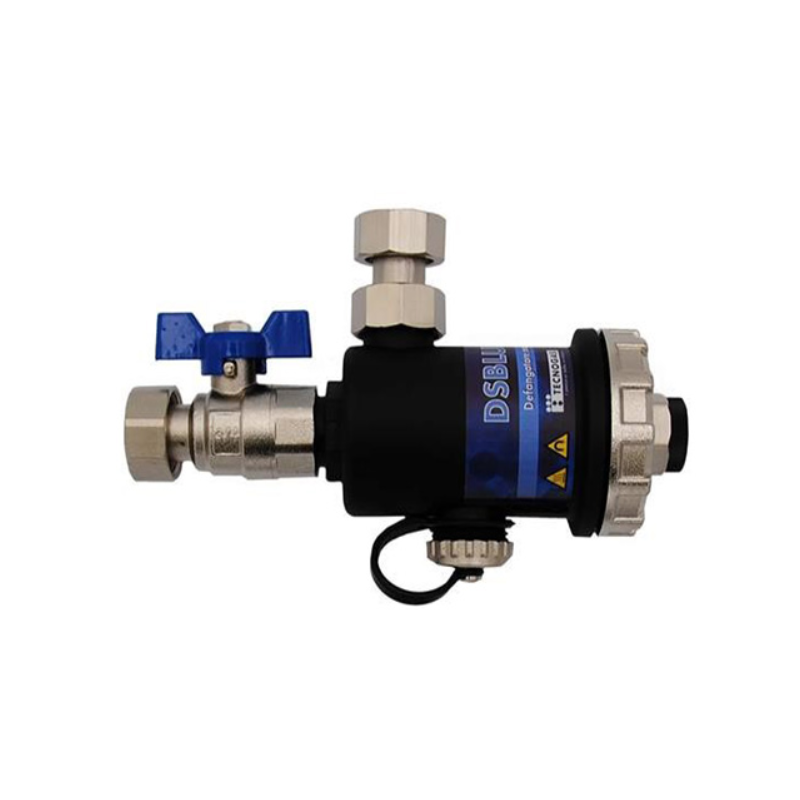

TMAG.PL The high-performance magnetic sludge separator.
The heart of the filtration system is the TMAG.PL magnetic defangator (No. 70049), equipped with a powerful 11000 Gauss magnet and a stainless steel filter mesh with a filtration degree of 800 microns. This device effectively removes sludge, sand and ferrous particles in the system, protecting the heat exchanger and the most delicate components of the boiler.
-
Versatile installation: horizontal or vertical
-
Maximum flow rate: 5.4 m³/h
-
Working temperature: 0-90°C
-
3/4-inchconnections

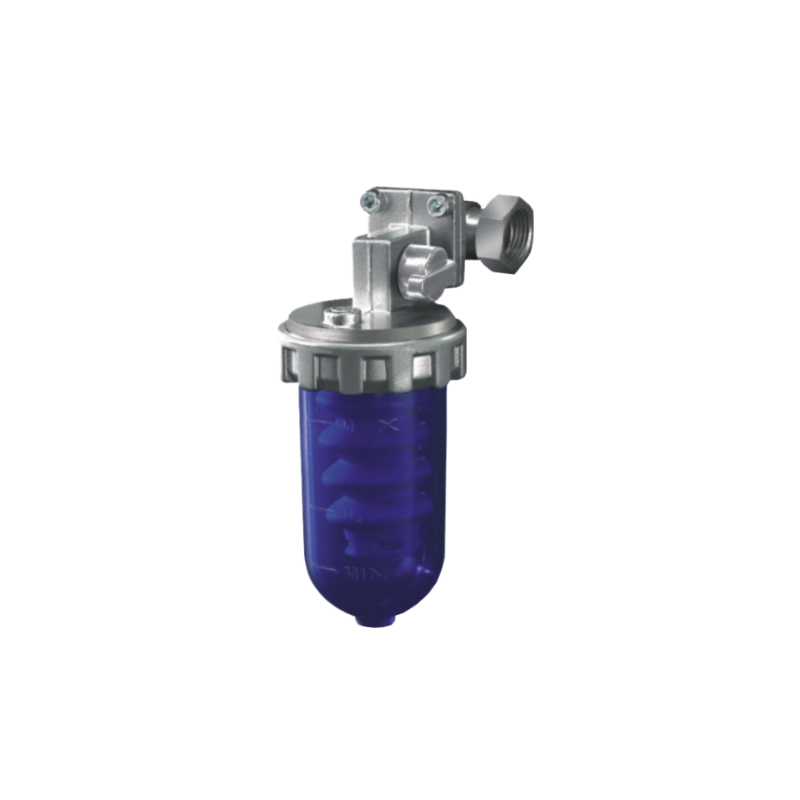

DosaBlue ONE Dosing unit with bypass against limestone
The DosaBlue ONE polyphosphate dosing unit is designed to counteract scale formation and keep the hydraulic circuit clean. The built-in bypass and 1/2-inch quick couplings make it practical to install even in small spaces.
-
Max pressure: 8 bar
-
Max temperature: 45°C
-
Autonomy: 12-15 m³ of treated water
-
Pressure drop: 0.2 bar

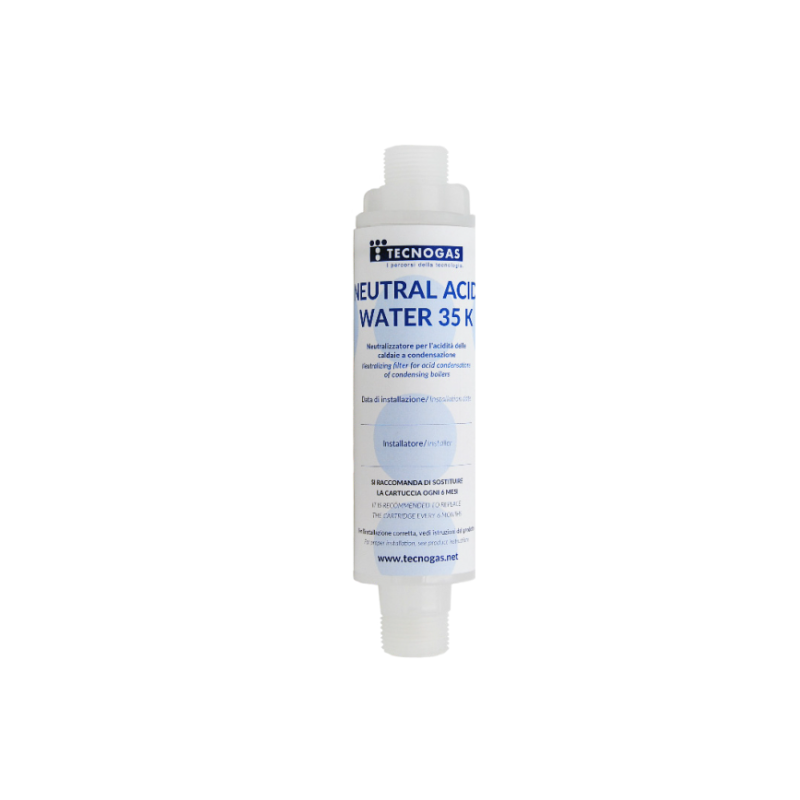

NeutralAcid Water 35K Acid Condensate Neutralization
The NeutralAcid Water 35K neutralizing cartridge is designed for condensing boilers up to 35 kW. It neutralizes acid condensates produced during boiler operation, preventing corrosion and damage to piping.
-
Biodegradable and environmentally sustainablecomposition
-
Disposablecartridge included
-
Reusablecontainer
-
Easy to replace and environmentally friendly
Applications and benefits of the kit
The BLUE-KIT BASIC 3.0 is the ideal solution for those who want to optimize the performance of their condensing boiler and reduce long-term maintenance costs. The combined use of the three devices makes it possible to address all major issues related to water quality and condensate corrosivity, ensuring maximum efficiency, safety, and durability of the system.
It is particularly recommended when installing a new boiler or as an improvement work on existing systems.
Technical Specifications Tecnogas Condensation Boiler Saving Kit
| Defanger | |
| Model | TMAG.PL (Code 70049) |
| Magnet | 11000 Gauss |
| Degree of filtration | 800 microns |
| Connections | 3/4 inch |
| Operating temperature | 0/90 degrees |
| Maximum pressure | 3 bar |
| Flow rate | 5.4 m³/h |
| Dispenser | |
| Model | DosaBlue ONE (Code 70874) |
| Connections | 1/2 inch with by-pass |
| Maximum pressure | 8 bar |
| Maximum temperature | 45 degrees |
| Autonomy | 12 - 15 m³ |
| Pressure drop | 0.2 bar |
| Neutralizer | |
| Model | NeutralAcid Water 35K (Code 70894) |
| Compatibility | Boilers up to 35 kW |
| Refill | Biodegradable included |
| Container | Reusable |
There are no reviews
Data sheet
- Type: Boiler saver kit
