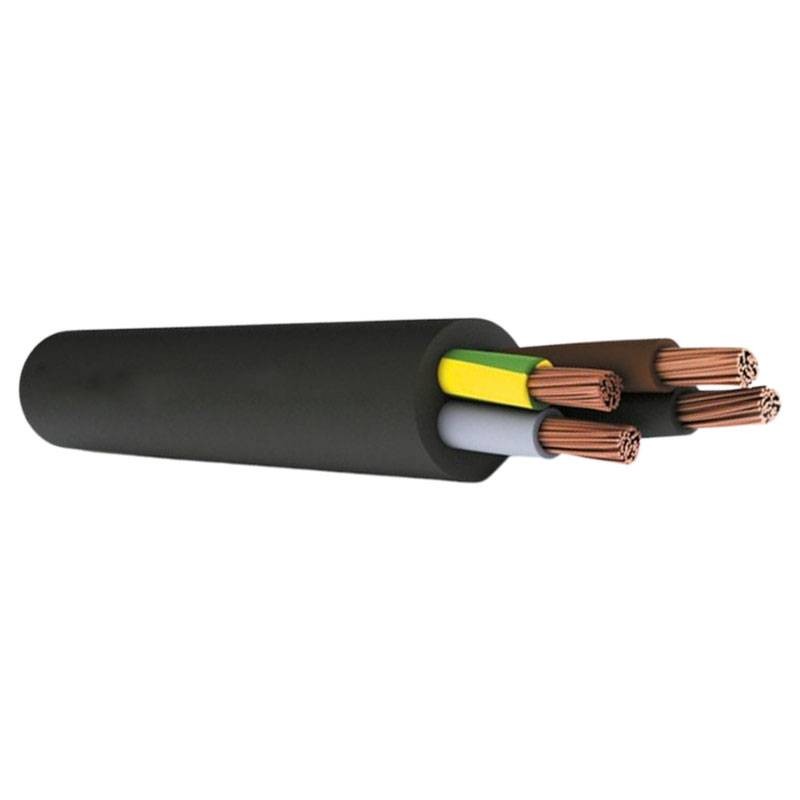

Polychloroprene Sheathed Cable H07RN-F 4x1 mmq G/V 100m Black

Brand: Cavi

Code: 9X9 H07RNF4G1M EAN:

H07RN-F 4x1 sq mm polychloroprene sheathed cable with the following characteristics:

Conductor diameter: 1.3 mm
Insulation thickness: 0.8 mm
Sheath thickness: 1.5 mm
Outer diameter: 11.9mm
Max. electrical resistance at 20°C: 19.5 ohm/km
Color: Black

Sale price is intended per meter. Purchasable only in skeins of 100 meters.

The producers of our cables are:

Baldassari cavi
Icel
La Triveneta
Prysmian

The delivery of the cable from one manufacturer rather than another is dictated by the availability of the moment. All our cables comply with the relevant legal regulations.

The right of withdrawal does not apply to this product as the cables are cut according to your personal specifications.

Depending on the length and/or diameter of the cable, transport may require the use of reels. This option involves an additional cost, which will be communicated upon completion of the order according to specific requirements.

Polychloroprene Sheathed Cable H07RN-F 4x1 mmq G/V 100m Black

€1.12

€1.12
Tax included

Calculate shipping cost

Out of stock

Further availability of the manufacturer

Two-year warranty

Purchase with tax breaks

Are you a professional ?

Request access to

Description

Flexible power cable, rubber insulated with polychloroprene (neoprene) sheathing. Good resistance to mechanical stress, good resistance to mineral oils and greases, chemical and weathering agents. Flame retardant.

Features:

Rated voltage Uo/U: 450/750 V AC (600/1000 V DC).
Maximum operating temperature: 60°C (up to 85° C for fixed and protected installation)
Minimum operating temperature: -40°C (in the absence of mechanical stress)
Minimum installation temperature: -25°C
Maximum short-circuit temperature: 200°C
Maximum tensile stress (recommended): 15 N/mm2 section of copper for mobile laying; 50 N/mm2 section of copper for fixed laying
Minimum bending radius: 6 times the cable diameter for mobile laying; 4 times the cable diameter for fixed laying

Conditions of use: For installation in dry or damp, or wet rooms, in free air, in workshops with explosive atmosphere. For connections subject to average mechanical stresses: e.g., industrial or agricultural workshop equipment, large kettles, heating plates, portable lamps, electric tools such as drills, circular saws, household electric tools as well as transportable motors or generators at construction sites or agricultural installations, etc.; also for fixed installations e.g., on floors and shelves of temporary construction sites and barrack housings; for connections of construction elements of lifting apparatus, machines, etc. Use is permitted up to 1000 V in case of protected fixed installation (within pipes or equipment) as well as for rotor connections of motors for lifting apparatus. Underground installation is permissible only with protection from damage hazards. For laying and installation operations, it is recommended not to exceed the tensile stress of 5 k g x mm² of the sum of the conductor cross sections. Use is not recommended for connections of equipment or machinery subject to continuous movement for which festoon feeding or by means of cable winding drums is required.
