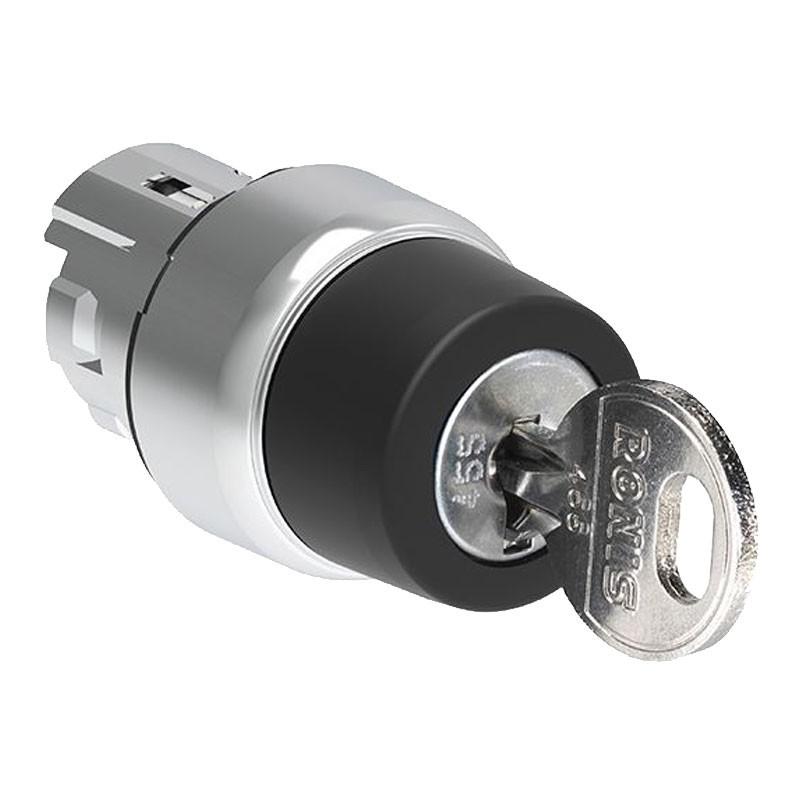

Platinum lovato key switch 3 positions 1-0-2 LPSS330
LOV LPSS330
8013975272107

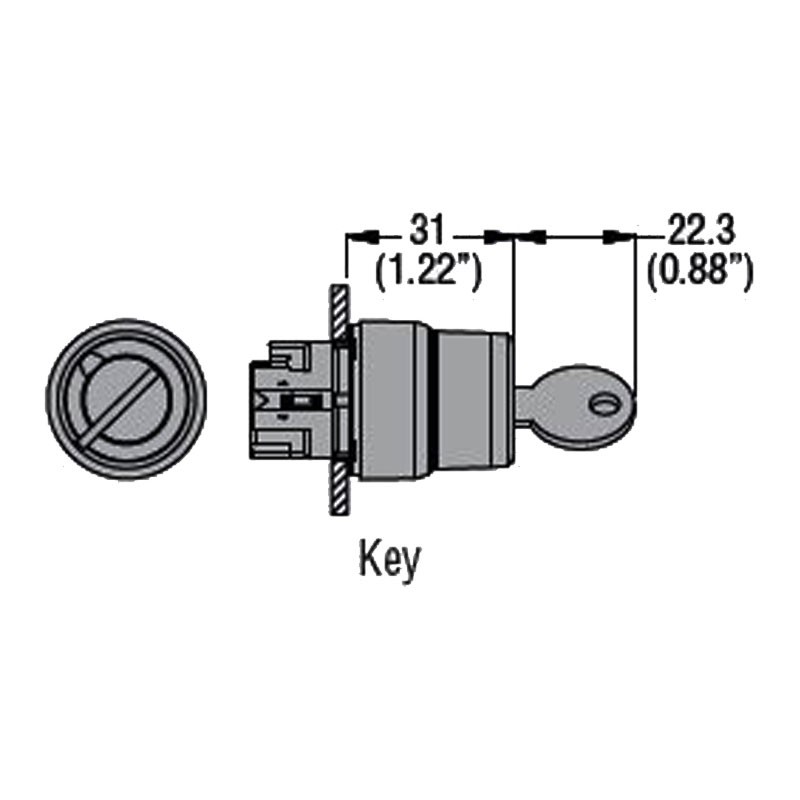

Key selector lovato Platinum 3 positions 1-0-2, diameter 22 mm.
Type of positions 0 - 1 - 2, key extraction in 0
Fixing base LPXAU120M to be purchased separately.
€26.27
Items Available: 9
Frequently bought together
Features:
- Type positions 0 - 1 - 2, key extraction in 0
- Material Aluminum and zinc alloy
- Degree of protection (IEC) IP66, IP67 and IP69K
- Mechanical life cycles 1000000
- Without fixing base
- Fixing base LPXAU120M not included
- Degree of protection (UL) Type1, 2, 3R, 4, 4X, 12, 12K
- Operating temperature min °C -25 - max °C +70
- Storage temperature min °C -40 - max °C +85
- Classification ETIM 8.0 EC002611 - Control switch.
There are no reviews
Data sheet
- Type: Key switches
- Degree of protection: IP67
